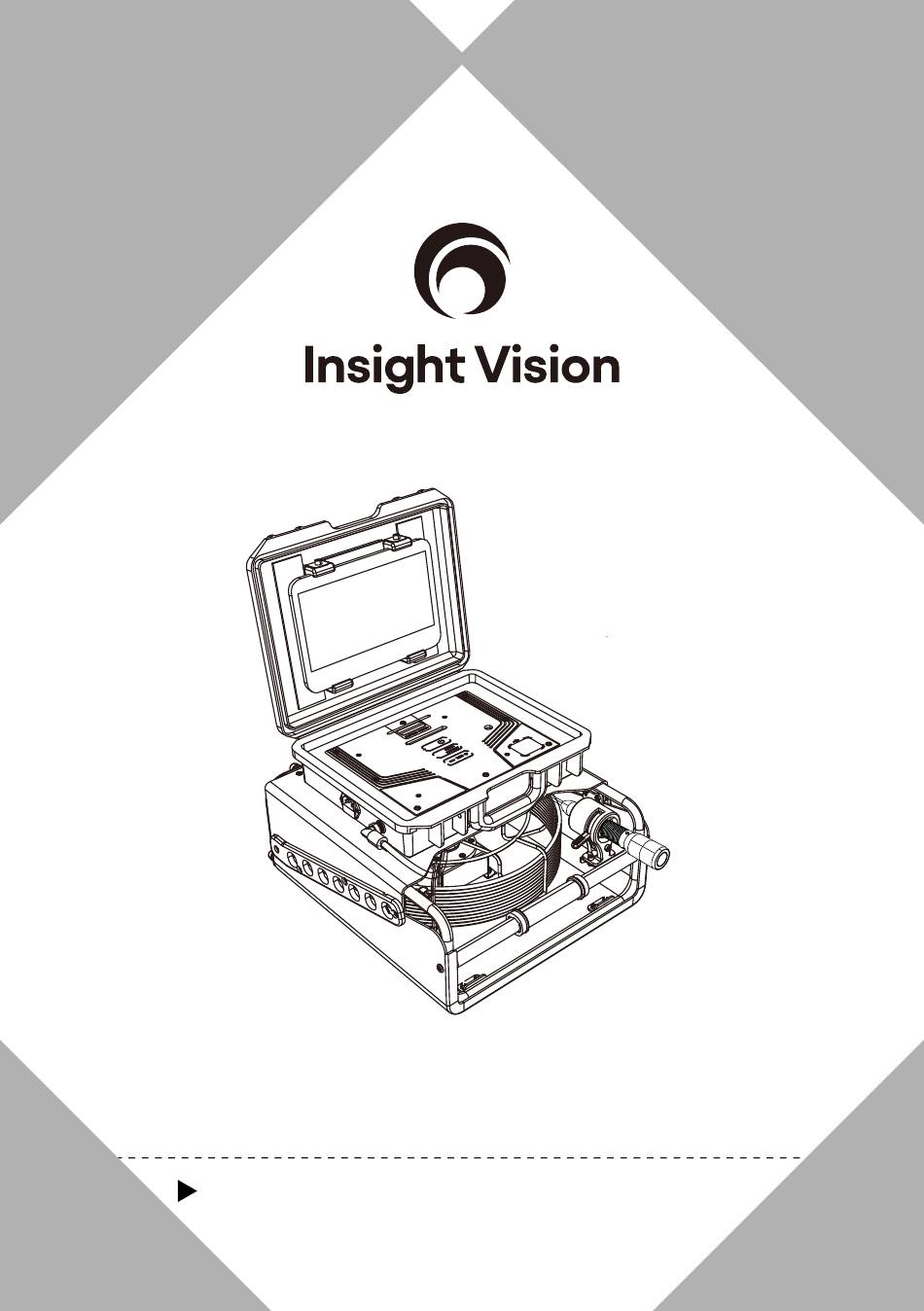

- Page 1 PRODUCT MANUAL TRAVELER LITE Read this manual carefully before operating this system...
- Page 2 WARNING 1. Never use this device in an environment with explosive materials such as GAS, OIL, ETC. 2. Avoid using the device in extremely cold, hot or humid environments; otherwise it may damage the device. Do not drop or press hard on the device. 3.
-
Page 3: Table Of Contents
Product List ..............................1 Speci cations ............................. 2 23mm Camera Head..........................3 Parts & Accessories ..........................4 Traveler Lite ..............................4 Control Box (64070014IV) ........................5 Rail assembly, control box (64070034) ..................5 Control Box (inside) ..........................6 Tablet holder, TL (64070033) ......................7 Battery holder, TL (64070017) ...................... -
Page 4: Product List
Product List (1) Traveler Lite unit (2) 23 mm camera head with/without self-leveling (3) AC power cord (4) Centering guide (5) Testing cord . 1 . -
Page 5: Specifications
Specifications Item Description YBG 18650-2S3P, 7500mAh, 7.4V, 55.5Wh Battery（In the case） Battery Life up to 8 hours Cable Length 40M (130FT) Camera Light Built-in White LED lights (9 pcs) Camera Angle-of-View 120° Camera Image 976 (H) x 504 (V) System Operating Temperature -70°F to +130°F Application: 1. -
Page 6: Speci Cations
23mm Camera Head (with/without self-leveling) Working environment Temperature: -70°F～+130°F Technical speci cations (3) Light Source： (1) Power input: DC 9~13V, 13W（max） 1） LED quantity: 9 pcs (2) Camera module: 2） LED brightness: 200LM 1） Image sensor: 1/3 inch CMOS 3） LED current: 0~200mA 2）... -
Page 7: Parts & Accessories
Parts & Accessories Traveler Lite Item Part Number Description Qty. 64070014IV Control box, TL 64070024 Metal cover, upper body, TL 64070025 Lower body cover assembly 64070012 Handle, TL Camera head, 23mm w/ SL, TL 64070006IV 64070007 Camera holder, TL 64070010... -
Page 8: Control Box (64070014Iv)
Control Box (64070014IV ) Item Part Number Description Qty. 64070030IV Decal, control box, TL 64070020 AC receptacle, TL 64070029 Aviation connector, control box, TL 64070034 Rail assembly, control box, TL Rail assembly, control box (64070034) Philips Flat M5×12 Philips Flat M5×10 . -
Page 9: Control Box (Inside)
Control Box (inside) Item Part Number Description Qty. 64070030IV Decal, control box, TL 64070033 Tablet holder, TL Your tablet or smart device 64070015 Control panel assembly w/ PCBA, TL 64070016 Control panel stand, TL 64070018 Vertical bar, control box, TL 64070019 Horizontal bar, control box, TL 64050035... -
Page 10: Tablet Holder, Tl (64070033)
Tablet holder,TL (64070033) Philips Pan M1/4 -20×5/16, 4 pcs Hex Nut M3, 4 pcs Hex M4×6, 4 pcs Battery holder, TL (64070017) Philips Pan M4×8 Philips Pan M4×8 . 7 . -
Page 11: Control Panel Assembly With Pcba (64070015)
Control Panel Assembly with PCBA (64070015) Philips Flat M4×10, 8 pcs Item Part Number Description Qty. 64070003 Control panel assembly, TL 64070004 Wi-Fi Antenna, TL 64070001 Interface board, TL 64070002 Video processing card, TL 64060036 Cable, USB A to USB B, 100MM Upper Body Cover Assembly (64070024) Oval Head M4×8 Philips Flat M5×12... -
Page 12: Lower Body Cover Assembly
Item Part Number Description Qty. 64070024 Metal cover, upper body, TL 64070031 Locking knob, control box, TL 64070011 Cable guide, TL 64070034 Rail assembly, control box, TL Lower Body Cover Assembly Philips Flat M5×12 Philips Flat M5×12 Philips Flat M5×12 Item Part Number Description... -
Page 13: Metal Cover, Lower Body,Tl (64070025)
Metal cover, lower body, TL (64070025) Philips at M5×12 with screw nut M5 Foot , TL (64070022) with philips pan M4×16 Handle TL (64070012) Flat Hex M6×35 Flat Hex M6×35 . 1 0 . -
Page 14: Camera Holder Tl (64070007)
Camera Holder TL (64070007) Oval Head M5×10 Cable reel w/cable and slip ring, TL (64070010) 3 (Oval Head M4×12) 3 (Nut M4) Philips Pan M3×12 3 (Washer M6) 4 pcs 3 (Nut M6) M5X10, 6 pcs Item Part Number Description Qty. -
Page 15: Cover Bars Tl (64070023)
Cover bars TL (64070023) Philips Flat M5×12, 4 pcs Philips Flat M5×12, 4 pcs Accessories Item Part Number Description Qty. 64070035 Centering guide, TL 64020010 AC power cord, 118" - Red 64070028 Test cord, TL 64070036 Centering guide, non SL, TL . - Page 16 CONTACT US 600N. Dekora Woods Boulevard Saukville, WI 53080 www.goinsightvision.com (262)268-9330...
