Summary of Contents for Insight Vision IRIS

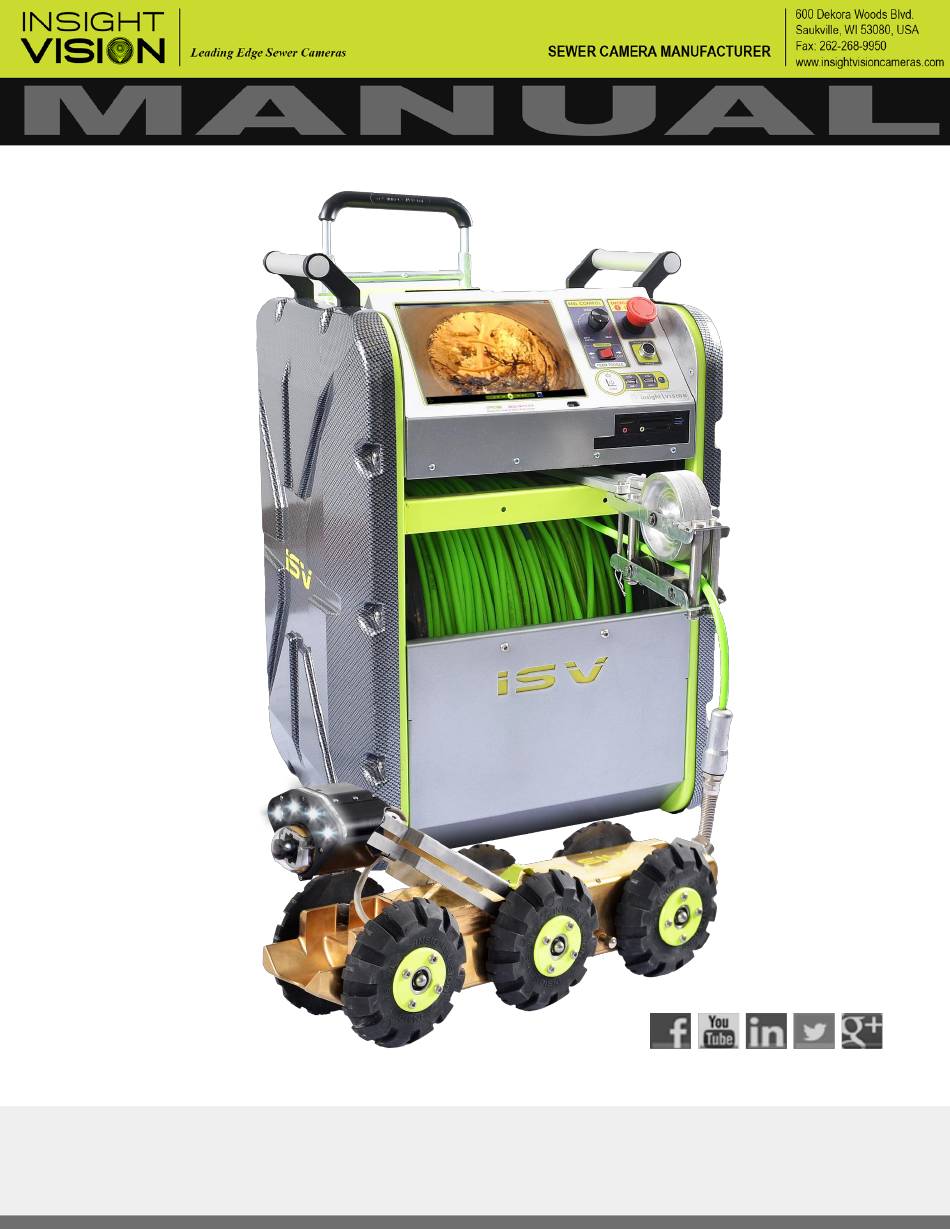

- Page 1 FOLLOW, LIKE AND WATCH IRIS MAINLINE CRAWLER Integrated Remote Inspection System...
- Page 2 Do not force the equipment. Do not allow inexperience operator to use the equipment. Maintain equipment and use only accessories that are recommended by the manufacturer. If you need to contact customer service. For immediate assistance, contact Insight Vision. Phone: 800-488-8177 Fax:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty .....................2 System Overview ................3 System Package ................6 System Power-Up ................7 Motorized Reel Control ..............8 Crawler Pendant Control ..............9 Control System App ................ 10 System Recording ................11 On Screen Display App ..............14 Technical Specifications .............. -
Page 4: Warranty
Insight Vision warrants to the original purchaser that should any of its products prove to be defective in material or workmanship in normal use, within one (1) year from the date of delivery, Insight Vision will, at its exclusive option, repair, replace or exchange the product or any of its parts. -
Page 5: System Overview
USB memory stick. The crawler is designed to inspect sewer pipes from 6” to 12” (Up to 18” with additional wheelset). A built-in sonde is optional which can transmit a frequency that is locatable with a 512 Hz locator. The IRIS portable mainline crawler also comes with a free downloadable mobile streaming app for Apple ™... - Page 6 One (1) year warranty. Therefore we are strongly recommending that all systems be maintained according to the following procedures. Please be advised that IRIS mainline crawler will not allow warranty coverage for these items if these procedures are not followed.
- Page 7 System Features: The Integrated Remote Inspection System is a compact & portable unit that incorporates a motorized/self-propelled robotic crawler, motorized drum for rewind of the cable, pan and tilt camera head, 10” touch-screen, multiple recording options and operates on Windows™ compatible apps. Standard inspection range is from 6”...
-
Page 8: System Package
System Package: What’s Included: PORTABLE USER MANUAL MOTORIZED REEL (w/ extendable rear handle) PAN & TILT CRAWLER 120V POWER CABLE CRAWLER CONTROLLER SMALL & MIDI WHEEL SET (installed) LCD REMOTE (touch screen monitor) ... -
Page 9: System Power-Up
System Power-Up: Follow these steps before powering up the system. 1. Plug in your power cable in the back of the system with external power outlet. 2. Plug in the crawler controller into the specified USB port. 3. Connect the crawler to the mainline cable receptacle. 4. -
Page 10: Motorized Reel Control
Motorized Reel Control: Read these steps before powering up the system. Front Control Panel: 1. ON/OFF Power Button – Turn on the system 2. Video Monitor IR Sensor – Change brightness on the LCD Monitor 3. USB Ports – To connect to external devices 4. -
Page 11: Crawler Pendant Control
Crawler Pendant Controls: 1. Tractor Speed Control 2. Camera Light Control 3. Pan Control 4. Tilt Control 5. Drive Control The process to drive the crawler back you will also need to use the motorized reel front control panel. Please follow the direction to properly drive your crawler forward and back. 1. -
Page 12: Control System App
Control System Apps: Read these steps before starting your inspections. System Control Apps: CAMERA APP: Launches your crawler camera video and take snapshots. PORTABLE PLAYER: Plays back your inspection videos. ON SCREEN DISPLAY (OSD): On screen text writer and data entry for your video inspections. ... -
Page 13: System Recording
System Recording: Follow these steps before starting your inspections. 1. Open up the CAMERA app by double-clicking the icon. 2. Three (3) apps will launch simultaneously. The CAMERA, Record MP4, and the OSD App. Notice: Some Apps maybe hidden behind other apps when launched, simply click and drag to rearrange accordingly. - Page 14 System Recording: Follow these steps before starting your inspections. 1. The location and name of the video clips can be changed by typing in to the File name field or by selecting the drop- down box at the right side of the line.
- Page 15 Reference Only Setup Diagram: Follow these steps before starting your inspections.
-
Page 16: On Screen Display App
On Screen Display App: Follow these steps before starting your inspections. A. On Screen Display (OSD) APP Complete these fields prior to starting your recordings, scroll through to capture in your video User ID Tab This is where you can key in all of the proper information you want to show on the front of the screen. - Page 17 On Screen Display App: Follow these steps before starting your inspections. Run 1/2: A. Text ON/OFF To allow text to be captured in your video B. Distance Zero a. Reset your on screen distance counter C. Up/Down Move distance counter up and down on your screen Setup: A.
-
Page 18: Technical Specifications
Specifications: Transporter: Six-wheeled crawler with all-wheel drive Three available wheel sets for various pipe size ranges Pipe diameter 6” to 12” (Up to 18” with additional wheel set) Tractor operates via pendant speed and direction controls ... - Page 19 Contact Us INSIGHT VISION 600 DEKORA WOODS BLVD. SAUKVILLE, WI 53080 PHONE: 800-488-8177 FAX: 262-268-9952 WWW.INSIGHTVISIONCAMERAS.COM Service and Support Specialist: Service Manager: Linda Moe Email: linda@insightvisioncameras.com Sales Manager: Bob Masse Email: bob@insightvisioncameras.com Director of MFG: Wayne Hartlich Email: wayne@alliancetechnology.com...
- Page 20 www.insightvisioncameras.com | Made in the USA...
