Summary of Contents for Insight Vision Digital Xpress D2

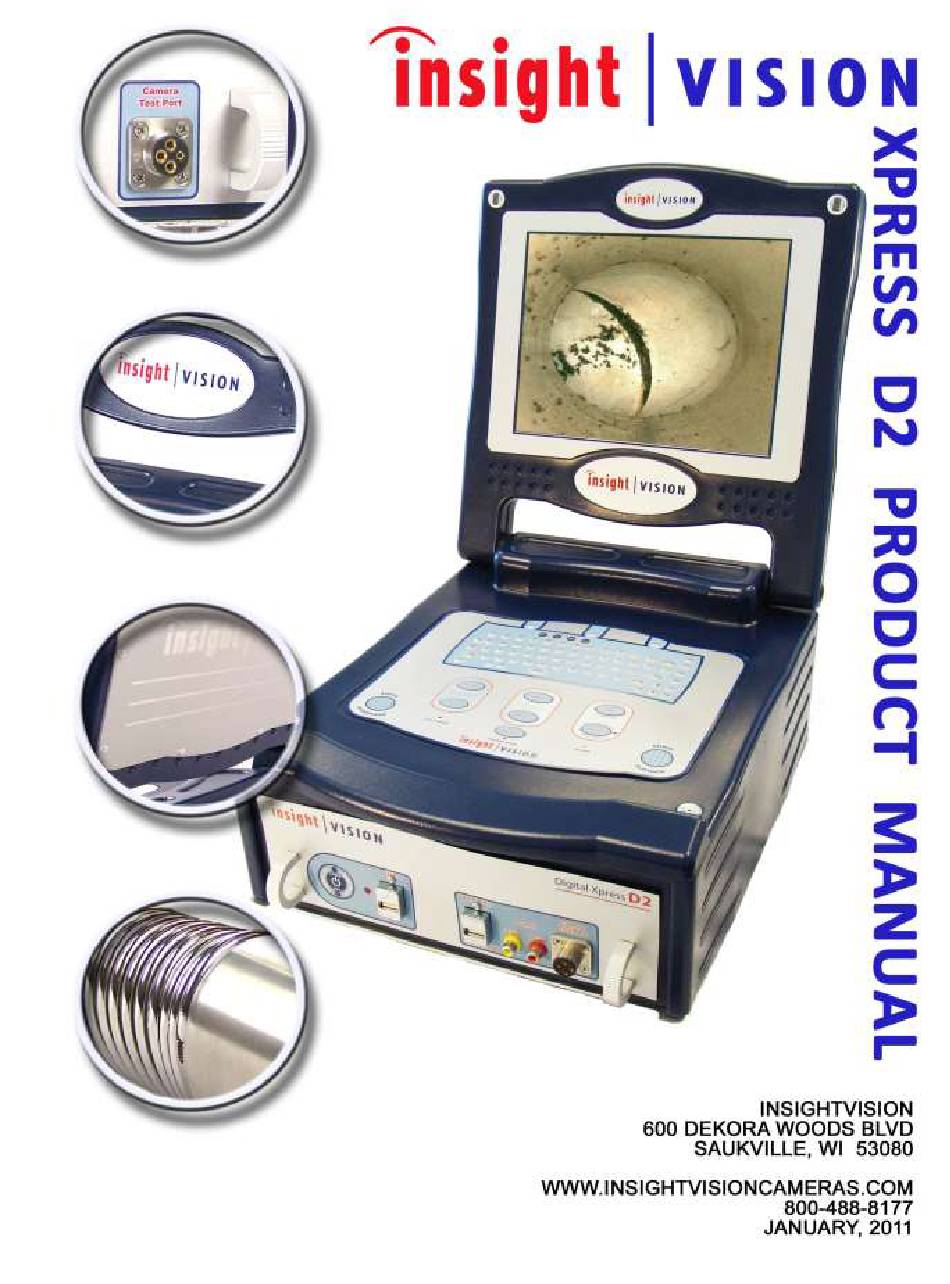

- Page 1 An Alliance Technology Company An Alliance Technology Company 1 of 14 600 Dekora Woods Blvd. Saukville, WI 53080 Toll Free: 800-488-8177 Local: 262-268-9330 Fax: 262-268-9952...
- Page 2 An Alliance Technology Company An Alliance Technology Company 2 of 14 TABLE OF CONTENTS Warranty……………………………….page 3 Command Module……………………page 6 Remote…………………………………page 10 Base Frame…………………………….page 11 Camera…………………….…………...page 13 600 Dekora Woods Blvd. Saukville, WI 53080 Toll Free: 800-488-8177 Local: 262-268-9330 Fax: 262-268-9952...
-
Page 3: Year Warranty
An Alliance Technology Company An Alliance Technology Company 3 of 14 1 YEAR WARRANTY Alliance Technology, LLC warrants to the first purchaser that should any of its products prove to be defective in material or workmanship in normal use, within one (1) year from the date of delivery, Alliance Technology, LLC will, at its exclusive option, repair, replace or exchange the product or any of its parts. - Page 4 Then, completely dry the area around male and female connector and the o-ring before re-connecting. Camera Head: All Insight Vision camera heads (CV, CVSL and CVmicro) are covered for one (1) year under the standard warranty against all defects in workmanship. These cameras are all sealed and pressurized with nitrogen to prevent water ingress.
- Page 5 This type of wear will not be covered under warranty. Push Rod: Insight Vision push rod terminations are covered for one (1) year under warranty. This warranty policy covers workmanship on the termination connection ONLY and does not cover push rod breakage or kinks in other parts of the rod.
- Page 6 An Alliance Technology Company An Alliance Technology Company 6 of 14 600 Dekora Woods Blvd. Saukville, WI 53080 Toll Free: 800-488-8177 Local: 262-268-9330 Fax: 262-268-9952...
- Page 7 An Alliance Technology Company An Alliance Technology Company 7 of 14 MAIN SYSTEM CONTROLS 1. Brightness Up - Increase Camera Head LED brightness - recommended to keep this at full brightness. 2. Brightness Down - Decrease Camera Head LED brightness. 3.
- Page 8 11. Built-In Speaker 12. Menu Button - Menu button brings up the on-screen configuration menu. Please call Insight Vision customer support for assistance. Also doubles as a “soft” key for on-screen display. 13. Menu Button - This button is used as a “soft”...
- Page 9 An Alliance Technology Company An Alliance Technology Company 9 of 14 19. Audio Out Jack 20. Camera Test Port - Camera Diagnostic Port. 21. Main System Connection - Connect provided Interconnect Cable (8) to this receptacle. 22. Main System Power Connection - Connect the main power cable.
-
Page 10: Remote Control Layout
An Alliance Technology Company An Alliance Technology Company 10 of 14 REMOTE CONTROL LAYOUT Select “Camera View” from Main Menu to view live video Use GUIDE key to switch from “Camera View” to “Main Menu” 1. One-Touch Recording Button - When in Camera View, hit button to start recording. - Page 11 Xpress command modules. Stiff Rod (A) The letter A following the rod length indicator designates the Insight Vision rigid push rod. Example: 200A = 200’ of stiff rod. This push rod is .475” in diameter and has been specifically designed for longer pushing distances in 2”-12”...
- Page 12 An Alliance Technology Company An Alliance Technology Company 12 of 14 Debris Bag This optional item comes in two sizes, one for each size of base frame reels. It is intended to minimize drippings while working indoors. It is easily removable for cleaning. 600 Dekora Woods Blvd.
- Page 13 An Alliance Technology Company An Alliance Technology Company 13 of 14 ClearView Camera This camera has a self-leveling feature that will position the camera so that the top of the pipe will appear on the top of the display. (If ordered) This is a color camera with LED’s for illumination of the pipe being inspected.
- Page 14 An Alliance Technology Company An Alliance Technology Company 14 of 14 Installation and removal of skids. The skid is a two-piece device that must be unscrewed for installation. Slide the rear half over the pushrod and slid forward to the rear of the camera. Slide the front half over the camera to meet the rear half.
