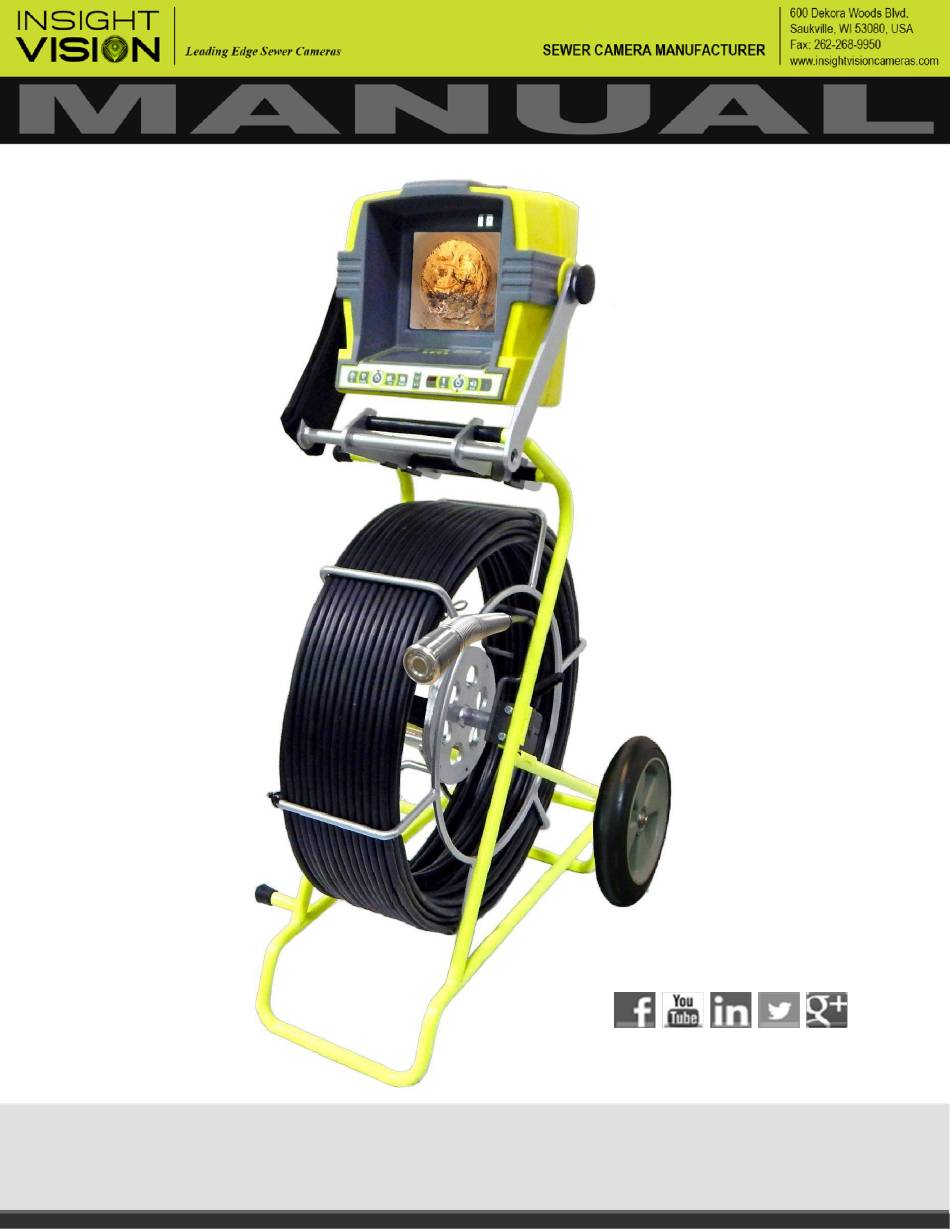

- Page 1 Follow, Like, Post and Watch VUTEK PUSH CAMERA Manufactured by Insight Vision...
- Page 2 Maintain equipment and use only accessories that are recommended by the manufacturer. Use Battery with Care Use equipment only with specific external battery pack. Recharge battery with the charger specified by the manufacturer. If you need to contact customer service or for immediate assistance, contact Insight Vision. Phone: 800-488-8177 Fax:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty ......................3 General Overview .................... 4 Main System Controls ..................6 How to Record ....................9 Insight Vision App ..................10 Base Frame ....................12 Camera Head ....................14 F.A.Q ......................16 Troubleshooting Guide ................. 17 Technical Specifications ................ -
Page 4: Warranty
Insight Vision warrants to the original purchaser that should any of its products prove to be defective in material or workmanship in normal use, within one (1) year from the date of delivery, Insight Vision will, at its exclusive option, repair, replace or exchange the product or any of its parts. - Page 5 Geared to inspect sewer pipes from 3” up to 12” inch diameter. A built-in sonde which transmit a 512 Hz frequency which is locatable with a 512 Hz locator. The Vutek system also comes with a free downloadable Insight Vision App for IOS and Android mobile devices which allows users to view, record, snapshot and share sewer inspection videos.
- Page 6 O-rings on the male and female connector. Read O-Rings above when re-connecting. Camera Head: All Vutek camera heads are covered for one (1) year under the standard warranty against all defects in workmanship. These cameras are all sealed and water-resistant. Warranty coverage will apply for any and all internal failures to the camera head unless external damage is evident.
-
Page 7: Main System Controls
Main System Controls 1. Light Up/Down – Up will increase and down will decrease brightness on the camera head light ring. ▪ Recommended to keep light level at maximum for most pipe conditions 2. On-Screen Distance Counter Reset Button - The button will reset distance counter to zero. ▪... - Page 8 D. Pg. 4 = Free Form Page 13. Main System Connection - Connection Port for the Video Interconnect Cable ▪ This connection will power your Vutek Inspection Camera System ▪ Make sure the two arrows are align, push to connect ▪...
- Page 9 ▪ and observe all applicable safety precautions. NOTICE: ▪ Use only the power supply recommended by Insight Vision. A non-approved 12 volt DC power supply may cause damage or render equipment non-operable. WARNING: ▪ To reduce the risk of injury and prevent equipment damage. Do not remove the display and keyboard cover on this command module without the supervision of a trained service technician.
-
Page 10: How To Record
The built in recorder is activated along with the main system power. Before recording assure a USB recording device is inserted into the USB jack on the top panel, an 8GB USB jump drive is included with the purchase of an Insight Vision command module. Video Recording: 1. -
Page 11: Insight Vision App
Insight Vision wireless network on your phone by selecting the wireless option from your phone menu and chose the “Insight Vision” network. If it is the first time your device is connecting to the Vutek you will be prompted to enter a password. - Page 12 Mobile App Controls 1. Record/Stop – Use this function to record and stop recording 2. Snapshot- Use this function to take picture 3. On Android device this function is not active On Apple device this function stores your recorded inspection videos 4.
-
Page 13: Base Frame
When camera is not in use please store in basket. All anti-slide supports are made with a non-marring material safe for all floor surfaces. The top part of the base frame includes a mounting bracket for any of the Vutek command modules. Push Rod This push rod is .475”... - Page 14 NOTICE: DO NOT POWER WASH THE REEL! Video Connection Port...
-
Page 15: Camera Head
This camera is intended for operation in pipes 2-12” I.D. This camera will function with any of our Insight Vision command module. The diameter of the camera head is 1.30” x 2” long. Designed best for 3” up to 12”... - Page 16 It is held down by three set screws. Use the Allen wrench provided by Insight Vision in the accessory bag to loosen the skids to slide out the camera head. Car Power Adapter The car power adapter is used to power up your camera system.
-
Page 17: Troubleshooting Guide
2. How do I playback my recording on my computer? a. The Insight Vision Media Player is installed on to your 8GB USB stick that is included with the purchase of the Vutek sewer camera system. The Insight Vision Media Player can also be downloaded from Insight Vision website to your USB stick or computer. - Page 18 3. Why don’t I see my distance counter on the screen? a. Press the “PG1” button on the front of your Vutek command module. Use the up and down arrow on the QWERTY keypad to move the location of the distance counter.
- Page 19 Notice: External Battery Pack Included. Power up the system for up to 6 hours. Use 12V Port Only.
-
Page 20: Technical Specifications
Technical Specifications Camera: Self-Leveling: 2” L x 1.3” Diameter Camera Dimensions: Video Resolution: 640 x 480 Weight: 5.9 Ounce Light Ring: 12 LED *See camera section in the manual for safety information Image Sensitivity: .025 Lux ¼” CMOS Image Size & Type: Construction: Stainless Steel Body LED Window:... -
Page 21: Contact Us
Contact Us INSIGHT VISION 600 DEKORA WOODS BLVD. SAUKVILLE, WI 53080 PHONE: 800 - 488 - 8177 FAX: 262 - 268 - 9952 WWW.INSIGHTVISIONCAMERAS.CO M Service and Support Specialist: Bob Masse Sales Manager: bob@insightvisioncameras.com Email:... - Page 22 www.insightvisioncameras.com | Made in the USA...
