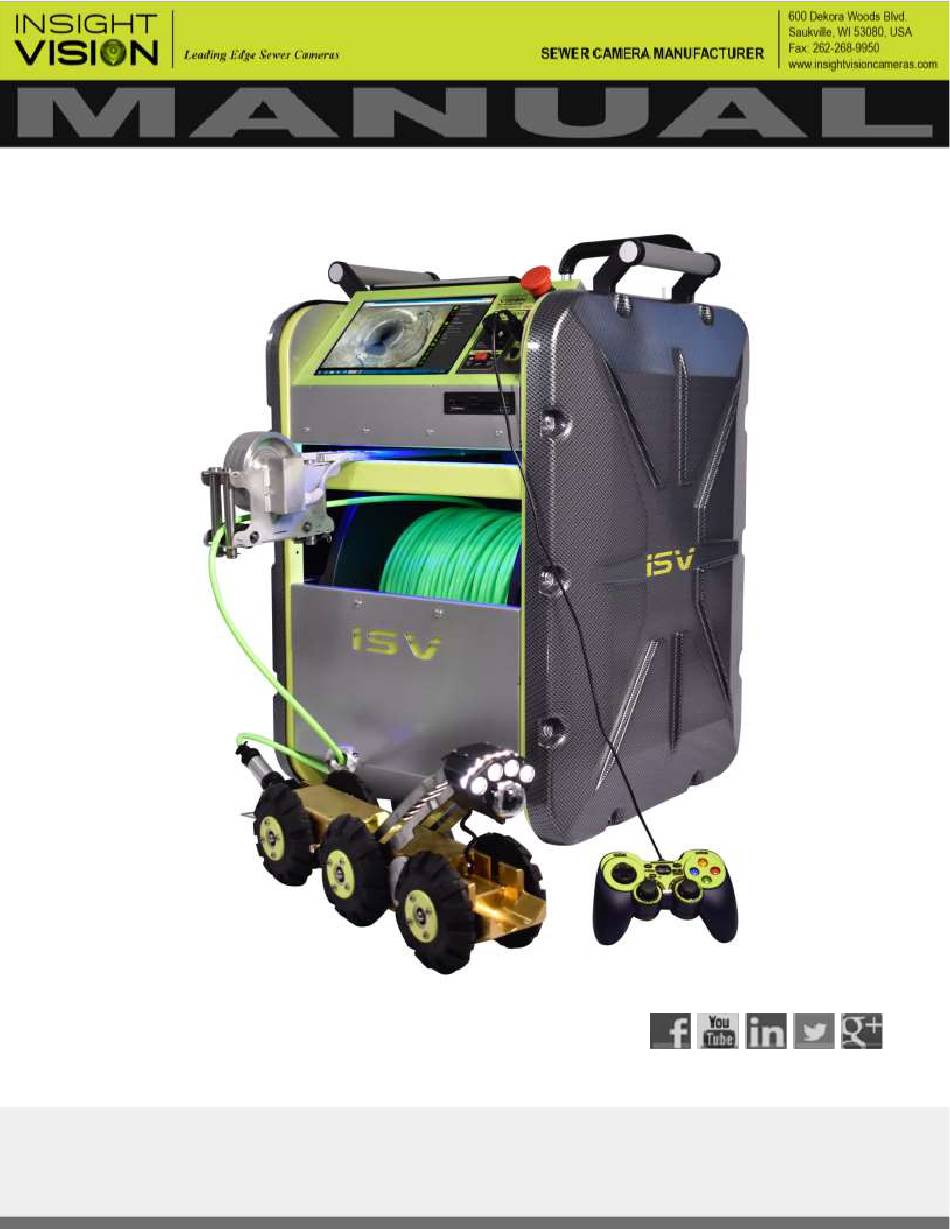

- Page 1 FOLLOW, LIKE AND WATCH IRIS MAINLINE CRAWLER Integrated Remote Inspection System...
-
Page 3: Table Of Contents
Motorized Reel Control …………………………………………………………..6 Crawler Controller ………..……………………………………………………..7 Control System Application ……………………………………………………... 8 Insight Vision Inspection App …………………………………………………... 9 On Screen Display Application ( OCD ) ……………………………………… 10 Insight Vision Mobile Application ............... 13 Connecting a USB Headset to IRIS …………………………………………… 15 Specifications ……………………………………………………………………. -
Page 4: General Overview

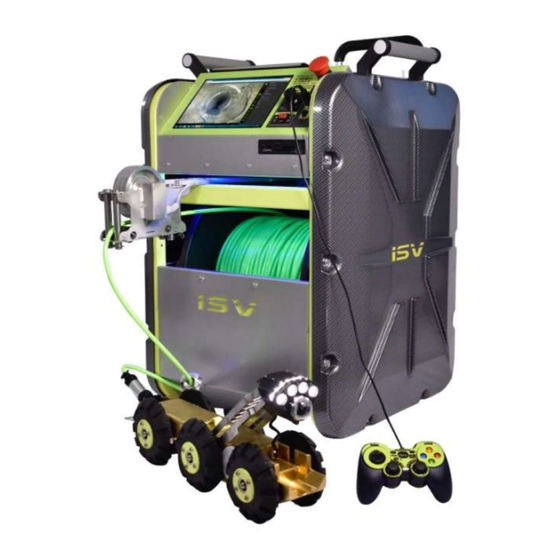

General Overview: Thank you for purchasing the IRIS Mainline Crawler. Reading the documentation will help you make the most of your equipment. The IRIS Integrated Remote Inspection System is a motorized robotic crawler with a motorized drum to rewind the cable. It has a 10.1” touch-screen which provides easy operation and multiple recording options. -
Page 5: General Safety Guidelines
Use proper protective clothing when operating equipment. Use Equipment with Care Do not force the equipment. Do not allow inexperience operators to operate equipment. Maintain equipment and use only accessories that are recommended by the manufacturer. For immediate assistance, contact Insight Vision. Phone: 800-488-8177 Fax: 262-268-9952 Email Technical Service: service@insightvisioncameras.com... -
Page 6: System Power Up
System Power-Up:... -
Page 7: System Shut Down
Shutting Down Your IRIS:... -
Page 8: Motorized Reel Control
Motorized Reel Control: Front Control Panel: 1. ON/OFF Power Button – Turn ON and OFF the system. 2. USB Crawler Controller Port – To connect with the digital hand controller. 3. USB Port – To connect additional external device (e.g. headphone/microphone). 4. -
Page 9: Crawler Controller
Crawler Controller:... -
Page 10: Control System Application
1. IRIS Camera – Opens the Insight Vision App. 2. JS Interface – Digital hand controller, reel status and Auto Payout 3. Insight Vision App – View, record, snapshot, document inspections & more. 4. Recordings Folder – Default folder for saved video inspections. -
Page 11: Insight Vision Inspection App
Insight Vision App: Clicking on the IRIS Camera application launches the Insight Vision App which allows you to view, record, snapshot, display information and more during inspections. 1. Expand/ Minimize Menu Window 2. Record/ Pause 3. Stop Recording 4. Snapshot 5. -
Page 12: On Screen Display Application ( Ocd )
On Screen Display (Menu Window Expanded): User Information ▪ Enter information about your business. ▪ Icon will display text on screen for about 10 seconds. ▪ “Clear User” to quickly erase all user information. ▪ Note: The user information will be auto saved until new changes are made. - Page 13 On Screen Display ( OSD ) : Notes ▪ Enter notes about each project, hitting enter will create a new line. ▪ Icon will display text on screen for 10 seconds. ▪ Simply click on, “Clear Notes” to quickly erase all notes.
- Page 14 On Screen Display ( OSD ) : File Links ▪ To access recorded videos, press “Click to Open Videos” ▪ To access recorded pictures, press “Click to Open Snapshots” ▪ Notice: Videos can be played back using the system’s media player (Windows Media Player). Pictures can be opened with the system’s photo viewer.
-
Page 15: Insight Vision Mobile Application
The default password is 12345678. Notice: It is not advised to change your SSID or password on the IRIS mainline crawler wireless module. The system will have to be sent in for a factory reset. The App is not covered under warranty. - Page 16 Mobile Application Controls: 1. Record/Stop – Use this function to record video and stop recording. 2. Snapshot- Use this function to take picture. 3. On Android ™ device this function is not active. On Apple ™ device this function stores your recorded inspection videos. 4.
-
Page 17: Connecting A Usb Headset To Iris
Connecting a USB Headset to IRIS Here is how to connect a USB headset to your IRIS so you can record audio over your inspection video. Note: This option may not work with 3rd party software. Please contact your 3rd party software vendor for further information. -
Page 18: Specifications
Specifications: Transporter: • Six-wheeled crawler with all-wheel drive • Three available wheel sets for various pipe size ranges • Pipe diameter 6” to 12” (Up to 18” with additional wheel set) • High grip polymer tires for demanding conditions and terrain •... -
Page 19: Back Of Iris
Back of the IRIS Telescoping Handle Additional Ports – Easily connect a TV, to the internet or additional USB Sturdy Side Handles for Lifting Outlet, Power Switch & Cord Non-Slip Wheels Sturdy Handles – The IRIS weighs over 160 lbs so a minimum of two people should lift it using the handles on each side. -
Page 20: Warranty
Insight Vision warrants to the original purchaser that should any of its products prove to be defective in material or workmanship in normal use, within one (1) year from the date of delivery, Insight Vision will, at its exclusive option, repair, replace or exchange the product or any of its parts. -
Page 21: Contact Us
Contact Us: INSIGHT VISION 600 DEKORA WOODS BLVD. SAUKVILLE, WI 53080 PHONE: 800-488-8177 FAX: 262-268-9952 WWW.INSIGHTVISIONCAMERAS.COM Service and Support Specialist: Sales Manager: Alan Petras Email: sales@insightvisioncameras.com Service Manager Email: service@insightvisioncameras.com... - Page 23 www.insightvisioncameras.com | Made in the USA...
