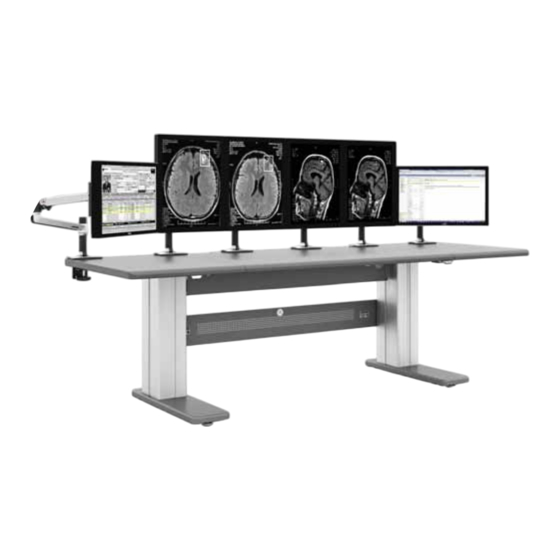

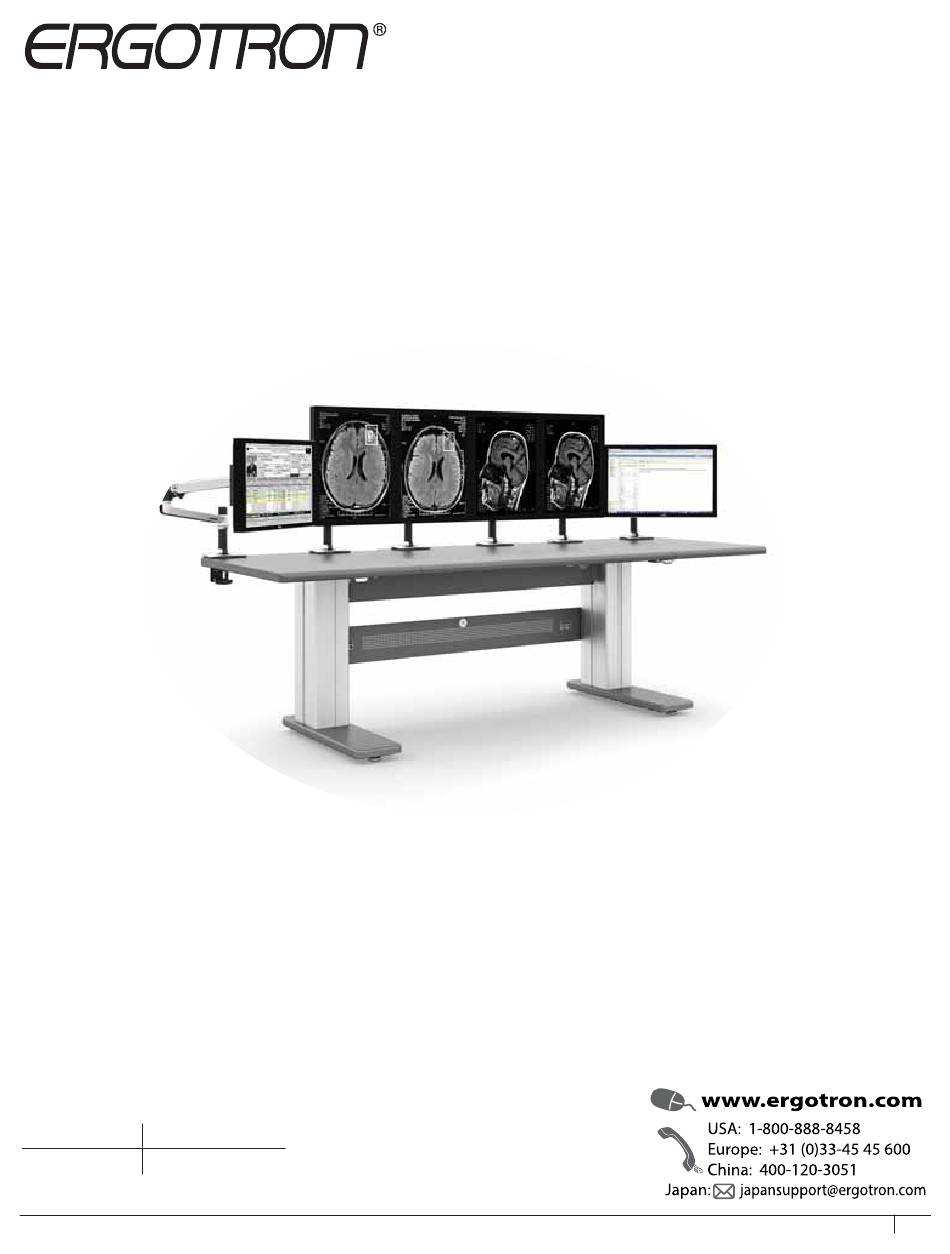

- Page 1 Built with Anthro-DNA™ A S S E M B LY I N S T R U C T I O N S Steve's Bench Product Part# Steve's Bench # RTS90DGMxx NOTE: The monitors and monitor arms are not included. • 09/18 300-5662-00 rev.
- Page 2 W E LCO M E Thank you for purchasing Steve's Bench. These tools are required (but not provided) for assembly: -Tape Measure -5/16" Socket or Nut Driver -Philips Screw Driver -3/8" Socket or Nut Driver PA R T S L I S T Before beginning assembly of your Steve's Bench, please review the parts list to verify that your shipment is complete.
- Page 3 S T E P 1 Side X - Curved Front Edge Assemble Top Place the three worksurface components upside down on a non-marring surface. Align each wing to the center piece so the curved front edges line up and the channels at the edge of each piece meet. ...
- Page 4 S T E P 3 Install the Cable Trough Assembly Align the cable trough with the table so the holes on the sides of the trough align with the holes on the leg end bracket of the leg assemblies, and 10-24 x 3/8"...
- Page 5 For local customer care phone numbers visit: http://contact.ergotron.com © 2018 Ergotron, Inc. All rights reserved. All trademarks are the property of their respective companies. Anthro is a registered trademark and brand of Ergotron Inc. Anthro-DNA is a trademark of Ergotron Inc. • 09/18...
