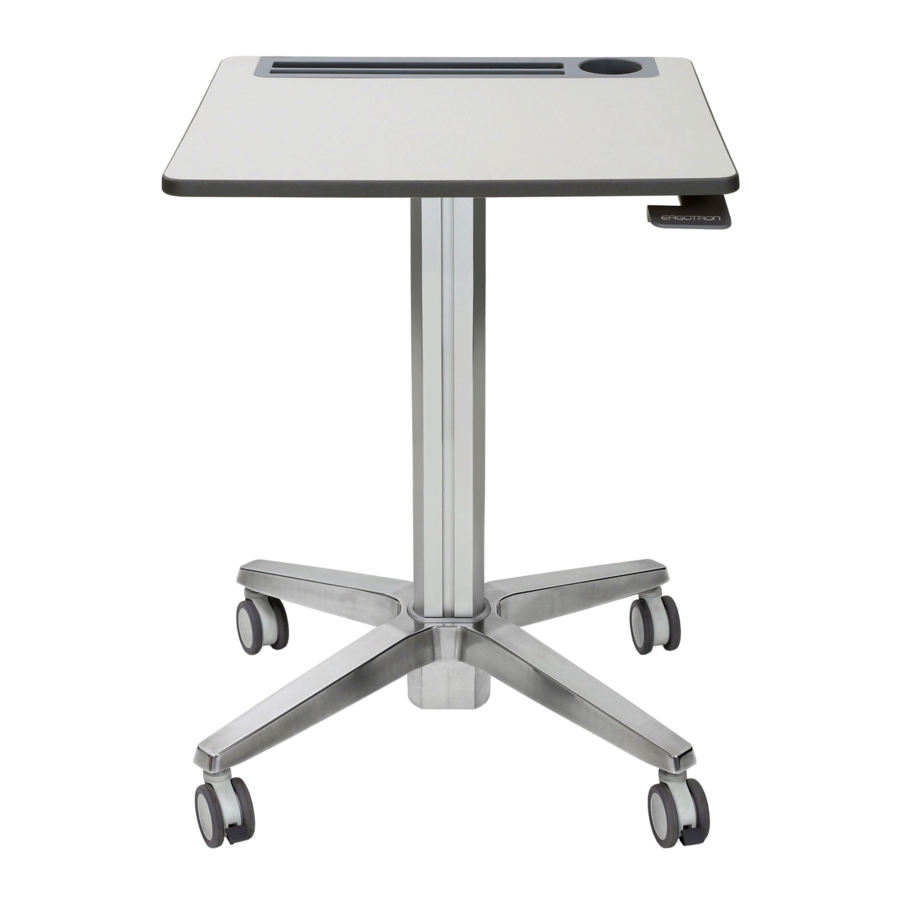

LearnFit
16"
406mm
|
Europe: +31 (0)33-45 45 600
™
< 15lbs. (6.8kg)
CAUTION: DO NOT EXCEED
MAXIMUM LISTED WEIGHT
CAPACITY. SERIOUS INJURY
OR PROPERTY DAMAGE MAY
OCCUR!
|
|
China: 400-120-3051
Japan: japansupport@ergotron.com
User's Guide
English
1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ergotron LearnFit 24-756-003
Summary of Contents for Ergotron LearnFit 24-756-003
- Page 1 MAXIMUM LISTED WEIGHT 406mm CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! English For the latest User Installation Guide please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com...
- Page 2 Components Tools Needed 888-24-404-G-00 rev. A • 03/19 2 of 7...
- Page 3 Remove base orientation indicator from base. Back Front Front Partially insert riser into base. < 10lbs. (4.5kg) 3°- 7° Rock riser from side to side while inserting. Indicator arrows will remain visible. Front 888-24-404-G-00 rev. A • 03/19 3 of 7...
- Page 4 Attach work surface and press down. Remove cap. Indicator arrows should be completely hidden. Lift up on the work surface to make sure it is securely attached to the base. 888-24-404-G-00 rev. A • 03/19 4 of 7...
- Page 5 Lift brake release lever to raise and lower riser. Loosen, but do not remove 2 screws to lift and lower hook to desired height. 180˚ 888-24-404-G-00 rev. A • 03/19 5 of 7...
- Page 6 How to Disassemble To remove worksurface, push tab with a tool while removing. (Hex wrench suggested, max diameter 4mm) NOTE: Requires two people. Attach cap. 888-24-404-G-00 rev. A • 03/19 6 of 7...
- Page 7 Whiteboard surfaces are subject to discoloration, staining and/or breakdown of material if exposed to heat or chemicals. Mouse pads must be used on the whiteboard worksurface when using a mouse for navigation. For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number.
