Sealey LED2001G Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
1.1. GENERAL SAFETY
Ensure the light is fully charged before initial use.
9
DO NOT turn the light on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the light.
8
DO NOT handle or move the light whilst it is being charged.
8
DO NOT use the light if you suspect that the battery or the light casing is damaged.
8
DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
8
recharge the battery at least once every six months of non-use.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, disassemble, modify or service the battery pack.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°F).
8
Recycle or dispose of used battery as stipulated by local regulation.
9
If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.

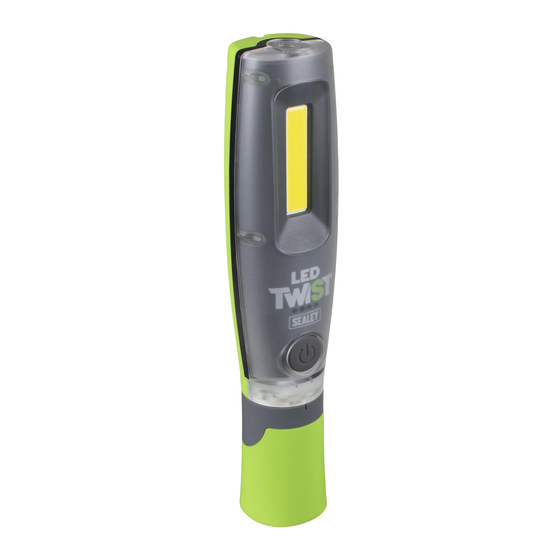

2. INTRODUCTION
Smooth 90° flex with additional 360° twist function enables the light source to be positioned in any direction. Super bright 16W COB
LED provides up to 2000 lumens output with 120° spread of light, illuminating the whole work area. Includes an additional high power
1W SMD LED directional torch. Features a swivel hanging hook and rubber covered magnet on the base, which allow hands-free
operation. Two high quality 2.6Ah lithium-ion batteries for longer life. Supplied with Type-C USB cable.
3. SPECIFICATION
MODEL NO: LED2001 / LED2001G
Battery: 3.7V 2.6Ah Lithium-ion (x2)
Charging Time: 5hr
IP Rating: IP54
LED Type: 16W COB + 1W SMD
Length: 240mm
Lumen Output: Side(High/Low)/Top: (2000/1000)/120lm
Nett Weight: 0.51kg
Operating Time: Side(High/Low)/Top: (3hr/5hr)/15hr
4. OPERATION
4.1. CHARGING THE LIGHT
4.1.1. Connect the USB cable to the USB INPUT on the rear of the light see fig.2 on reverse.
4.1.2. Plug the USB cable into supply and turn on.
4.2. OPERATING THE LIGHT
WARNING! Direct the lens away from your eyes before switching on the light.
‰
4.2.1. Toggle the light between main light (50-100%), torch and OFF by pressing the ON/OFF
switch (fig.1).
4.2.2. The light may be suspended by the hook on rear of light or attached to any ferrous
surface by using the magnet in the base.
© Jack Sealey Limited
RECHARGEABLE INSPECTION LIGHT, 16W COB &
1W SMD LED, 2000LM, ROTATING MAGNETIC BASE
LED2001 LED2001G
MODEL NO:
Original Language Version
FIG.1
ON/OFF
Magnetic
swivel
base
LED2001 LED2001G Issue 1 03/06/24
