Sealey LED2105EU Instruction Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL
Ensure the lamp is fully charged before initial use.

DO NOT turn the lamp on when it is being charged.

DO NOT shine directly into your, other person's or

animal's eyes.
DO NOT allow children to use the lamp.

DO NOT handle or move the lamp whilst it is being

charged.
DO NOT use the lamp if you suspect that the battery or

the lamp casing is damaged.
DO NOT leave battery in a discharged state, recharge

battery immediately. Before storage, fully recharge the
battery, subsequently recharge the battery at least once
every six months of non-use.
1.2. ELECTRICAL SAFETY FOR USE OF CHARGER.
USE ONLY THE SUPPLIED CHARGER PLUG FOR
CONNECTING LAMP TO THE POWER SUPPLY.
WARNING! It is the user's responsibility to read,

understand and comply with the following electrical
instructions:
You must ensure the risk of electric shock is minimised
by the installation of appropriate safety devices.
An RCCB (Residual Current Circuit Breaker) should be
incorporated in the main distribution board. We also
recommend that an RCD (Residual Current Device) is
used with all electrical products, particularly portable
equipment which is plugged into an electrical supply not
protected by an RCCB.
You must also read and understand the following
instructions concerning electrical safety.
1.2.1. The Electricity At Work Act 1989
requires all portable electrical appliances, if used on
business premises, to be tested by a qualified electrician,
using a Portable Appliance Tester (PAT), at least once a
year.
1.2.2. The Health & Safety at Work Act 1974 makes owners
of electrical appliances responsible for the safe condition
of the appliance and the safety of the appliance operator.
If in any doubt about electrical safety, contact a
qualified electrician.
2. INTRODUCTION / SPECIFICATION

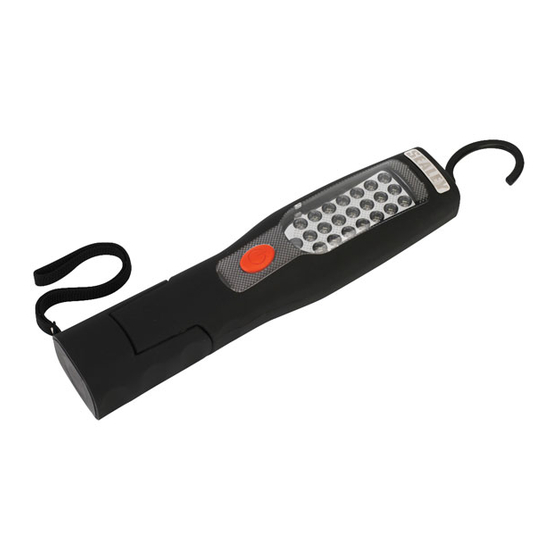

Featuring 26 super bright LEDs, 21 used as an inspection lamp or 5 in the end for use as a directional torch. Single LED battery
indicator. Two 360° swivel hanging hooks for hands-free applications allowing unit to be used horizontally or vertically. Three
rubber covered magnets, two magnets on the rear of the lamp for horizontal use and one on the end for vertical use. Bottom
quarter of the lamp rotates 180° allowing the unit to be positioned for ease of use on any ferrous surface. Replaceable
shatterproof polycarbonate lens with a highly polished reflector board gives an increased spread of light. Lithium-ion polymer
battery (3.7V/1200mAh) for longer life, no memory effect, a much slower discharge than typical Ni-MH batteries and can operate
for up to four hours on a single charge. Supplied with mains and in-car chargers.
Battery:
Charging Time: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4hrs
Operating Time: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4hrs
1.2.3. You must ensure that you:








1.3







3.7V / 1200mAh
Original Language Version
INSTRUCTION MANUAL FOR:
CORDLESS 21 / 5 LED RECHARGEABLE
INSPECTION LAMP LITHIUM-ION
LED2105EU
MODEL No.
Inspect the charger plug, cable and connector for wear
and damage to ensure items are safe before connecting
to the mains power supply.
If worn or damaged DO NOT use.
Important: Check that the voltage marked on the charger
plug is the same as the lamp.
Uncoil the cable between charger and the lamp.
DO NOT pull the charger plug from the mains socket by
the lead.
WARNING! DO NOT use any other type of charger with
this product, other than the supplied mains or car
charger. Failure to observe this warning could result in
injury and or fire and will invalidate the warranty.
DO NOT try to take the charger plug apart.
DO NOT use the charger plug to charge or power any
other electrical item.
DO NOT get the charger wet, or use in wet, damp
conditions (for indoor use only).
BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
DO NOT Attempt to open, disassemble, modify or
service the battery pack.
DO NOT Crush, puncture, short external contacts or
dispose of in fire or water.
DO NOT Expose to temperatures above 60°C (140°).
Replace only with the battery pack designated for this
product.
Recycle or dispose of used battery as stipulated by local
regulation.
If the electrolyte in the cells gets on your skin, thoroughly
wash with soap and water. If it gets in your eyes, rinse
thoroughly with cool water and seek immediate medical
attention
LED2105EU Issue: 3 - 06/02/12
