Sealey LED2001 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
1. SAFETY
1.1. GENERAL SAFETY
Ensure the light is fully charged before initial use.
9
DO NOT turn the light on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the light.
8
DO NOT handle or move the light whilst it is being charged.
8
DO NOT use the light if you suspect that the battery or the light casing is damaged.
8
DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
8
recharge the battery at least once every six months of non-use.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, disassemble, modify or service the battery pack.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°F).
8
Recycle or dispose of used battery as stipulated by local regulation.
9
If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.

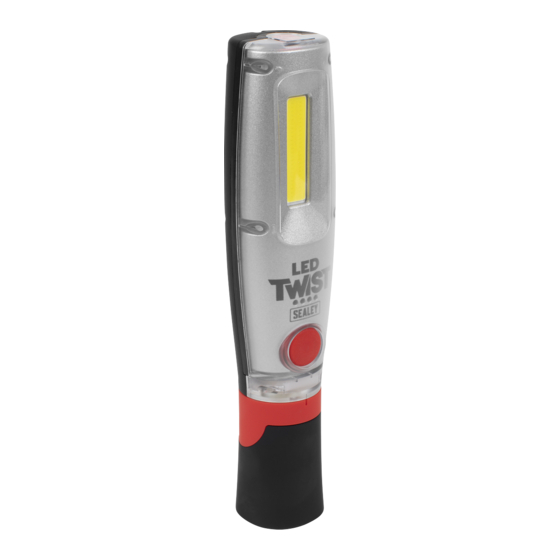

2. INTRODUCTION
Smooth 90° flex with additional 360° twist function enables the light source to be positioned in any
direction. Super bright 16W COB LED provides up to 2000 lumens output with 120° spread of light,
illuminating the whole work area. Includes an additional high power 1W SMD LED directional torch.
Features a swivel hanging hook and rubber covered magnet on the base, which allow hands-free
operation. Two high quality 2.6Ah lithium-ion batteries for longer life. Supplied with Type-C USB
cable.
3. SPECIFICATION
MODEL NO:
Battery:
Charging Time:
IP Rating:
LED Type:
Length:
Lumen Output:
Operating Time:
4. OPERATION
4.1. CHARGING THE LIGHT
4.1.1. Connect the USB cable to the USB INPUT on the rear of the light.
4.1.2. Plug the USB cable into supply and turn on.
4.2. OPERATING THE LIGHT
WARNING! Direct the lens away from your eyes before switching on the light.
‰
4.2.1. Toggle the light between main light (50-100%), torch and OFF by pressing the ON/OFF switch (fig.1)
4.2.2. The light may be suspended by the hook on rear of light or attached to any ferrous surface by using the magnet in the base.
5. MAINTENANCE
5.1. Keep the torch clean by wiping with a damp cloth.
5.2. Store torch in a dry childproof area.
IMPORTANT WARRANTY INFORMATION
The battery fitted to this light is considered to be a consumable item and its ability to accept a charge will reduce over time. We will
provide warranty against mechanical and electrical defect for a period of one year - this DOES NOT cover fair wear and tear.
If the battery is not properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances we
will not replace the battery regardless of whether it is less than one year old.
© Jack Sealey Limited
RECHARGEABLE INSPECTION LIGHT, 16W COB &
1W SMD LED, 2000LM, ROTATING MAGNETIC BASE
MODEL NO:
LED2001
3.7V 2.6Ah Lithium-ion (x2)
5hr
IP54
16W COB + 1W SMD
240mm
Side(High/Low)/Top: (2000/1000)/120lm
Side(High/Low)/Top: (3hr/5hr)/15hr
Original Language Version
LED2001
FIG.1
ON/OFF
MAGNETIC
SWIVEL
BASE
LED2001 Issue 1 19/02/24
