Sealey LED02G Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
1.1. GENERAL
It is important to ensure that the lamp is fully charged before initial use.
9
DO NOT turn the lamp on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the lamp.
8
DO NOT leave battery in a discharged state. Recharge battery immediately.
8
Recharge the battery at least once every six months of non-use.
9
There are no user serviceable components. DO NOT dismantle.
9
DO NOT pull the charger plug from the mains socket by the lead.
8
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT Attempt to open, disassemble, modify or service the battery pack.
8
DO NOT Crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT Expose to temperatures above 60°C (140°F).
8
Recycle or dispose of used battery as stipulated by local regulation.
9
If the electrolyte in the cells gets on your skin, thoroughly rinse with water. If it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.
2. INTRODUCTION

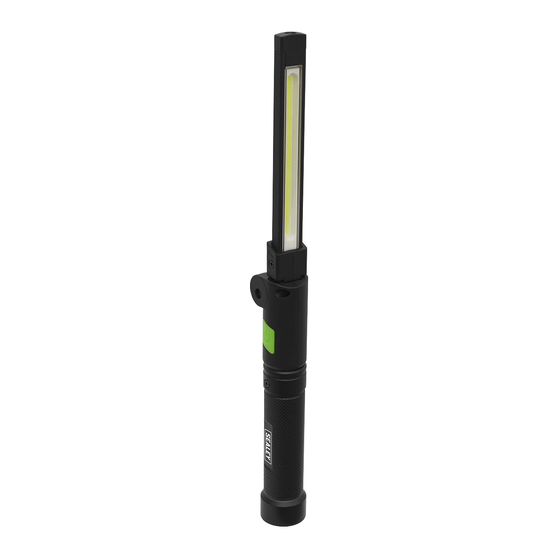

Slimline pocket light for use in confined spaces. Durable aluminium housing. Inspection arm can be folded 180º. Super bright COB and SMD
LED, 6500k. Rechargeable high quality 3.7V 2600mAh Lithium-ion battery. LED Indicators - flash green for charging and continuous green for
fully charged. High-impact IK07 Rated. Strong magnet on base of handle for hands-free use.
3. SPECIFICATION
MODEL NO: ............................................................LED02G
Battery: .................................................3.7V 2600mAh Li-ion
Charging Time: ..................................................................4hr
LED Type: ............................................... 2 x COB + 1 x SMD
Length: ...................................................................................
Folded: ........................................................162 x 29 x 40mm
Extended: ....................................................304 x 29 x 33mm
Lumen Output:
Top: .............................................................................. 120lm
Front(High/low): .................................................800lm/150lm
Rear(High/low): ..................................................... 400/120lm
Operating Time: .....................................................................
Top Spotlight: ........................................(120lm)/(8hr runtime)
Front Light: ............................(800/150lm) (2.5hr/8hr runtime)
Rear Light: ..................................(400/120lm)/(4/9hr runtime)
4. CHARGING
4.1. The battery fitted to this light is considered to be a consumable item and its ability to accept charge will reduce over time. We will
warranty it against mechanical and electrical defect for a period of one year, this does not cover fair wear and tear. If the battery is not
properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances we will not replace the
battery even if it is less than one year old.
4.2. Connect the charger into the charge port on the light. Plug into power supply and turn on, the green charge indicator LED on the light
will flash as the battery charges. When fully charged the three LEDs turns to continuous green.
4.3. Charge the battery for 4-5 hours for its initial charge. Normal charge time is approx 4hrs. Disconnect from mains supply.
NOTE:
The Lithium battery does not suffer from memory effect and once fully charged may be stored for up to six months without
another charge.
© Jack Sealey Limited
2 COB & 1 SMD LED RECHARGEABLE
ALUMINIUM FOLDING POCKET LIGHT
LED02G
MODEL NO:
Original Language Version LED02G Issue 1 16/06/2021
