Summary of Contents for Northern Lights NLPOWR

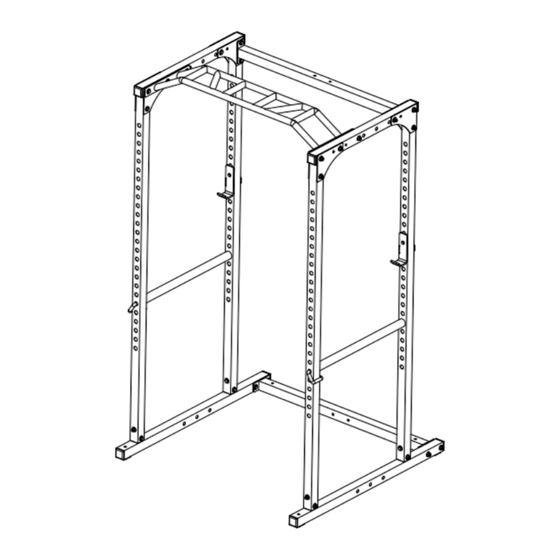

- Page 1 POWER RACK ASSEMBLY INSTRUCTIONS Specification Weight=148 lbs Packed in 2 Boxes POWER RACK :79.25"x9"x5.25" Box 1 :2.16 ft³ NLPOWR :82 Lbs OVERALL DIMENSIONS: 52"L X 47.75"W X 85"H :45.25"x14.5"x8.75" 23 JANUARY 2017 Box 2 :3.32 ft³ :66 Lbs...
- Page 2 Parts List BOLT SIZE Item Part QTY. Base Side Base Rear Rear Top Top Ladder Top Side Side Vertical Bar Holder Safety Spotter Right Safety Spotter Left 10 Ladder Gusset 11 Gusset 3/8" x 2-3/4" Bolt 3/8" x 3" Bolt 3/8"...
- Page 3 A A A A TYP E Bolt Base Rear (2) to Base Sides (1) using the bolting shown. Bolt Side Verticals (6) to Base Sides (1) using the bolting shown. Bolt Rear Top (3), Ladder (4) & Top Side (5) to Side Verticals (6) using Gusset (11) &...
- Page 4 Northern Aucune autre garantie n’a été faite ou sera faite Lights product. de la part de Northern Lights en ce qui concerne tout produit de Northern Lights ou son opération, Northern Lights shall not be responsible for réparation ou échange.
