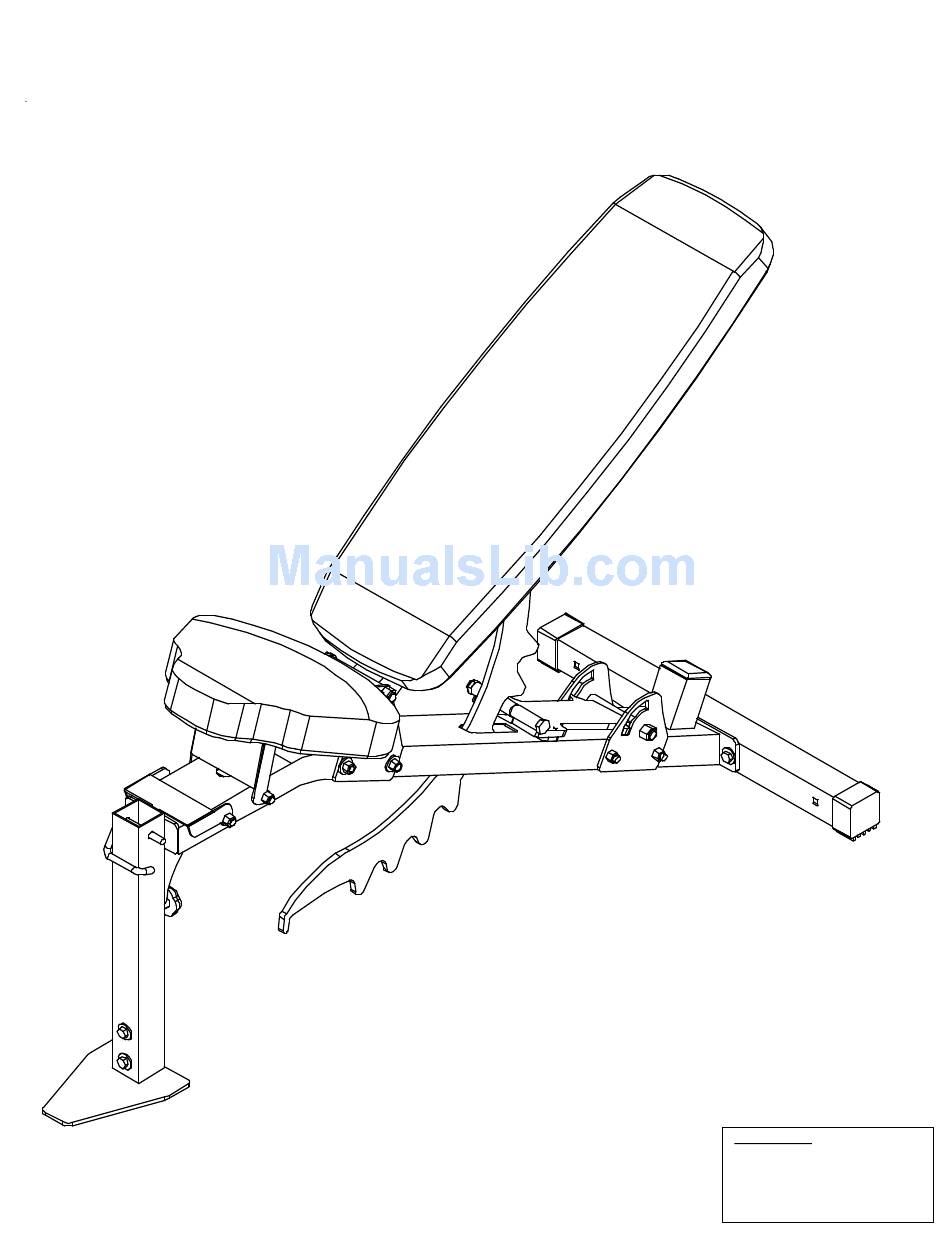

- Page 1 FLAT/INCLINE/DECLINE BENCH ASSEMBLY INSTRUCTIONS FLAT/INCLINE/DECLINE BENCH NL-FIDB Specifications Overall Dimensions: 53.25" L x 25.25" W x50" H Weight = 74 lbs July 08, 2014 Packed in 1 Box Box 1 = 52" x 19.5" x 7" = 4.11 ft³...
-
Page 2: Parts List
Parts list Item Description ......... Qty Item Description ......... Qty 3/8" x 2-3/4" Bolt ......4 Main frame ........1 3/8" x 3-1/4" Bolt ......2 Rear Frame Base ......1 3/8" x 5" Bolt ......... 2 Back Rest Support Tube .... 1 1/2"... - Page 4 1. Bolt the Main Frame (1) to the Rear Frame Base (2) using bolting shown. 2. Bolt Front Foot (8) to Main Frame (1) using bolting shown. 3. Bolt Seat Support Bracket (7) to the Main Frame (1) using bolting shown. 4.
- Page 5 4. Bolt the Back Rest Support Tube (3) to Seat Support Bracket (7) using bolting shown. 5. Bolt the Back Rest Support Tube (3) to the Back Rest Adjustment (4) using bolting shown. 6. Bolt the Back Seat (5) to the Back Rest Support Tube (3) using bolting shown. Make sure that all bolts are tightened before each use.
- Page 6 Cette garantie n’inclut pas toutes autres garanties implicites pour If you feel that a Northern Lights product is defective, please contact our incidents ou dommages conséquents créés par les lois provincial ou parts department at (800) 461-1709. les lois d’état.
