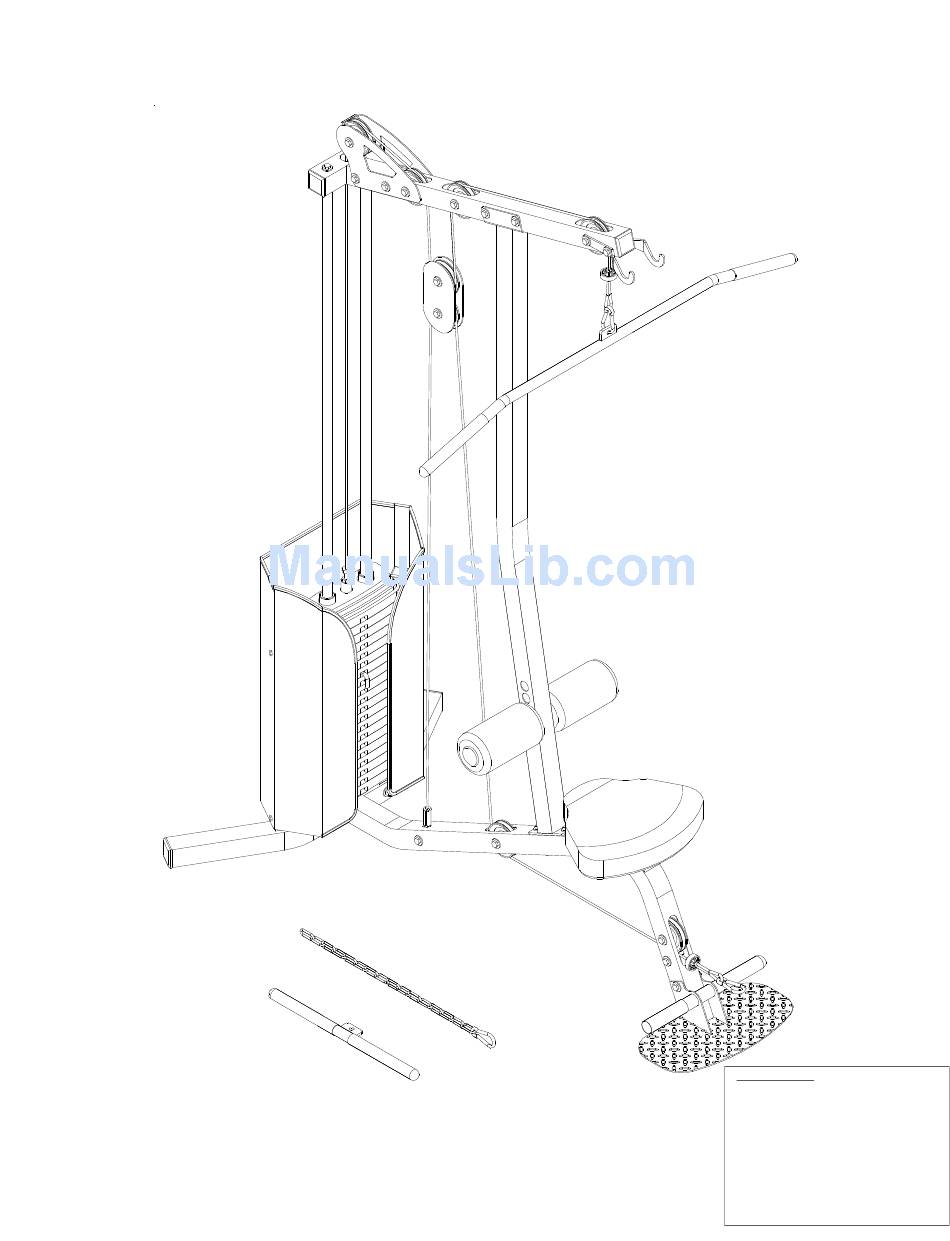

Northern Lights NL-LATS200 Assembly Instructions Manual

NL-LATS200

Lat Machine, Selectorized

NL-LATS200

Overall Dimensions: 60" L x 48" W x 83" H

March 31, 2014

Specifications

Weight

= 358 lbs

Packed in 5 Boxes

Box 1

= 76.5" x 22.75" x 8.5"

= 8.56 ft³

= 158 lbs

Box 2, 3, 4, & 5

= 11.75" x 5.25" x 5.25"

= 0.187 ft³

= 50 lbs (each)

Table of Contents

Do you have a question about the NL-LATS200 and is the answer not in the manual?

Page 1 NL-LATS200 ASSEMBLY INSTRUCTIONS Specifications Weight = 358 lbs Packed in 5 Boxes Lat Machine, Selectorized Box 1 = 76.5" x 22.75" x 8.5" = 8.56 ft³ NL-LATS200 = 158 lbs Box 2, 3, 4, & 5 Overall Dimensions: 60" L x 48" W x 83" H = 11.75"...
Page 2 Parts list Item Description ......Qty..Box # Item Description ......Qty... Bag # Lat Top Cable ......1 ..Bag 2 Low Cable ........ 1 ..Bag 2 1/4" x 2" Bolt ......4 ..1 3/8" x 3/4" Bolt ......2 ..1 Base ........
Page 4 Typical Typical Typical Bolt Rear Base (2) & Foot Plate (7) to the Base (1), install the Seat Pad (17) on the Base (1) using bolting shown. Insert Guide Rod (6) in the holes on top of the Rear Base (2), slide the Rubber Bumper (N), Weight Stack (19) &...
Page 5 Typical Typical Typical FINISH Typical Cables are a consumable and must be treated as such. As a minimum, an annual inspection must be performed on all cable ends and full lengths. A cable must be replaced START immediately if broken exposed wires and/or a break in cable coating are found.
Page 6 Bolt Weight Stack Shroud (9) and two Wt Stack Front Shrouds R&L (8) to the Rear Base using bolting shown. NOTE: Wt. Stack Front Shrouds R&L must overlap Weight Stack Shroud. Install Edge Trim 93" (O).
Page 7 à des modifications non autorisées. operation, repair or replacement of any Northern Lights product. Northern Lights shall not be responsible for injury, loss of use of the Aucune autre garantie n’a été faite ou sera faite de la part de Northern...
