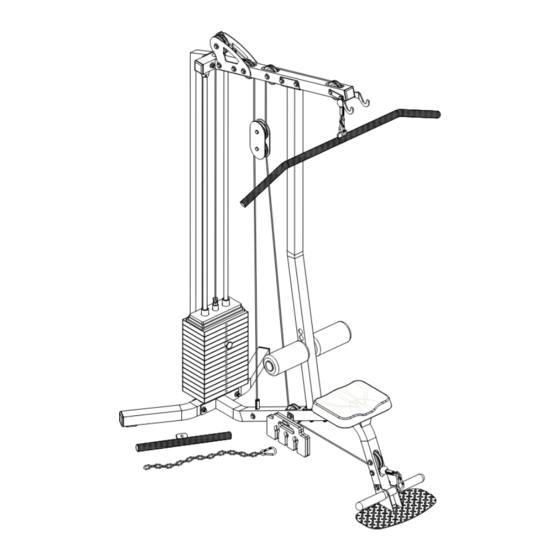

Northern Lights 225LB Assembly Instructions Manual

NORTHERN LIGHTS LAT MACHINE,SELECTORIZED,225LB

NLLATS225

OVERALL DIMENSIONS: 60"L X 48"W X 83"H

23 MAY 2023

Keep This For Warranty

NLLATS225

LOT:

1-866-420-4560

Northern Lights Fitness

Products Inc.

MADE IN CANADA

Specification

Weight=358 lbs

Packed in 5 Boxes

:76.5"x22.75"x8.5"

Box 1

:8.56 ft³

:158 Lbs

:11.75"x5.25"x5.25"

Box 2,3&4

:0.187 ft³

:(Each)75 Lbs

Table of Contents

Do you have a question about the 225LB and is the answer not in the manual?

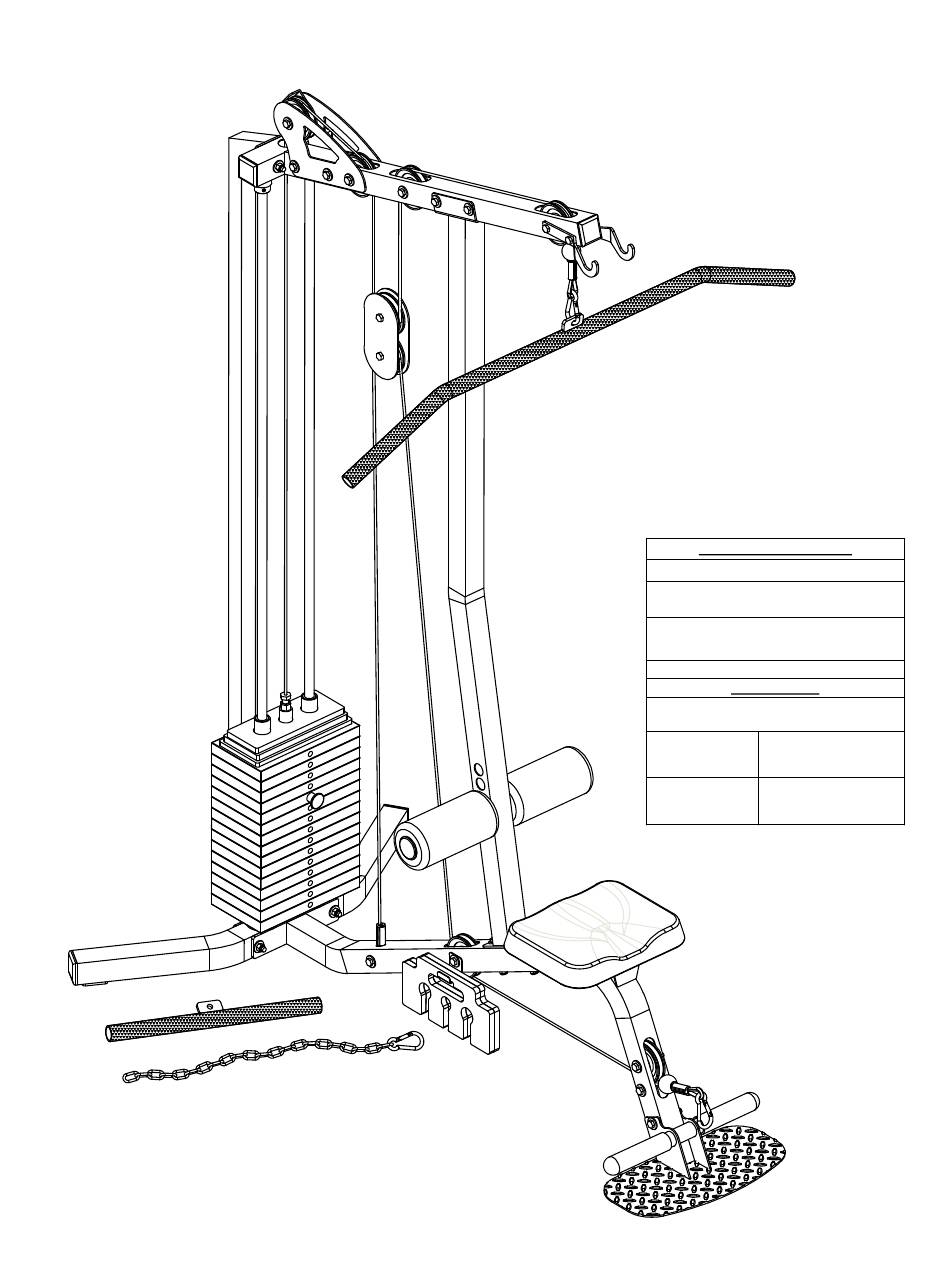

Page 1 NORTHERN LIGHTS LAT MACHINE,SELECTORIZED,225LB ASSEMBLY INSTRUCTIONS Keep This For Warranty NLLATS225 LOT: 1-866-420-4560 Northern Lights Fitness Products Inc. MADE IN CANADA Specification Weight=358 lbs Packed in 5 Boxes :76.5"x22.75"x8.5" Box 1 :8.56 ft³ :158 Lbs :11.75"x5.25"x5.25" Box 2,3&4 :0.187 ft³...
Page 2 Parts List BOLT SIZE Item Item Part QTY. Box/Bag# Part QTY. Box/Bag# 6mmx16mmL Bolt Bag 1 Base Box 1 3/8" x 1-3/4" Bolt Bag 1 Rear Base Box 1 Main Upright Box 1 3/8" x 2-3/4" Bolt Bag 1 Top Tube Box 1 3/8"...
Page 3 Page:-3 of 6...
Page 4 G Typical Typical 1.Bolt Rear Base (2),Rear Vertical (8) & Foot Plate (7) to the Base (1) then install theSeat Pad (17) on the Base (1) using bolting shown. 2.Insert Guide Rod (6) in the holes on top of the Rear Base (2), slide the Rubber Bumper (N), Weight Stack (18) &...
Page 5 Typical 5 AU 2 AU G Typical Typical 1 AU START Cables are a consumable and must be treated as such. As a minimum,an annual inspection must be performed on all cable ends and full lengths. A cable must be replaced immediately FINISH if broken exposed wires and/or a break in cable coating are found.
Page 6 Aucune autre garantie n’a été faite ou Lights product. Northern Lights shall not be sera faite de la part de Northern Lights en ce qui responsible for injury, loss of use of the product, concerne tout produit de Northern Lights ou son inconvenience, loss or damage to personal opération, réparation ou échange.
