UPLIFT 3-Leg Desk Instructions for
Solid Wood Desktops
Any user or installer of desk base must study this manual carefully. If this desk is sold,
please provide the manual to the buyer, installers, or support personnel operating the product.
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
90.014.01.0473

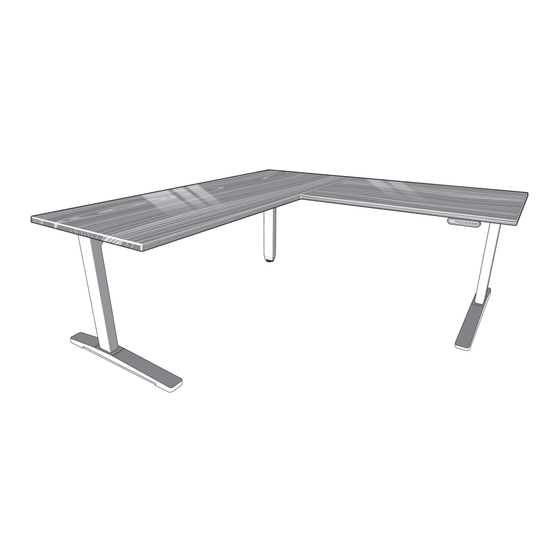

pictured: 3-leg desk; solid-wood top, with right hand return
TABLE OF CONTENTS
1
2
3
4
5
6
7
8
SAVE THESE INSTRUCTIONS:
®
PAGE
2
2
3
4
14
14
15
16
FRM300-SW/R03
Advertisement
Related Manuals for Uplift Desk Solid Wood Desktops
Summary of Contents for Uplift Desk Solid Wood Desktops
-
Page 1: Table Of Contents
Any user or installer of desk base must study this manual carefully. If this desk is sold, please provide the manual to the buyer, installers, or support personnel operating the product. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com 90.014.01.0473... -
Page 2: Safety And Warnings
Liability: Under no circumstances does the manufacturer accept warranty claims or liability claims for dam- ages caused from improper use or handling of the desk frame other than that which is described in this operation manual. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com... -
Page 3: Parts List
6.0 00 01 .0 09 .0 26 0 . 0 6.0 . 0 01 From the 2-leg frame box: These parts are used for every combination of UPLIFT Desk: Foot Crossbar end Crossbar rail Side bracket Adhesive pad (qty 2) -
Page 4: Assembly Instructions
(10) Screws from Step C (22 screws in total). Remove backing from the Adhesive pads (part 10) and position along the brackets and frames as shown. Be sure to not cover any holes for the screws! © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com... - Page 5 Main desktop with the Return desktop (part 21). Slide one Crossbar rail (part 6) and the Open-end rail (part 7) into the Corner leg assembly and the Right leg assembly. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 6 (2) Wood screws (part 18). Place the Keypad (part 12) on the Return desktop assembly using two (2) of the Wood screws (part 18). © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 7 Slide the Crossbar rails back into the Corner crossbar end (part 5). Screw in one Wood screw (part 18) into the hole of the Corner crossbar end. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 8 DOWN button again until the desk lowers a little bit more, slightly rises and stops. Release the DOWN button. Your desk is now ready to use. To program up to four presets: Use the up/down buttons to find a desired height, then press “M” followed by a number 1 – 4. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 9 (8) Machine screws from Step C (20 screws in total). Remove backing from the Adhesive pads (part 10) and position along the brackets and frames as shown. Be sure to not cover any holes for the screws! © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 10 Lay down a blanket and place your desktops on it (to protect it from scratch- es) with the bottom side facing up. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 11 Attach using two (2) Wood screws (part 18). Place the Keypad (part 12) on the Return desktop assembly using two (2) of the Wood screws (part 18). © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 12 Once these are secure, the desk can stand on its own. But keep the second person around to hold the pieces in place and to avoid mishap while you lay underneath the desk to finish assembly. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
- Page 13 Once your legs are connected to the desktop, you can resume the instructions from earlier. At this point please flip back to Page eight (8), Step U, and resume from there. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com...
-
Page 14: Desk Placement
6. PROGRAMMING: SETTING THE LED RETRACTED HEIGHT If you’ve purchased an UPLIFT Desk and the Advanced 1-touch digital keypad, press the DOWN button on the Keypad until the frame reaches its lowest position. Measure the height of the frame from the floor to the underside of the desktop and if the number on the LED display does NOT match your measure- ment, follow these steps: Press and hold the DOWN button again until the LED display reads “RST”... -
Page 15: Troubleshooting
If the Keypad displays “Hot”, let the base cool down for 20 minutes. If the desk seems to be uneven, try the reset instructions above. If that does not work you may need to adjust the levelers at the bottom of the foot. © UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com... -
Page 16: Technical Specifications
Keep all electrical components away from liquids. Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com.
