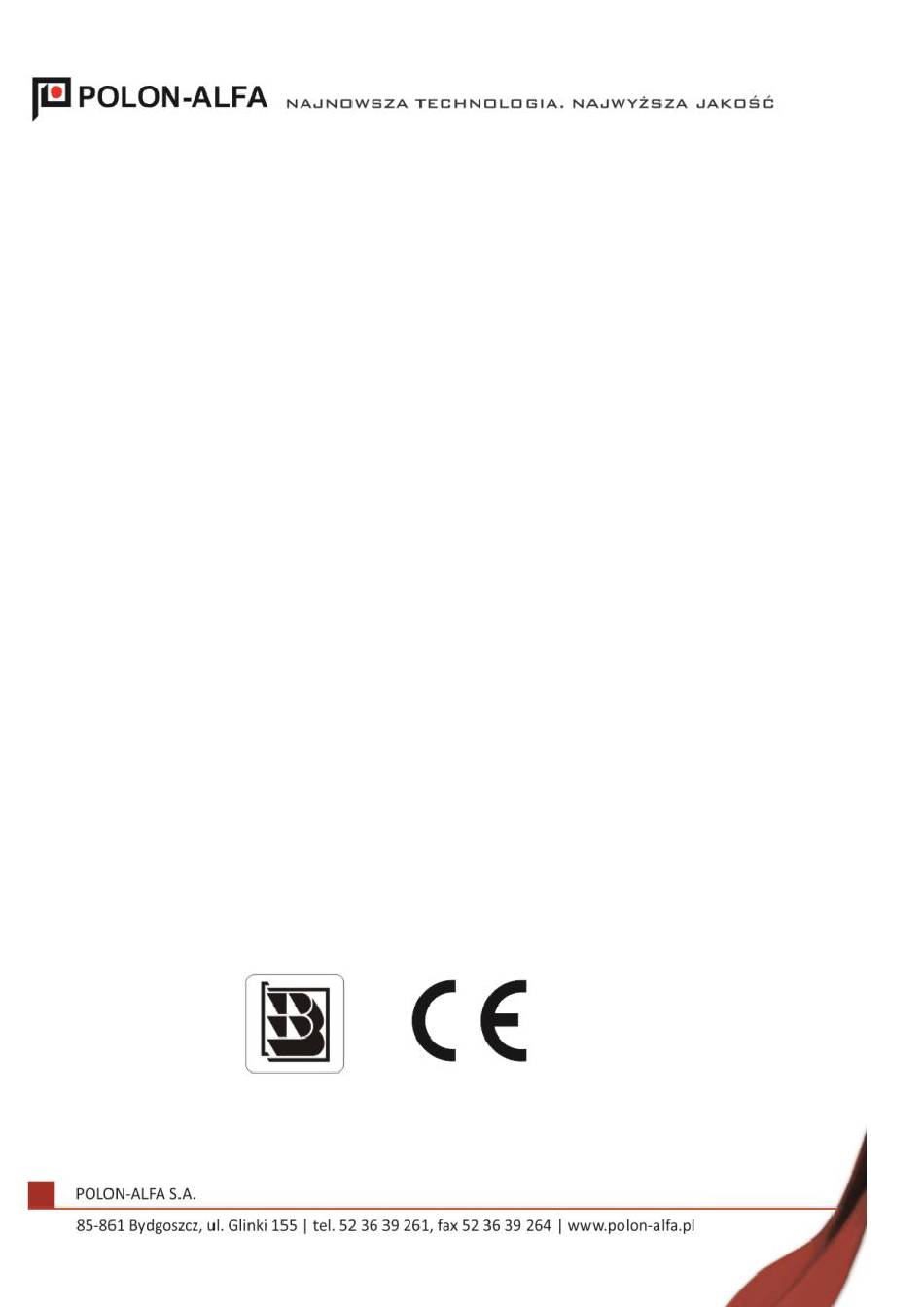

- Page 1 POLON 4000 AND POLON 6000 INTERACTIVE FIRE DETECTION AND ALARM SYSTEM DUCT SMOKE DETECTOR DUO-6046K Installation and Maintenance Manual IK- E376-001 1 Edition...
- Page 2 IK-E376-001 DUO-6046K duct smoke detector covered by the present manual complies with the requirements of the following European Union Directives: CPR Regulation (EU) No 305/2011 of the European Parliament and of the Council of 9 March 2011 laying down harmonised conditions for the marketing of construction products and repealing Council Directive 89/106/EWG;...
- Page 3 IK-E376-001 POLON-ALFA S.A. 85-861 Bydgoszcz, ul. Glinki 155 Duct smoke detector DUO-6046K Intented use: Fire safety – duct smoke detector using stray light, with an integrated short-circuit isolator, designed for fire alarm systems used in buildings. Notified Body No: 1438 -CNBOP-PIB Declaration of Performance No.
- Page 4 IK-E376-001 T ech n i cal E s s en t ial Ch ara ct er is ti cs Pe rf or man c e Sp ec if ic ati on s E N 54 - 27 : 20 15 Op e rat ion a l r e lia b il ity Man u fa ctu r er ’s a d ju s t m en ts Nie d oty czy...
- Page 5 IK-E376-001 POLON-ALFA S.A. 85-861 Bydgoszcz, ul. Glinki 155 Duct smoke detector DUO-6046K Intended use: Fire safety – duct smoke detector using stray light, with an integrated short-circuit isolator, designed for fire alarm systems used in buildings. Notified Body No: 1438 -CNBOP-PIB Declaration of Performance No.
- Page 6 IK-E376-001 Imp act ( op e rat i on a l) p as s 5. 10...
- Page 7 IK-E376-001 Har mon is e d te ch n i ca l s p ec i fi cat ion s E s s en t ial ch a ra ct eris ti cs of th e p r od u c t Pe rf or man c e E N 54 - 17 : 20 05 + AC : 20 07...
-
Page 8: Technical Specifications

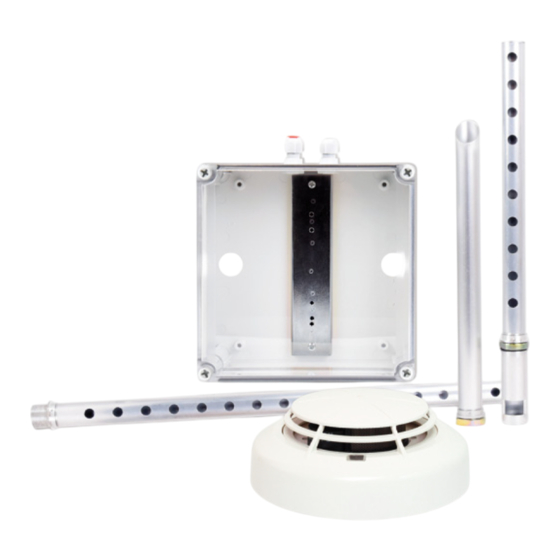

IK-E376-001 1 PURPOSE DUO-6046K duct smoke detector is designed for detecting the presence of smoke in the airstream of ductwork sections of the HVAC air handling systems and similar, where, due to the cross-section of the duct, rapid air movements well as other factors, it is not possible to install the detector. - Page 9 IK-E376-001 4 CONSTRUCTION DUO-6046K duct smoke detector (fig. no. 1) is made of a plastic housing. Two tubes are attached to the housing : intake sampling tube and exhaust tube. There are G-40 base and DUO-6046 smoke detector in the housing. The electrical wiring is fed through one or two sealed conduits (one of them is pre-sealed).
- Page 10 PRINCIPLE OF OPERATION A duct smoke detector DUO-6046K consists of a chamber and a detector installed in it, into which a small portion of the air flowing through the duct is fed. A duct smoke detector consists of a chamber and a detector installed in it, into which a small portion of the air flowing through the duct is fed.
- Page 11 IK-E376-001 repairs. During the operation life, the DUO-6046K detector should be subjected to periodical inspection which is executed in order to confirm the detector proper operation and its appropriate interoperation with the control panel. The inspection should be carried out at least once in 6 months.
- Page 12 IK-E376-001 c) turn around and take out the labirynth d) perform the necessary cleaning. A delicate brush as well as vacuum cleaner are recommended for cleaning works. Compressed air can be possibly used. It is permitted to wash the labyrinth with warm water with addition of washing-up liquid.
-
Page 13: Detector Installation
This should be noted, especially when installing housings in long ducts and tunnels. DUO-6046K duct smoke detector and inlet and exhaust tubes are purchased as a set. Bolt the tubes to the housing before installing the cover. - Page 14 IK-E376-001 Fig. 4 Mounting with mounting brackets SFL-1 (supplied together with DUO-6046K) Rys. 5 Installing the intake sampling tube outlet After fixing the housing on the duct, gently screw the outlet of the intake sampling tube inside the cover so that its outlet faces the detector placed in the socket.
- Page 15 IK-E376-001 The DUO-6046 is then installed in the G-40 base. The method of connecting the loop is described in the Installation and Maintenance Manual for the G-40 base. Additional optical signalling of a single detector or a group of detectors can be obtained by connecting the WZ-31 remote alarm indicator: - standard configuration of remote alarm indicator, Fig.6 Wiring diagram for detector operating in supplementary mode zero.
-
Page 16: Storage And Transportation
9 STORAGE AND TRANSPORTATION Storage DUO-6046K duct smoke detectors should be kept in closed premises free of caustic gases and vapours at the temperature between +0 °C and +40 °C, and relative humidity not exceeding 80 % at +35 °C.
