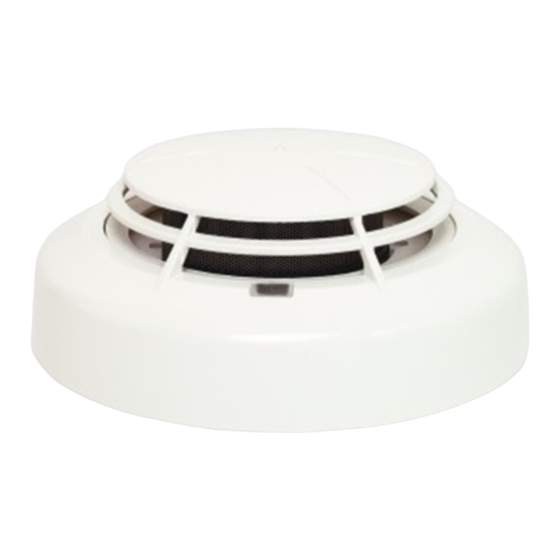

- Page 1 DUT-6046 UNIVERSAL SMOKE AND HEAT DETECTOR POLON 4000 and POLON 6000 INTERACTIVE FIRE DETECTION AND ALARM SYSTEM _________________________________________________________________________________ INSTALLATION AND MAINTENANCE MANUAL IK-E336-001GD III A Edition...
- Page 2 NOTE: The manufacturer reserves the right to change specifications of products at any time without prior notice. PURPOSE The DUT-6046 universal addressable smoke and heat detector is designed for detection of fire initial temperature rise is observed. phase when smoke occurs and/or It is characterised by a high resistance against air movement and pressure change.
-
Page 3: Technical Specifications
PRINCIPLE OF OPERATION The DUT-6046 detector operation basis is the Tyndall effect – light ray scattering on smoke particles. When smoke particles penetrate the measuring chamber, they reflect the light emitted by the transmitting diode. - Page 4 IK-E336-001GB settled technical alarm threshold is exceeded, the detector sends information to the panel about the measurement chamber partial contamination in order to inform service teams of a necessity to undertake appropriate actions. The detector is equipped with an internal short circuit isolator that cuts off an efficient detection line from the neighbouring shorted section what enables further undisturbed detector operation.
- Page 5 When the tester head is applied to the detector, the detector starts flashing its yellow LED, which indicates correct communication with the control panel. The DUT-6046 smoke detector long-lasting operation may result in dust accumulation inside its smoke sensor. After exceeding the self-regulation range due to the smoke sensor contamination progress, the detector triggers the technical alarm mode sending excessive contamination information to the control panel.
- Page 6 IK-E336-001GB a) press the latch (Fig. 1), turn the cover right in the basket until it is taken out; b) remove the net from the labyrinth; c) turn and take the labyrinth out; d) perform the necessary cleaning. A delicate brush as well as a vacuum cleaner are recommended for cleaning works; compressed air can be possibly used.
-
Page 7: Detector Installation
Fig. 2 Detector elements after dismantling DETECTOR INSTALLATION The DUT-6046 detectors are installed (height, arrangement) according to the settled guidelines. They are mounted in premises where a smoke and/or a temperature rise may occur when a fire starts to develop. - Page 8 IK-E336-001GB Note: The detectors should not be installed in premises of corrosive atmosphere, containing caustic gases and vapours as well as dust. Steam condensation on detectors is impermissible. The detectors are installed in G-40 bases. The detection line connection method is described in the G-40 base installation and maintenance manual.
-
Page 9: Safety Conditions
STORAGE AND TRANSPORTATION 10.1 Storage The DUT-6046 detectors should be kept in closed premises free of caustic gases and vapours at the temperature between +0 °C and +40 °C, and relative humidity not exceeding 80 % at +35 °C. In the time of storing, the detectors should not be exposed to either direct sunlight or heat from heating equipment. - Page 10 IK-E336-001GB Fig. 3 Clamps of base interoperating with DUT-6046 plug IK-E336-001GB/10.18...
- Page 11 IK-E336-001GB...
- Page 12 IK-E336-001GB...
