- Page 1 IK-E324-001GB DOT-40 MULTI-SENSOR SMOKE AND HEAT DETECTOR _________________________________________________________________________________ INSTALLATION AND MAINTENANCE MANUAL IK-E324-001GB ID Edition...
- Page 2 IK-E324-001GB The DOT-40 multi-sensor smoke and heat detector, covered by this manual, complies with the requirements of the following European Union directives: 89/106/EWG - on construction goods; 2004/108/WE - on electromagnetic compatibility. The DOT-40 detector has been approved with the EC Certificate of Conformity No. 1438/CPD/0089, issued by the Scientific and Research Centre for Fire Protection (CNBOP) Józefów, Poland, an EU...
-
Page 3: Technical Specifications
IK-E324-001GB 1 PURPOSE The DOT-40 conventional multi-sensor smoke and heat detector is designed for detection of a fire temperature rise may be observed. initial phase when a smoke occurs and/or The detector is characterised by a high resistance level against wind movement and pressure change. It is especially suitable in fire protection of garages. -
Page 4: Design Descriptions

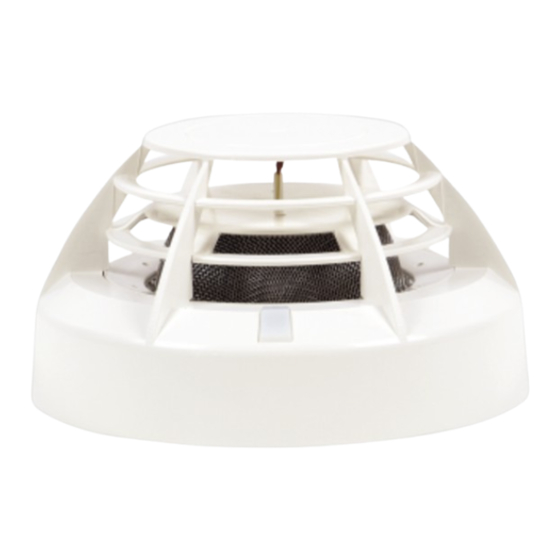

4 DESIGN DESCRIPTIONS The DOT-40 detector mechanical design is shown in Fig. 1. The device is equipped with two sensors that detect two fire factors: heat and smoke. Heat is detected by a temperature-sensitive resistor (thermistor) whereas smoke is detected by a special optical module consisting of a light transmitting diode and a receiving one. - Page 5 (generating no smoke). The DOT-40 detector long-lasting operation may result in dust accumulation inside its smoke sensor. After exceeding the self-regulation range due to the smoke sensor contamination progress, the...
- Page 6 IK-E324-001GB detector can trigger an alarm mode. That is why it is crucial to clean the detector labyrinth periodically. Fig. 2 Detector elements after dismantling The detector dismantling and assembling is depicted in Fig. 1. In order to dismantle the detector it is necessary to: a) pressing the net long tongue, turn the cover right in the basket until it is taken out;...
-
Page 7: Detector Installation
8 STORAGE AND TRANSPORTATION 8.1 Storage The DOT-40 detectors should be kept in closed premises free of caustic gases and vapours at the temperature between +0 °C and +40 °C, and relative humidity not exceeding 80 % at +35 °C. - Page 8 IK-E324-001GB 8.2 Transportation The DOT-40 detectors should be carried in closed transport means spaces, in packing that meets the requirements of transportation regulations in force. The temperature during transportation should not be lower than -40 °C and higher than +70 °C, and relative humidity should not be higher than 95% at + 45 °C or 80% at +70 °C.
- Page 9 IK-E324-001GB...
- Page 10 IK-E324-001GB...
