- Page 1 INTERACTIVE FIRE DETECTION AND FIRE ALARM SYSTEMS POLON 4000 & POLON 6000 UNIVERSAL SMOKE DETECTOR DUO-6000 TYPE versions DUO-6046, DUO-6646 & DUO-6043 Installation and Maintenance Manual IK-E360-001GB Issue 1B...
- Page 2 Failure to follow the instructions included in this manual may be dangerous or result in the violation of applicable regulations. As the manufacturer, Polon-Alfa is not liable for any damages resulting from the improper device operation that is not in accordance with this manual.
- Page 3 IK-E360-001GB Polon-Alfa S.A. 85-861 Bydgoszcz, ul. Glinki 155 1438 1438-CPR-0474 Universal smoke detectors DUO-6046 , and DUO-6043 , DUO-6646 EN 54-7 EN 54-17 Declaration of Performance no. 1/E360/2016/PL Harmonised technical specification EN 54-7:2000 + Product essential characteristic Performance A1:2002 + A2:2006...
- Page 4 IK-E360-001GB Harmonised technical specification EN 54-7:2000 + Product essential characteristic Performance A1:2002 + A2:2006 chapter Protection against foreign body ingress Pass Labelling Pass Technical documentation Pass 4.10 Additional requirements for software-controlled detectors Pass 4.11 Power supply voltage tolerance Power supply parameter changes (resistance) Pass Durability, operation reliability and reaction delay;...
- Page 5 IK-E360-001GB Harmonised technical specification EN 54-17:2005 + Product essential characteristic Performance AC:2007 Chapter Efficiency in fire conditions Reproducibility Pass Operation reliability Requirements Pass Durability and operation reliability: heat resistance Dry heat resistance Pass Low temperature resistance Pass Durability and operation reliability: vibration resistance Single impact resistance Pass Impact resistance...
-
Page 6: Technical Data

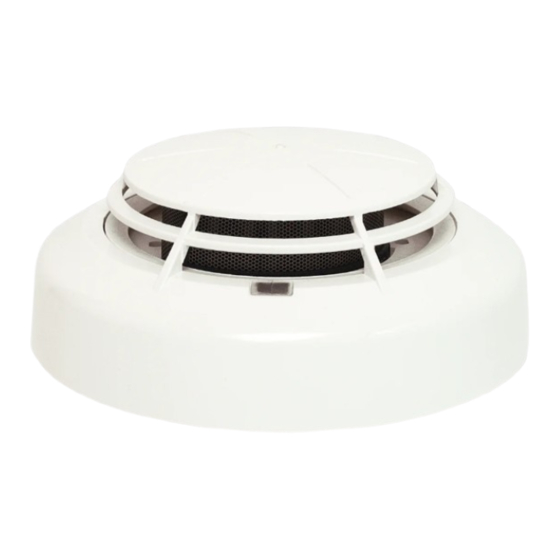

IK-E360-001GB 1 DESIGN DUO-6046, DUO-6646 and DUO-6043 universal smoke detectors are designed to detect the initial stage of fire, where smoke appears. It features high resistance to air movement and pressure changes. The division of detector types is based on their compatibility with different control panels and systems, and it is presented in the table below. -
Page 7: Description Of The Operation
IK-E360-001GB prevents external light from getting into the detection system. Metal mesh prevents small insects and larger contaminants from entering the detection system. The element is located inside a white plastic enclosure, which consists of a basket, a detector shield and a screen. The detector works with G-40 base to which detection line is connected. -
Page 8: Operating Conditions
IK-E360-001GB 5 OPERATING CONDITIONS During operation of detectors do not allow to form dew and rime on the detector surface and protect it against excessive dust contamination. When carrying out any repair work, the detector must be removed or properly secured with the shield provided for this purpose. - Page 9 IK-E360-001GB Figure 1. Underside view of the detector Figure 2. Detector components after disassembly 6 DETECTOR OPERATING MODES The configuration of the detectors operating mode depends on the system (4000 or 6000) where the detector operates. Its configuration for the 4000 system includes only smoke sensor setting, while in case of 6000 system it additionally includes the WZ output setting.
- Page 10 IK-E360-001GB 6.1 OPERATION IN THE 4000 SYSTEM The detector features several operating modes (apart from control panel alarm variants) that allow the user to better adjust its characteristics to operating conditions in a specific environment: Smoke sensor selection (at least 1 must be selected): –...
-
Page 11: Detector Installation
IK-E360-001GB 7 DETECTOR INSTALLATION Detectors are installed (in terms of height, placement) according to SITP guidelines WP-02. The detectors are to be installed in rooms where equipment and stored materials will emit visible smoke in case of fire. If it is difficult to determine the most probable fire factor (smoke type) that may be formed during the first phase of fire development, appropriate tests with several types of detectors should be carried out (at the design stage) or mixed protection with e.g. - Page 12 Maintenance and periodic inspections must be carried out by personnel that is authorised or trained by Polon-Alfa. All repairs must be carried out by the manufacturer. Polon-Alfa is not responsible for the operation of the equipment maintained and repaired by unauthorized personnel. 8.2 Work at height Work at height related to the installation of detectors must be carried out with special care using equipment and tools in sound condition.
