SM24TBT2DPB
Managed PoE++ Switch, (24) 10/100/100Base-T ports +
(2) 100/1000Base-X SFP/RJ45 Combo Ports
Quick Start Guide
Introduction
The SM24TBT2DPB Managed Gigabit Ethernet PoE++ Switches have (24) 10/100/1000Base-T Ports + (2)
100/1000Base-X SFP/RJ-45 Combo Ports and 19" rack mount brackets.
The SM24TBT2DPB-DE has one power supply and no Saf-D adapter cable or power cord (for Digital Electricity
applications only). The SM24TBT2DPB-xx has one power supply; includes one Saf-D adapter cable, and country-specific
power cord. The SM24TBT2DPB-2XPS-DE has two power supplies and no Saf-D adapter cable or power cord (for Digital
Electricity applications only). The SM24TBT2DPB-2XPS-xx has two power supplies; two Saf-D adapter cables, and
country-specific power cords. Model differences are noted where they apply.
Note: See the full Install Guide for important information on Safety Warnings & Cautions, Features, Specifications, Front
Panel and LED descriptions, Mode/Reset button, Back Panel, Related Manuals, Installation, Package Contents, SFP
Modules, Grounding, Power Supply Cautions & Warnings, Saf-D Connector, Connecting & disconnecting AC Power, DC
Output Connector & Requirements, Temperature & AC Input Requirements, Initial Switch Config, Electrical Safety
Warnings, Troubleshooting, Regulatory Agency, and Warranty.

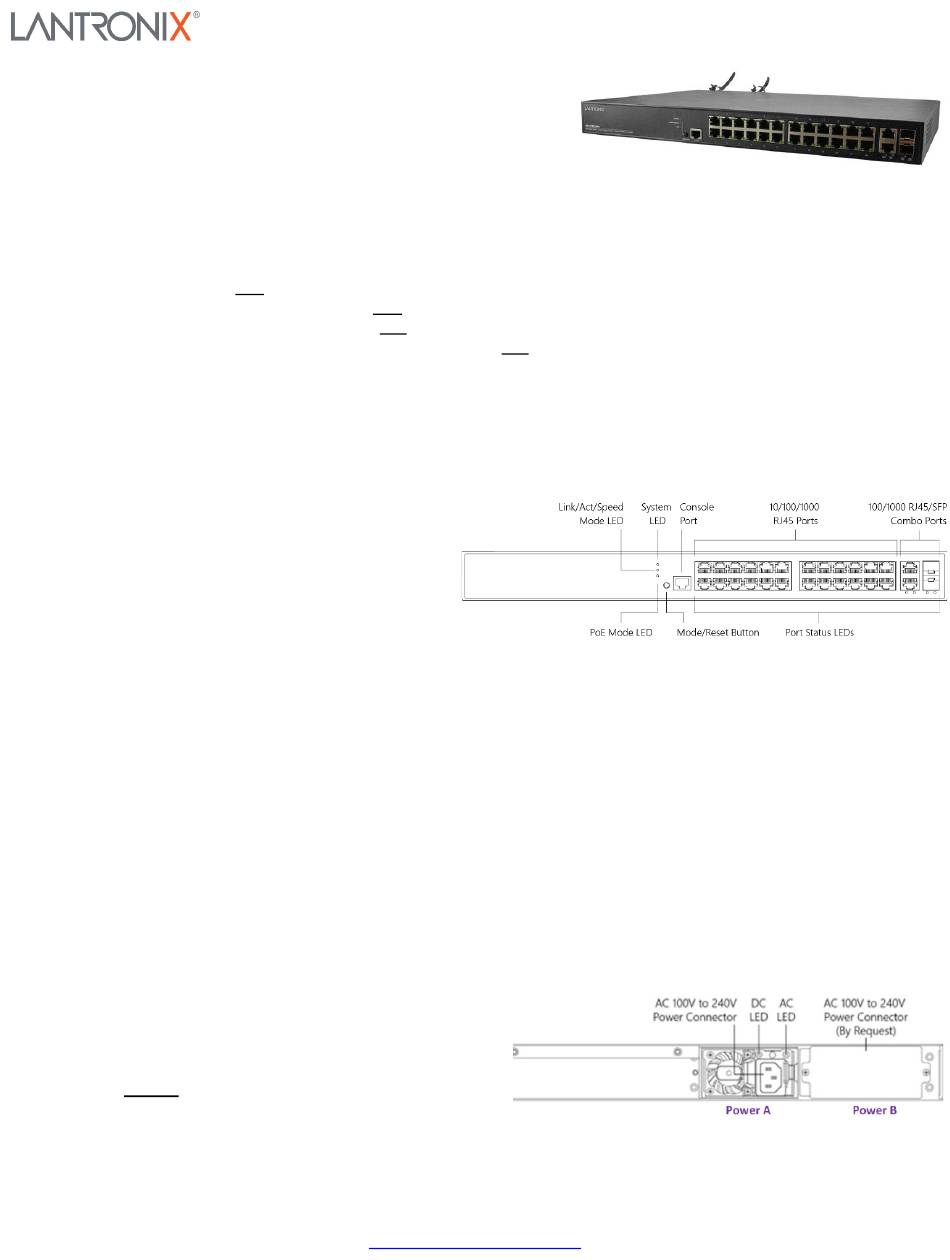

LED Descriptions
:
There are several types of front panel LEDs:
SYS (System) LED indicates if the switch is powered up
correctly or if there is a system alarm triggered for
troubleshooting. Green On = switch is powered ON
correctly. Green Off = switch is not receiving power.
Red On = An abnormal state, such as exceeding
operating temperature range, was detected in the switch.
Mode LEDs indicate the mode of all RJ45/SFP ports on the switch. You can press the Mode/Reset button alternately to
switch between the two different modes (Link/Activity/Speed mode and PoE mode).
Link/Act/Speed Green LED On = Port Status LEDs display link status, network activity and speed of each port.
RJ45 green = 1000 Mbps; amber = 10/100 Mbps. SFP green = 1000 Mbps; amber = 100 Mbps.
PoE LED Green On = RJ45 Port Status LEDs display PoE powering status of each port.
Power Supply LEDs on the back panel indicate Power Supply status. DC Green On = DC input is ready.
Red On = DC input has failed. Off = DC input is off. AC Green On = AC input is ready. Red On = AC input has failed.
Red Off = AC output is off.
Port Status LEDs: indicate the current status of each RJ45 and SFP port. Press the Mode button for less than 2 seconds
to change the LED mode to Link/Act/Speed Mode or PoE Mode. See the Install Guide for LED behavior.
Mode/Reset Button
Change LED Mode : press the button for 0~2 seconds; the SYS LED lights green and the Port Status LED changes
based on the mode selected.
Reset the Switch : press the button for 2~7 seconds; the SYS LED blinks green, and all Port Status LEDs are off.
Restore to Defaults : press the button for 7~12 seconds; the SYS LED blinks green, and all Port Status LEDs stay on.
Back Panel :
The back panel provides two power supply slots
and an airflow opening. Caution: Be sure to leave adequate
room for the airflow opening.
Installation
: Before beginning installation read the Cautions
and Warnings in the Install Guide.
Package Contents
: Verify you received a switch with 1 power supply included, two 19" rack mount brackets, 8 screws,
a DB9F to RJ45 cable, 4 rubber feet, 1 LTX card, and 1 printed Quick Start Guide. Depending on the model ordered, you
may have also received one or two Saf-D-Grid adapter cable(s) and 1 or 2 country-specific IEC adapter power cord(s).
33844 Rev. B https://www.lantronix.com
