Summary of Contents for Omega OCI302TCOM

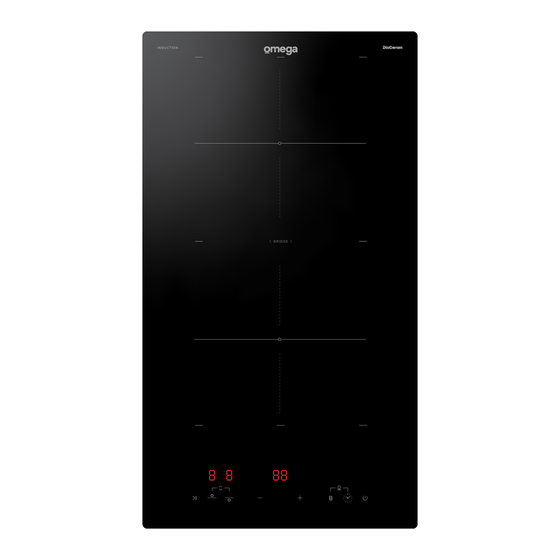

- Page 1 Designed to Enhance E S T. � 9 8� Installation + User Manual OCI302TCOM / OCI604TCOM Induction Cooktops 30 & 60cm omegaappliances.com.au V1.3 0924...
-
Page 2: Table Of Contents
User Manual Induction Cooktops Contents Welcome Safety Information Installation Instructions �2 Technical Specifications Control Panel Operating Your Cooktop Cooking Guidelines Care & Maintenance Troubleshooting Purchase Details Warranty Information... -
Page 3: Welcome
It is important that you read through the following user manual thoroughly, in order to familiarise yourself with the installation and operation requirements of your appliance, and to ensure optimum performance. Again, thank you for choosing an Omega appliance and we look forward to being of service to you. Kind Regards,... -
Page 4: Safety Information
Important Safety Instructions Before Using Your Appliance Read Carefully and Keep for Future Reference This manual explains the proper use of your new Omega Induction Cooktop. Please read this manual carefully before Read this manual thoroughly before first use, even if you using the product. -
Page 5: Health Hazard
Designed to Enhance User Manual Induction Cooktops Safety Information Health Hazard Electrical Connection WARNING: Follow these instructions carefully to avoid potential WARNING: Risk of fire and electrical shock! injury or death. It is important to use your cooktop safely. Follow these instructions carefully to avoid potential electric shock, fire •... -
Page 6: Before Installation
User Manual Induction Cooktops Safety Information Before Installation Appliance Use • To avoid a hazard, this appliance must be installed according • The appliance and its accessible parts become hot when to the instructions in this user manual for installation. in use. -
Page 7: Care And Cleaning
Designed to Enhance User Manual Induction Cooktops Safety Information Care & Cleaning • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. Failure to follow this CAUTION: Risk of injury or damage to the cooktop. -
Page 8: Disposal Of The Appliance
User Manual Induction Cooktops Safety Information Installation Instructions Disposal of the Appliance Important Safety Instructions • Disconnect the appliance from the mains supply. • IMPORTANT: If your appliance doesn't include a 10 amp power plug. It must be installed by an authorised technician •... - Page 9 • Ensure that there is adequate flow of air from outside the Model Width (W) Depth (D) cabinetry to the base of the cooktop. • The isolating switch is easily accessible by the customer. OCI302TCOM 268mm 500mm • Do not use any kind of silicon sealant to seal the WARNING: appliance against the benchtop.
-
Page 10: Ensuring Adequate Ventilation
User Manual Induction Cooktops Installation Instructions Ensuring Adequate Ventilation Applying the Fixing Brackets *NOTE: Please refer to your rangehood’s user manual for the The unit should be placed on a stable, smooth surface (such exact minimum clearances from the top of the cooktop surface as the packaging). - Page 11 • The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. • The cable must not be bent or compressed. • The cable must be checked regularly and only replaced by a proper qualified person. For model OCI302TCOM For model OCI604TCOM...
-
Page 12: Technical Specifications
User Manual Induction Cooktops Technical Specifications Specifications Chart: OCI302TCOM Model Number OCI302TCOM Cooktop Finish Black DiaCeram® Ceramic Glass Controls Touch Controls Power Levels 9 Power Levels + Boost Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 2700–3300W... - Page 13 Designed to Enhance User Manual Induction Cooktops Technical Specifications Specifications Chart: OCI604TCOM Model Number OCI604TCOM Cooktop Finish Black DiaCeram® Ceramic Glass Controls Touch & Slide Controls Power Levels 9 Power Levels + Boost Rated Voltage 220–240V~ or 380-415V 3N~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 6400 W...
-
Page 14: Control Panel
User Manual Induction Cooktops Control Panel A. Power Button D. Power Boost Button G. Start / Pause Button B. Power Level Adjustment Controls E. Child Lock Button C. Timer Adjustment / Selector F. Zone Selector ↑ OCI302TCOM ↑ OCI604TCOM ↑... -
Page 15: Operating Your Cooktop
Designed to Enhance User Manual Induction Cooktops Operating Your Cooktop Introducing Induction Cooking Verifying Compatibility of Cookware This innovative and efficient cooking method is designed to offer To determine if your cookware is compatible with induction safety, advanced functionality, and cost-effectiveness. cooking, you can perform a magnet test. -
Page 16: Choosing The Right Cookware
User Manual Induction Cooktops Operating Your Cooktop Choosing the Right Cookware • Do not use cookware with jagged edges, coarse or uneven • The FlexZone can not only use griddle plates, you can surfaces, chipped bottoms or a curved base. also utilise larger cookware specially designed for that specific area. - Page 17 User Manual Induction Cooktops Operating Your Cooktop Getting Started with Cooking OCI302TCOM 1. Power On Touch the ON/OFF symbol for 3 seconds to activate the cooktop. 2. Preparing the Cooking Surface Place an induction compatible pan or pot on the desired cooking zone. Please ensure both the bottom of the pan and the cooktop's surface are clean and dry for optimal cooking performance.
- Page 18 User Manual Induction Cooktops Operating Your Cooktop Getting Started with Cooking OCI604TCOM 1. Power On Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show “–” or “– –”, indicating that the induction cooktop has entered the state of standby mode.
- Page 19 User Manual Induction Cooktops Operating Your Cooktop When Finished Cooking For models OCI302TCOM 1. Switching Off Individual Cooking Zones Press the cooking zone selection symbol to activate it (the number of the selected zone flashes). Press the power control button to gradually adjust the power to 0.
- Page 20 User Manual Induction Cooktops Operating Your Cooktop When Finished Cooking OCI604TCOM 1. Select the Zone you Wish to Turn Off Touching the heating zone selection control that you wish to switch off 2. Switching Off Individual Cooking Zones Turn the cooking zone off by touching the slider to “|”. Make sure the display shows”0”...
- Page 21 Designed to Enhance User Manual Induction Cooktops Operating Your Cooktop Utilising the Power Boost Function OCI302TCOM 1. Selecting the Cooking Zone Press the cooking zone selection button to activate it (the digit of the selected zone flashes). 2. Activating Boost Function Then press and hold the Power Boost button key until the power level display shows “P”, which signals that the selected cooking zone is set to maximum power.
- Page 22 User Manual Induction Cooktops Operating Your Cooktop Utilising the Power Boost Function For OCI604TCOM 1. Selecting the Cooking Zone Touching the heating zone selection control. 2. Activating Boost Function Touch the power boost control, the zone indicator show “P” which signals that the selected cooking zone is set to maximum power.
-
Page 23: Using The Timer Function
Using the Timer as a Minute Minder OCI604TCOM OCI302TCOM • Touching the heating zone selection control that you want NOTE: This function can be set only when the cooking zone has to set the timer for, the “10” will show in the timer display and not been selected. -
Page 24: Cancelling The Timer
Operating Your Cooktop Cancelling the Timer: The Auto-off Safety Feature OCI604TCOM For models OCI302TCOM & OCI604TCOM • Select the heating zone for which you want to cancel The cooktop includes a safety feature called auto-off safety. the timer. This activates when a cooking zone is left unintentionally on. - Page 25 Induction Cooktops Operating Your Cooktop Using the FlexZones Using the Start / Pause function Only for model OCI302TCOM Only for model OCI302TCOM • This function allows the FlexZone cooking areas to be used Activating Pause as a single large zone or as two independent zones, adapting to diverse cooking requirements.
-
Page 26: Cooking Guidelines
User Manual Induction Cooktops Cooking Guidelines Stir-Frying Steps WARNING: Frying Caution • Choose a induction compatible flat-based wok or a large Be cautious when frying, especially with Boost mode, as oil and frying pan. fats heat up rapidly. At extremely high temperatures, there's a risk of spontaneous ignition, posing a serious fire hazard. -
Page 27: Care And Maintenance
Designed to Enhance User Manual Induction Cooktops Care & Maintenance Care and Cleaning Guide Marks, Blemishes or Spots Solution Warning Everyday soiling on glass (fingerprints, 1. Switch the power to the cooktop off. • When the power to the cooktop is marks, stains left by food or non-sugary switched off, there will be no ‘hot 2. -
Page 28: Troubleshooting
User Manual Induction Cooktops Troubleshooting For Minor Faults Problem Possible Cause Solution The cooktop cannot be powered on. Ensure the cooker is connected to the power, and is switched on. No power is going to the cooktop. Check if there is a power outage in your home or area. - Page 29 (typically alternating with one or two digits by calling 1300 11 4357 or by emailing in the cooking timer display). support@residentiagroup.com.au. Cooktop Fault Codes & Solutions OCI302TCOM Fault Code Possible Cause Solution Ceramic temperature sensor failure board - disconnected circuit...
- Page 30 User Manual Induction Cooktops Troubleshooting Wait for the IGBT temperature to return to normal. Touch the „ON/OFF“ button to restart the unit. High temperature IGBT Check that the fan is running smoothly. If not, replace the fan The supply voltage is higher than the rated voltage Check that the power supply is normal Power on after power on is normal The supply voltage is higher than the rated voltage...
-
Page 31: Purchase Details
Designed to Enhance User Manual Induction Cooktops Purchase Details Attach your receipt to this page For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. Store Details Store Name Address... -
Page 32: Warranty Information
User Manual Induction Cooktops Warranty Information WARRANTY TERMS AND CONDITIONS In this warranty INDUCTION COOkTOPS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the product ‘... - Page 33 Designed to Enhance User Manual Induction Cooktops Warranty Information For Appliances and services provided by Residentia You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia Group or its ASR. If you Group in Australia, the Appliances come with a guarantee reside outside of the service area, you will bear the cost of: by Residentia Group that cannot be excluded under the travel of an authorised representative;...
- Page 34 User Manual Induction Cooktops Notes...
- Page 35 Designed to Enhance User Manual Induction Cooktops Notes...
- Page 36 E S T . 1 9 8 1 Designed to Enhance...
