Summary of Contents for Omega OCI64B

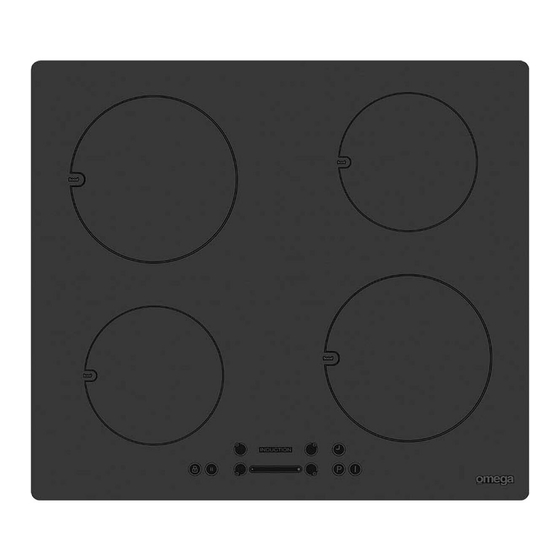

- Page 1 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Induction Cooktop OCI64B 1 ...
- Page 2 2 ...
-
Page 3: Table Of Contents
CONGRATULATIONS Welcome to the Omega Kitchen Community and thank you for choosing one of our many fantastic cooking appliances. We are confident that you will now be able to meet your cooking needs. Before you use the cooktop we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Appliance Details
Relevant Sizes: LENGTH (mm) WIDTH (mm) HEIGHT (mm) Cooktop Size Cut-out Size Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available. 5 ... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage, for which the manufacturer accepts no responsibility. ELECTRICAL INSTALLATION Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the oven’s power rating (also indicated on the... -
Page 7: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in, during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical cooktop will meet your needs in all respects. - Page 8 INSTALLATION OF BUILT IN COOKTOP In order to prevent leakage of any liquids on the counter, a special sealing tape is supplied together with your cooktop. Apply this seal around the bottom edge of the cooktop (see below). The brackets are installed to hold the cooktop in place.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS The basic layout of the induction cooktop is shown in the diagram below. The induction cooktop appliance is operated by touching buttons, with the functions confirmed by LED displays and acoustic signals. Turning On and Turning Off the Cooktop Appliance NOTE: Do not operate the cooktop without first placing a suitably sized cooking vessel containing food on the appropriate cooking zone. - Page 10 The Boost Function The Boost function is available at each cooking zone. It is used to speed up the initial heat up time (say boil a pot of water). Select a cooking zone and set the temperature. While the decimal point on the display is lit, press the Boost button.
- Page 11 Operating Time Limitation The cooktop control has a limitation on the operating time. If the heat setting for a hotplate has not been changed for a certain time, then the hotplate will turn off automatically (a “0“ is displayed for 10 seconds, then the residual heat sign “H”...
-
Page 12: Cleaning
NOT covered under warranty. A division of Shriro Australia Pty Ltd 104 Vanessa St Kingsgrove NSW 2208 IN AUSTRALIA: 1300 795 572 IN NEW ZEALAND: (09) 415 6000 www.omegaapliances.com.au IM REF OCI64B 12/2017/05FC FOR INDOOR USE ONLY 12 ...
