Summary of Contents for Omega OCI64

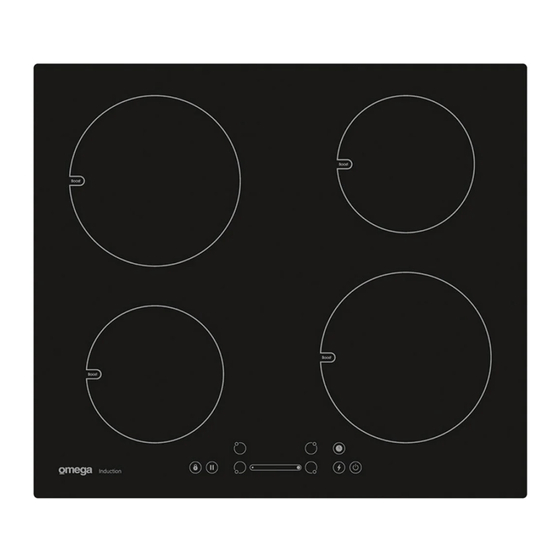

- Page 1 Instruction Manual Induction Cooktop Model OCI64...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
Important Safety Warnings IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. - Page 5 Cooking zones should not be switched on without cookware placed on it. Do not place empty cookware onto the cooking zones when in use. 19. If any cracking is noticed on the cooktop, turn the appliance off immediately and call your Omega Service Centre.
-
Page 6: Appliance Details
This information can be found on the rating plate (identification plate) affixed to the underside of the appliance. SIZES: Relevant Sizes: LENGTH (mm) WIDTH (mm) HEIGHT (mm) Cooktop Size Cut-out Size Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. -
Page 7: Electrical Connections
Electrical Connections LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage, for which the manufacturer accepts no responsibility. ELECTRICAL INSTALLATION Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the oven’s power rating (also indicated on the identification plate). -
Page 8: Installation Instruction
Installation Instruction The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in, during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical cooktop will meet your needs in all respects. - Page 9 Installation Instruction INSTALLATION OF BUILT IN COOKTOP In order to prevent leakage of any liquids on the counter, a special sealing tape is supplied together with your cooktop. Apply this seal around the bottom edge of the cooktop (see below). The brackets are installed to hold the cooktop in place. Cut out a hole in the bench top as shown below.
- Page 10 Installation Instruction The bottom of the cooktop reaches temperatures above 95°C. A board must be placed a minimum of 130mm below the cooktop that prevents anyone from touching the underside of the cooktop. Take care that there is adequate ventilation for air exchange to the inductive elements.
-
Page 11: Operating Instruction
Operating Instruction The basic layout of the induction cooktop is shown in the diagram below. The induction cooktop appliance is operated by touching buttons, with the functions confirmed by LED displays and acoustic signals. Turning On and Turning Off the Cooktop Appliance NOTE: Do not operate the cooktop without first placing a suitably sized cooking vessel containing food on the appropriate cooking zone. - Page 12 Operating Instruction Selecting A Cooking Zone Select a single cooking zone by pressing the corresponding Heater Selection Button, and the Decimal Point of the chosen cooking zone turns on. For the selected cooking zone, you can set or adjust the heat level between 1-9 by touching the Sliding Button at the appropriate point.
- Page 13 Operating Instruction Locking The Keys The child lock is used to set the appliance up so when it is first turned on, it is in a locked mode (which must be unlocked before a cooking function can take place). While locked, touch modifications (e.g. increase heat settings) and others will not be possible.
- Page 14 Operating Instruction Operating Time Limitation The cooktop control has a limitation on the operating time. If the heat setting for a hotplate has not been changed for a certain time, then the hotplate will turn off automatically (a “0“ is displayed for 10 seconds, then the residual heat sign “H”...
-
Page 15: Cleaning And Maintenance
Cleaning and Maintenance NOTE: Cleaning and maintenance operations must only be carried out when the cooktop is cool (all residual heat indicators are off). The appliance should be disconnected from the power outlet or turned off at your isolation switch before commencing any cleaning process. Do not use plastic, plastic coated or aluminium cooking equipment on this appliance. -
Page 16: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions
The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer.
