Summary of Contents for Omega OCI604PPTZ

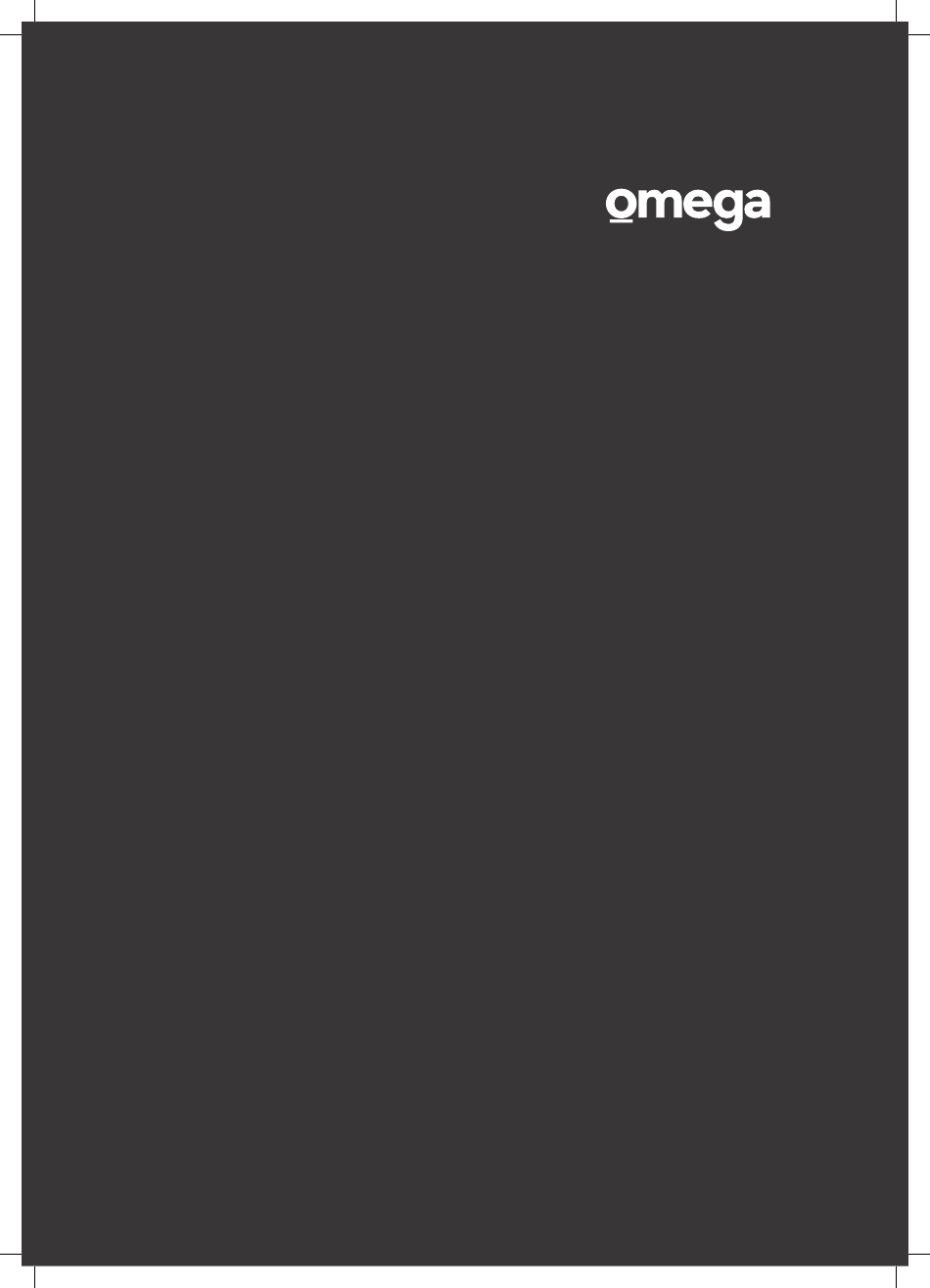

- Page 1 Designed to Enhance E S T. � 9 8� Installation + User Manual OCI604PPTZ / OCI604TZ / OCI704PPTZ / / OCI905TZ / OCI903FTZ Induction Cooktops 60, 70 & 90cm omegaappliances.com.au V1.6 0424...
-
Page 2: Table Of Contents
User Manual Induction Cooktops Contents Welcome Safety Information Installation Instructions �2 Technical Specifications Control Panel Operating Your Cooktop Cooking Guidelines Care & Maintenance Troubleshooting Purchase Details Warranty Information... -
Page 3: Welcome
It is important that you read through the following user manual thoroughly, in order to familiarise yourself with the installation and operation requirements of your appliance, and to ensure optimum performance. Again, thank you for choosing an Omega appliance and we look forward to being of service to you. Kind Regards,... -
Page 4: Safety Information
Important Safety Instructions Before Using Your Appliance Read Carefully and Keep for Future Reference This manual explains the proper use of your new Omega Induction Cooktop. Please read this manual carefully before Read this manual thoroughly before first use, even if you using the product. - Page 5 User Manual Induction Cooktops Designed to Enhance Safety Information Health Hazard Electrical Connection WARNING: Follow these instructions carefully to avoid potential WARNING: Risk of fire and electrical shock! injury or death. It is important to use your cooktop safely. Follow these instructions carefully to avoid potential electric shock, fire •...
- Page 6 User Manual Induction Cooktops Safety Information Before Installation Appliance Use • To avoid a hazard, this appliance must be installed according • The appliance and its accessible parts become hot when to the instructions in this user manual for installation. in use.
- Page 7 User Manual Induction Cooktops Designed to Enhance Safety Information Care & Cleaning • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. Failure to follow this CAUTION: Risk of injury or damage to the cooktop.
-
Page 8: Installation Instructions
User Manual Induction Cooktops Safety Information Installation Instructions Disposal of the Appliance Important Safety Instructions • Disconnect the appliance from the mains supply. • If your appliance doesn't include a 10 amp IMPORTANT: power plug. It must be installed by an authorised technician •... - Page 9 • Ensure that there is adequate flow of air from outside the Model Width (W) Depth (D) cabinetry to the base of the cooktop. • The isolating switch is easily accessible by the customer. OCI604PPTZ 560mm 490mm • WARNING: Do not use any kind of silicon sealant to seal the appliance against the benchtop.
- Page 10 User Manual Induction Cooktops Installation Instructions Ensuring Adequate Ventilation Applying the Fixing Brackets *NOTE: Please refer to your rangehood’s user manual for the The unit should be placed on a stable, smooth surface (such exact minimum clearances from the top of the cooktop surface as the packaging).
- Page 11 • The cable must be checked regularly and only replaced by a proper qualified person. • The cable must be checked regularly and only replaced by a proper qualified person. For model OCI604TZ For models OCI604PPTZ & OCI704PPTZ For model OCI905TZ For model OCI903FTZ...
-
Page 12: Technical Specifications
User Manual Induction Cooktops Technical Specifications Specifications Chart: OCI604PPTZ Model Number OCI604PPTZ Cooktop Finish Black EuroKera® Ceramic Glass with Midnight Side Trim Controls Touch Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz... - Page 13 User Manual Induction Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCI604TZ Model Number OCI604TZ Cooktop Finish Black EuroKera® Ceramic Glass with Midnight Side Trim Controls Touch Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 6400 W Cooking Zones...
- Page 14 User Manual Induction Cooktops Technical Specifications Specifications Chart: OCI704PPTZ Model Number OCI704PPTZ Cooktop Finish Black DiaCeram® Ceramic Glass with Midnight Side Trim Controls Touch Controls Power Levels 9 Power Levels Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 2400 W Cooking Zones...
- Page 15 User Manual Induction Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCI905TZ Model Number OCI905TZ Cooktop Finish Black Schott Ceran® Ceramic Glass with Midnight Side Trim Controls Touch & Slide Controls Power Levels 9 Power Levels + Boost Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz...
- Page 16 User Manual Induction Cooktops Technical Specifications Specifications Chart: OCI903FTZ Model Number OCI903FTZ Cooktop Finish Black Schott Ceran® Ceramic Glass with Midnight Side Trim Controls Touch & Slide Controls Power Levels 9 Power Levels + Boost Rated Voltage 220–240V~ Rated Frequency 50 Hz or 60 Hz Installed Electric Power 10800 W...
-
Page 17: Control Panel
B. Power Level Adjustment Controls E. Child Lock Button H. Start / Pause Button C. Timer Adjustment / Selector F. Zone Selector ↑ OCI604PPTZ & OCI704PPTZ ↑ OCI604TZ ↑ OCI905TZ * Note: Power Boost is only available ↑ OCI903FTZ for the front left cooking zone. -
Page 18: Operating Your Cooktop
User Manual Induction Cooktops Operating Your Cooktop Introducing Induction Cooking Choice of Burner This innovative and efficient cooking method is designed to offer Below is a cookware size guide to use on your cooktop’s zones: safety, advanced functionality, and cost-effectiveness. •... - Page 19 User Manual Induction Cooktops Designed to Enhance Operating Your Cooktop Choosing the Right Cookware • Do not use cookware with jagged edges, coarse or uneven • The FlexZone can not only use griddle plates, you can surfaces, chipped bottoms or a curved base. also utilise larger cookware specially designed for that specific area.
- Page 20 3. Selecting the Cooking Zone (OCI604TZ only) • For OCI604PPTZ & OCI704PPTZ models, proceed by skipping this step. • For the OCI604TZ model, simply touch the Zone Selector button beside the desired cooking zone. Subsequently, an indicator adjacent to the selected key will start flashing.
- Page 21 User Manual Induction Cooktops Designed to Enhance Operating Your Cooktop Getting Started with Cooking For models OCI905TZ & OCI903FTZ 1. Power On Activate the cooktop by pressing the Power button. Upon activation, a single beep will sound, and all indicators will briefly display "–" for 1 second before turning off. This indicates that the cooktop has entered standby mode.
- Page 22 Induction Cooktops Operating Your Cooktop When Finished Cooking For models OCI604PPTZ, OCI604TZ & OCI704PPTZ 1. Switching Off Individual Cooking Zones Touch the Power Level Adjustment Controls "–" next to the desired cooking zone that you wish to switch off. Keep pressing the "–" button down to "0" on the control for the specific cooking zone.
- Page 23 User Manual Induction Cooktops Designed to Enhance Operating Your Cooktop When Finished Cooking For models OCI905TZ & OCI903FTZ 1. Switching Off Individual Cooking Zones Touch the Zone Selector button next to the desired cooking zone that you wish to switch off. Subsequently, an indicator adjacent to the selected key will start flashing. Touch and slide the Power Level Adjustment Controls down to "0".
- Page 24 Induction Cooktops Operating Your Cooktop Utilising the Power Boost Function For models OCI604PPTZ & OCI704PPTZ 1. Selecting the Cooking Zone Touch the Power Level Adjustment Controls "+" next to the cooking zone featuring the boost function (front left cooking zone).
- Page 25 User Manual Induction Cooktops Designed to Enhance Operating Your Cooktop Utilising the Power Boost Function For models OCI905TZ & OCI903FTZ 1. Selecting the Cooking Zone Touch the Zone Selector button next to the cooking zone featuring the boost function (front left cooking zone). 2.
- Page 26 99 minutes. cooking zones Using the Timer as a Minute Minder For models OCI604PPTZ & OCI704PPTZ NOTE: You can set the minute minder either before or after • Select the desired heating zone by touching its Zone adjusting the cooking zone power settings.
- Page 27 User Manual Induction Cooktops Designed to Enhance Operating Your Cooktop Using the Child Lock Function • Once the time is set, the countdown starts immediately, showing the remaining time on the display. A red dot on the power level indication signifies the selected zone. To prevent unintended use, such as accidental activation by children, you can activate the Child Lock feature.
- Page 28 User Manual Induction Cooktops Operating Your Cooktop Using the FlexZones Using the Keep Warm function Only for model OCI903FTZ Only for models OCI905TZ & OCI903FTZ • This function allows the FlexZone cooking areas to be used Activating the Keep Warm Function as a single large zone or as two independent zones, adapting to diverse cooking requirements.
-
Page 29: Cooking Guidelines
User Manual Induction Cooktops Designed to Enhance Cooking Guidelines Stir-Frying Steps WARNING: Frying Caution • Choose a induction compatible flat-based wok or a large Be cautious when frying, especially with Boost mode, as oil and frying pan. fats heat up rapidly. At extremely high temperatures, there's a risk of spontaneous ignition, posing a serious fire hazard. -
Page 30: Care & Maintenance
User Manual Induction Cooktops Care & Maintenance Care and Cleaning Guide Marks, Blemishes or Spots Solution Warning • When the power to the cooktop is Everyday soiling on glass (fingerprints, 1. Switch the power to the cooktop off. marks, stains left by food or non-sugary switched off, there will be no ‘hot 2. -
Page 31: Troubleshooting
User Manual Induction Cooktops Designed to Enhance Troubleshooting For Minor Faults Problem Possible Cause Solution The cooktop cannot be powered on. Ensure the cooker is connected to the power, and is switched on. No power is going to the cooktop. Check if there is a power outage in your home or area. - Page 32 User Manual Induction Cooktops Troubleshooting For Minor Faults Problem Possible Cause Solution Pans do not become hot and appears in The induction cooktop cannot detect Use cookware suitable for induction the display. the pan because it may not suitable for cooking.
-
Page 33: Purchase Details
User Manual Induction Cooktops Designed to Enhance Purchase Details Attach your receipt to this page For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. Store Details Store Name Address... -
Page 34: Warranty Information
User Manual Induction Cooktops Warranty Information WARRANTY TERMS AND CONDITIONS In this warranty INDUCTION COOKTOPS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the product ‘... - Page 35 User Manual Induction Cooktops Designed to Enhance Warranty Information You will bear the cost of transportation, travel and delivery of For Appliances and services provided by Residentia the Appliance to and from Residentia Group or its ASR. If you Group in Australia, the Appliances come with a guarantee reside outside of the service area, you will bear the cost of: by Residentia Group that cannot be excluded under the travel of an authorised representative;...
- Page 36 E S T . 1 9 8 1 Designed to Enhance...
