UNIVERSAL PRODUCT LINE: STEEL EXTERNALS
123C SERIES™, 4123C SERIES™,
223C SERIES™, 4223C SERIES™
SIZES: H, HL, K, KK, L, LL, LS, Q, QS
© 2024 Viking Pump, Inc. • Cedar Falls, IA

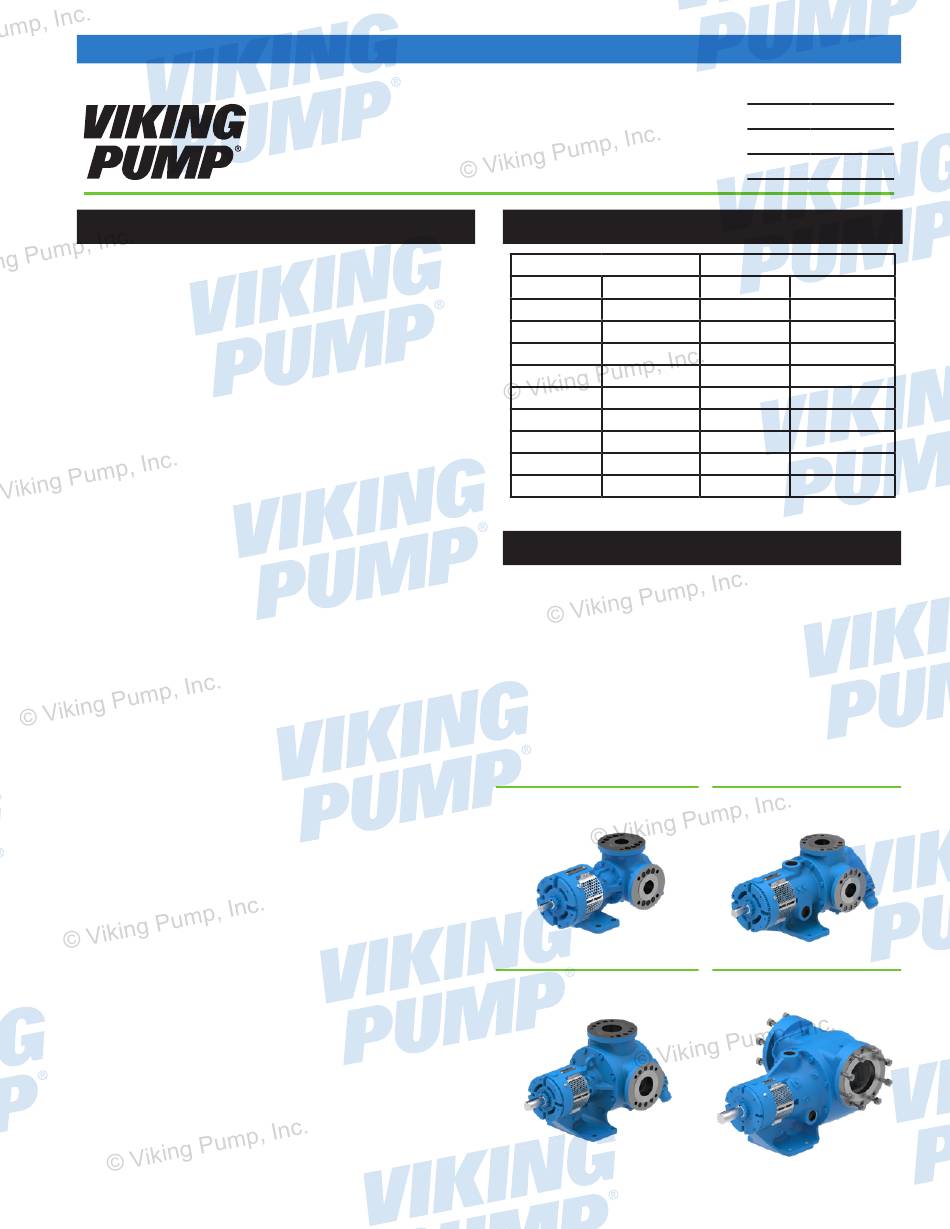

MODEL NUMBER CHART

NON-JACKETED
Packed
Mech. Seal
H123C
H4123C
HL123C
HL4123C
K123C
K4123C
KK123C
KK4123C
L123C
L4123C
LL123C
LL4123C
LS123C
LS4123C
Q123C
Q4123C
QS123C
QS4123C

INTRODUCTION

The illustrations used in this manual are for identification
purposes only and cannot be used for ordering parts.
Obtain a parts list from your Viking Pump
Always give a complete name of part, part number and
material with the model number and serial number of pump
when ordering repair parts. The unmounted pump or pump
unit model number and serial number are on the nameplate.
This manual only applies to the pump models specified in the
"Model Number Chart" on page 1. Pump specifications and
recommendations are listed in the Catalog Sections, which
are available at vikingpump.com.
FIGURE 1: H, HL SIZES
(HL123C SHOWN)
FIGURE 3: L, LL, LS SIZES
(LL123C SHOWN)
TSM
2300
Page
1 of 26
Issue
A
JACKETED
Packed
Mech. Seal
H223C
H4223C
HL223C
HL4223C
K223C
K4223C
KK223C
KK4223C
L223C
L4223C
LL223C
LL4223C
LS223C
LS4223C
Q223C
Q4223C
QS223C
QS4223C
representative.
®
FIGURE 2: K, KK SIZES
(KK4223C SHOWN)
FIGURE 4: Q, QS SIZES
(QS4223C SHOWN)
