- Page 1 R316-2 User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024...
- Page 2 (877) 740-8004 Our support team will respond to you as soon as possible. Always a surprise with Rexing Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...
- Page 3 Activate Your 18-Month Warranty & Choose Your Free Gift! Activate within 30 days of purchase to claim your free gift and extended limited 12-month warranty to 18 months. SCAN Scan the QR to Activate & Select Your Free Gift https://www.rexingusa.com/productreg/...
-
Page 4: What's In The Box
What’s in the box? R316-2 User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024 Rexing R316-2 Dash Cam Cable Management Kit Car Power Connector (12ft) User Manual Suction cup mount with GPS module... -
Page 5: Camera Overview

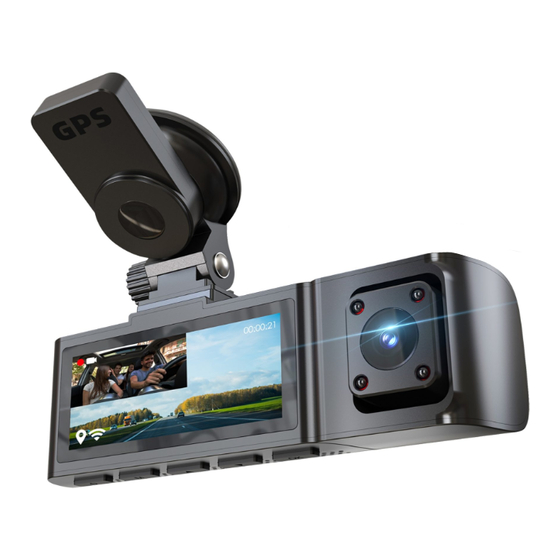

Camera Overview Power Button / Screen Toggle Button USB-C Charging Port Menu Button / Mode Button Micro SD Card Slot Up Navigation Button / Wi-Fi on/off / Rear Camera Port Emergency Lock Button(Hold) Cabin-facing camera Down Navigation Button /Microphone on/off(Hold) OK (Confirm) Button / Record Button... -
Page 6: Screen Icons
Screen Icons Wi-Fi (OFF) Loop Recording Recording Time Memory Card (ON) (Current Clip) Inserted Video (ON) (ON) Resolution Recording Power (ON) Connected 00:06 2,5K+1080+1080 02/05/2024 07:02:55 PM Current Date Current Parking Mode (MM/DD/YYYY) Time (OFF) -
Page 7: Installation
Installation Step 1 Install the Dash Cam Place the suction cup mount and properly orient the mount and lock the suction cup. On the illustration orient the mount as shown. Orient the mount as shown... -
Page 8: Insert The Memory Card
Step 2 Insert the Memory Card The Rexing R316-2 accepts [Class 10/UHS-1 or higher] Micro SD memory cards up to 256GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you’ve powered down the device. - Page 9 Power on the Camera and Format the Memory Card Power on the camera by connecting the charger to the car cigarette lighter and camera. To ensure the R316-2 records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function.
- Page 10 Step 4 Mount the Rear Camera(Optional) Mount the rear camera as shown below. Use rear camera cable to connect the rear camera to the R316-2 camera. front cabin rear...
- Page 11 Step 5 Installing the Camera onto the Windshield Place the camera on the mount and carefully route the power cable around the windshield and tuck in under the trim. Plug the Car Charger Cable into a 12V DC power outlet or the car cigarette lighter.
-
Page 12: Basic Operation
Basic Operation Device Power The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and received a charge (i.e.: the vehicle is started). To turn the device on manually, press and hold the Power button until the welcome screen appears. -
Page 13: Video Recording
Video Recording The camera will automatically start recording when the device receives charge. The LED lights and red dot will blink device when recording. Press the OK button to stop recording. The camera automatically starts recording when powered on Locked Video To use the Emergency Record Mode, hold the button to manually lock the current video clip. -
Page 14: Video Playback
Video Playback Playback of videos can be done on the device or a computer. To playback a video on the device hold M button to toggle to the Playback mode. Use buttons to toggle to the desired video. Press the OK button to play. - Page 15 Samsung / Android Example iPhone / iOS Example Step 3 Once you're connected to the dash cam, open the Rexing Connect app on your mobile device. Please select "Keep Trying Wi-Fi" if you see the notification on the right. Step 4 In the app, hit the "Connect"...
- Page 16 Easily download the app by scanning the QR code below or search via the App Store or Google Play. Wi-Fi Connect Troubleshooting If you bring up the Rexing connect app and cannot connect your phone to the dash cam please go to https://www.rexingusa.com/wifi-connect/...
- Page 17 GPS Logger You can then access this information while playing back your recordings using the GPS Video player (For Windows and Mac, available at rexingusa.com). The dash cam will automatically search for the GPS signal once it’s connected to the power source. Press the MENU button and go to System Settings.
- Page 18 Parking Monitor (Parking Surveillance Mode) Parking monitor provides surveillance on your parked vehicle. When the engine is off, the hardwire kit is used to provide continuous power and protect your car battery from being discharged. Option 1: Vibration Detection To enable the Parking Monitor, you'll need to connect it with a Smart Hardwire Kit.
- Page 19 Option 2: Motion Detection To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit (sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction.
-
Page 20: Warranty And Support
Warranty & Support Warranty The Rexing R316-2 Dash Cam comes with a limited 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the limited warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at... - Page 21 FCCID: 2AW5W-R316 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
