- Page 1 RH2-3 Quick Start Guide The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024...
- Page 2 (877) 740-8004 Our support team will respond to you as soon as possible. Always a surprise with Rexing Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...
- Page 3 Activate Your 18-Month Warranty & Choose Your Free Gift! Activate within 30 days of purchase to claim your free gift and extended limited 12-month warranty to 18 months. SCAN Scan the QR to Activate & Select Your Free Gift https://www.rexingusa.com/productreg/...
-
Page 4: What's In The Box
Paste the electrostatic film on the front windshield PROTECTED Paste the bracket into this circular area DASH CAMS Rexing RH2-3 Dash Cam Rear Camera x 2 pcs Car Charger Cable Management Tool Mount Plate & 3M Adhesive Cable Clips User Manual... -
Page 5: Camera Overview

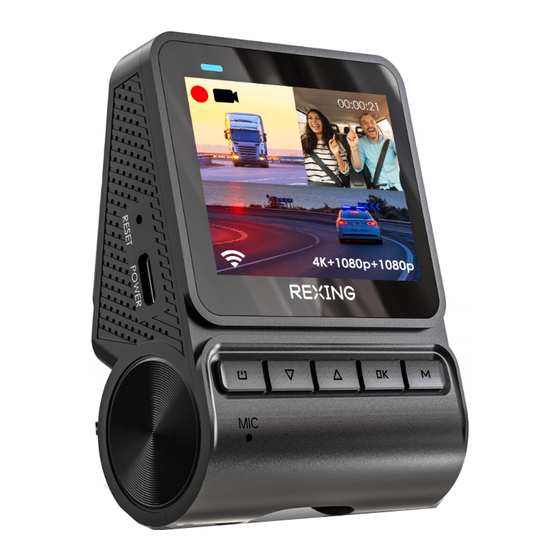

Camera Overview Reset Button Menu Button USB-C Port Indicator Power Button Micro SD card slot Down Button Left/Right Camera Port Up Button Rear Camera Port OK Button The camera is recording when the indicator is flashing purple. The device is charging or powered on when the indicator is solid red. -
Page 6: Screen Icons
Screen Icons 00:16 2K 02/18/2024 13:36:38 Wi-Fi (Off) Recording (On) Recording Time (Current Clip) GPS (Connected) Video Resolution Mic (On) Current Date (DD/MM/YYYY) Memory Card (Inserted) Time (24H) Power Connected... - Page 7 Instalation Step 1: Installing the Electrostatic Stickers Prepare Your Windshield Thoroughly cleanse your windshield with either water or alcohol. Follow this by wiping it dry using a clean, dry cloth to ensure a spotless surface. Position the Sticker Next, carefully peel off the protective film from the electrostatic sticker.
- Page 8 Step 3: Insert the Memory Card The Rexing RH2-3 accepts [Class 10/ UHS-1 or higher] Micro SD memory cards up to 512GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you've powered down the device.
- Page 9 Power the camera by connecting the charger to the car cigarette lighter and the camera To ensure the RH2-3 records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function.
- Page 10 You may now disconnect from power. The camera will shut down after 3 seconds. The camera should begin recording automatically the next time it is powered on. System Settings 92 MB Video Settings Close Format SD Card? English General Settings Cancel Parking Monitor...
- Page 11 Step 5: Mount the Extra Cameras, Left/Right camera are optional. Mount the extra cameras as shown below. Use the provided camera cable to connect the extra cameras to the front camera. Left and Right camera are sold separately. Left camera Right camera Rear camera...
- Page 12 Step 6: Installing the Camera onto the Windshield Place the camera on the mount and carefully route the power cable around the windscreen and tuck in under the trim. Plug the Car Charger Cable into a 12V DC power outlet or the car cigarette lighter.
-
Page 13: Basic Operation
Basic Operation Device Power The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and receives a charge (i.e.: the vehicle is started). To turn the device on manually,press and hold the button until the POWER welcome screen appears. -
Page 14: Menu Settings
Menu Settings Power the camera on. If the camera is recording, press the button to stop recording. Press the button once to enter the settings menu for a Mode. Press MENU the MENU button twice to enter the System Settings. System Settings Video Loop Recording... -
Page 15: Video Recording
Video Recording The camera will automatically start recording when the device receives a charge. The Indicator and the red dot will blink when the device is recording. Press the button to stop recording. The camera automatically start 00:16 2K 02/18/2024 13:36:38 recording when powered on Video Playback... - Page 16 Video Playback Playback of videos can be done on the device or a computer. To playback a video on the device, toggle to the Playback mode by Hold MENU Button. Use the buttons to toggle to the desired video. DOWN Press the button to play.
- Page 17 Parking Monitor (Parking Surveillance Mode) Parking monitor provides surveillance on your parked vehicle. When the engine is off, the hardwire kit is used to provide continuous power and protect your car battery from being discharged. Option 1: Vibration Detection To enable the Parking Monitor, you'll need to connect it with a Smart Hardwire Kit.
- Page 18 Option 2: Motion Detection To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit (sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction.
- Page 19 Wi-Fi Connect Step 1 With your dash cam powered on, hold the button to enable the Wi-Fi function. The Wi-Fi name (aka the SSID) and password for the dash cam should be displayed on-screen. Wi-Fi Wi-Fi Not Connected SSID: B50D_bb92 Password: 12345678 Step 2 On your mobile device, navigate to your Wi-Fi settings.
- Page 20 Step 3 Once you're connected to the dash cam, open the Rexing Connect app on your mobile device. Please select "Keep Trying Wi-Fi" if you see the notification on the right. Step 4 In the app, hit the "Connect" button to connect to your dash cam, allowing you to access live view and view/download your recordings.
- Page 21 Easily download the app by scanning the QR code below or search via the App Store or Google Play. Wi-Fi Connect Troubleshooting If you bring up the Rexing connect app and cannot connect your phone to the dash cam please go to https://www.rexingusa.com/wifi-connect/ OR scan the QR code below.
- Page 22 GPS Logger (Optional) When Rexing Charger with GPS Logger (Sold separately, UPC: 810046606872) connect and activated, it will record the speed and location of your vehicle as you drive. You may also connect to a Type-C GPS Smart Hardwire Kit (UPC: 810046606865) to activate the GPS functionality.
-
Page 23: Warranty And Support
Warranty & Support Warranty The Rexing RH2-3 Dash Cam comes with a limited 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the limited warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at... - Page 24 FCCID: 2AW5W-RH2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
