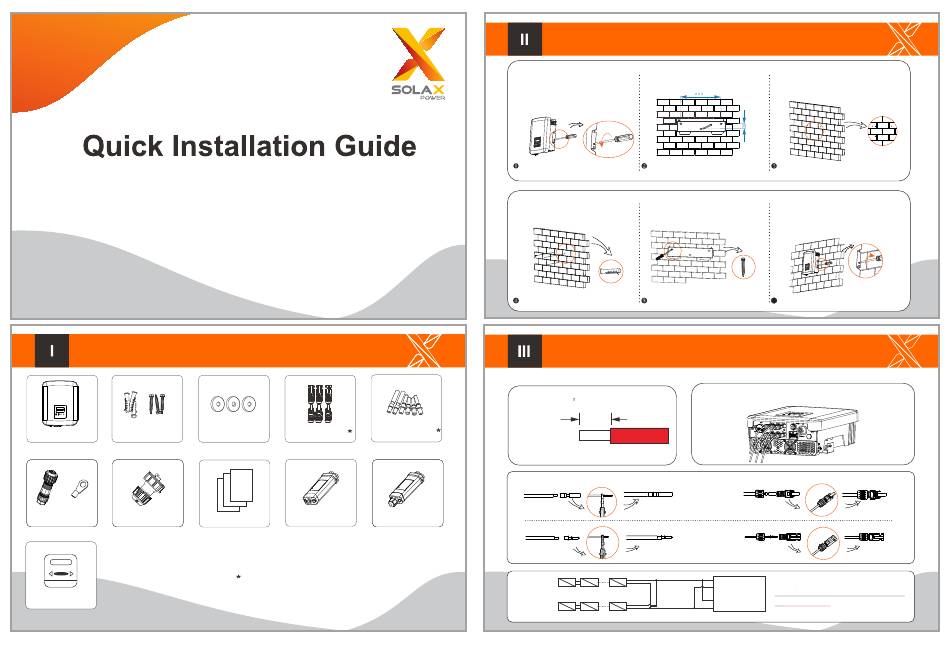

Solax X3-MIC G2 Series Quick Installation Manual

X3-MIC G2 Series 3 kW-15 kW
Packing List
Expansion bolt X 3
Round washer X 3

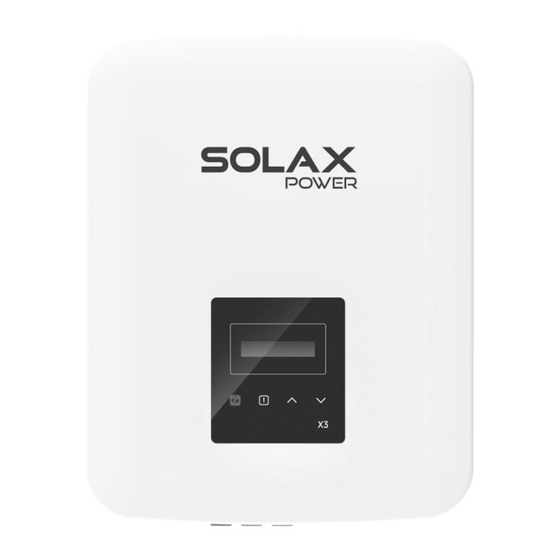

Inverter X 1
Self tapping screw X 3
AC connector X 1
Waterproof connector
Earth terminal X 1
with RJ45 X 1
Meter (Optional)
DC pin contact X 4/6
DC connector X 4/6
WiFi dongle (Optional) LAN dongle (Optional)
Documents
2*positive, 2*negative for 3 kW-8 kW and 10 kW(input A: one string)
3*positive, 3*negative for 12 kW-15 kW and 10 kW(input A: two strings)
* For the optional accessories, please be subject to the actual delivery.
Note: Please refer to the appropriate instruction manual for the
usage of WiFi and LAN dongle.
Inverter Installation
- Unscrew the bracket from the back of - And mark the position(223 mm*30 mm)
the inverter. of the three holes.
- Insert the expansion bolts.
- Screw the self tapping screws.
PV Connection
cable size: 4 mm
7 mm
strip length
positive DC
cable pin contact
clamp contact
negative DC
cable pin contact
(torque:1.2±0.1 N·m)
clamp contact
×
+
-
+
-
PV array
- Drill holes with φ10 drill.
- Depth: at least 60 mm.
- Match the inverter with the bracket.
- Screw the cross recessed screw on the
right side.
torque: 0.8±0.1 N·m
6
- Align the PV connectors.
male plug
nut
tighten nut
female plug
nut
tighten nut
+
+
PV1 Note!
-
The PV connection mode in this box
+ is not allowed!
PV2
-
-
Inverter
