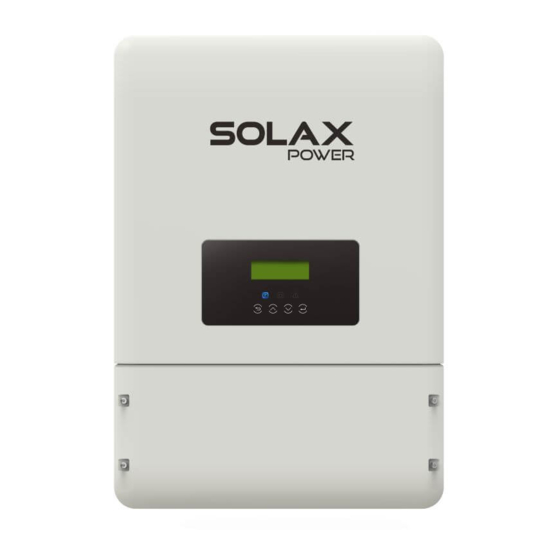

- Page 1 X-Hybrid BATTERY STORAGE INVERTERS FROM SOLAX WiFi User Manual USE IT, STORE IT FEED IT TO THE GRID TAKE CONTROL OF THE ENERGY YOU GENERATE...
- Page 2 WiFi User Manual 1 Connect with user’s home Wi-Fi network 1.1 Connect with Data Acquisition System (1) Confirm the inverter is working correctly. (2) Use a computer/tablelet to search for the WIFI signal originating from the inverter. The SSID of this WIFI signal will be called: SolaX_xxxxxx('xxxxxx' being the last six characters of the device mac address) as shown in Figure1: Figure 1, Searching for the Data Acquisition System Signal (3) Connect the WIFI signal with the SSID 'SolaX_xxxxxx'.
- Page 3 Figure 2, Connected with Data Acquisition System 1.2 Set Network Parameters (1) Input the IP address ‘11.11.11.1’ into the address bar of an internet browser (IE, Firefox or Chrome) on the device you are currently using to connect to the inverter. When prompted for a user name and password, enter ‘admin’...
- Page 4 (Note: Users need to make a copy of the SN number for the future use in login the X -Monitoring system) Figure 4, Basic settings page (3) Click the "Find AP" at the right side of SSID as shown in figure 4.There Will be an Scan page, it will search for the signal of the WIFI router around, and there will be a list as figure 5.
- Page 5 2. User Guide for SolaX X-Monitoring System 2.1 User Registration and Sign -in (1)Input the address http://al.lewei50.com/ in the address bar on your web browser. A sign -in interface will appear(as shown in Figure 6). Click ‘sign- up’, and a registration window(shown in Figure 7) will be displayed.
- Page 6 (2) Sign-in the X-monitoring system use the username and password you set. When signing into the X-monitoring System, 'My Site' is based on the SN number of user's inverter. Figure 8, My site (3) Users can see the current running parameters when they select their inverter listed under 'My Sites'.
- Page 7 Figure 10 , Edit station information (2)If a user needs to monitor more than one inverter on the site, they add new sites by using the ‘+New Site’ function in the menu bar. A new page will be loaded, which is similar to the editing page, the key difference being that the SN number of the new WIFI is needs to be put into the blank bar at the bottom of the page, as shown in Figure 11.
- Page 8 Users can edit user information by using the ‘Settings’ function in the menu. Figure 14, User Information Setting 2.4 Sites Management for User The SolaX X- Monitoring System provides various site management functions. （1） Real-time display The Real-time display function provides the current performance of running parameters of the system for performance monitoring.
- Page 9 Figure 15, Real-time display of site （ 2） Alarm Record Figure 16, Alarm Record （ 3） History Record Figure 17, Changing Curve...
- Page 10 （ 4） Report Analysise Figure 18, Report Analysis 5） Auto-sending Settings In the 'Auto-sending Settings' page, users can choose the 'Auto-sending' frequency (daily, weekly and monthly) of the error logs, as shown in Figure 19. Figure 19, Auto-sending Settings 6） Overview of the Batteries In the 'Batteries' tab, users can get an overview of the battery performance.
- Page 11 side of the page is the charging level of the batteries. The middle section of the page shows the historical voltage, current and charge level data; and on the right hand side the current battery status (sees Figure 20). Figure 20, Overview for batteries （...
- Page 12 （ 8） Alarm Record for Batteries In the 'Battery' tab, click 'Alarm Record'. Users can check the battery alarm record, as shown in Figure 22. Figure 22, Alarm Record for Battery...
- Page 13 SolaX Power Co,. Ltd. Room 220, West Buliding A, National University Science and Technology Park of Zhejiang University 525, Xixi Rd, Hangzhou, Zhejiang Province, China, 310007 Tel: +86(571)-87979860 E-Mail: info@solaxpower.com 614.00028.00...
