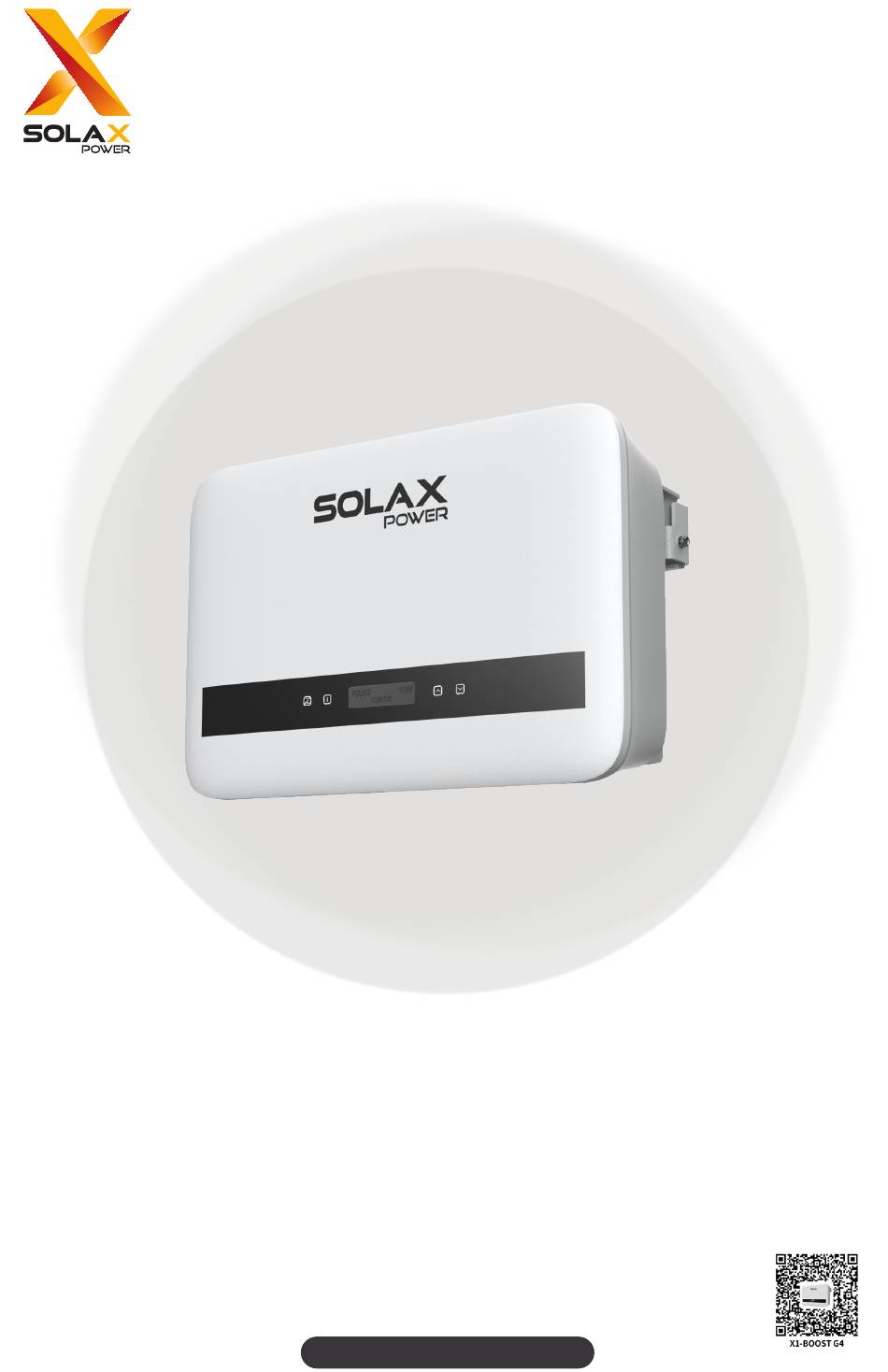

- Page 1 X1-BOOST G4 2.5 kW / 3 kW / 3.3 kW / 3.6 kW / 4 kW / 4.2 kW / 5 kW / 6 kW Installation Manual Version 0.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
- Page 2 Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation, maintenance and grid-related setting can only be performed by qualified personnel who: •...
- Page 3 • Only operate the inverter when it is technically faultless. Otherwise, electric shock or fire may occur. • Do not open the enclosure in any case without authorization from SolaX. Unauthorized opening will void the warranty and cause lethal danger or serious injury due to electric shock.
- Page 4 Packing List Self-tapping screw Expansion tube Inverter Bracket Documents Expansion bolt AC connector Removal tool for AC Earth terminal connector M5*L12 screw Negative PV connector Postive PV connectors Allen key RJ45 terminal Negative PV pin contact Positive PV pin contact RJ45 coupler (optional) CT (optional) Dongle (optional)
-
Page 5: Terminal Description
Installation Site -25°C - +60°C IP66 0-100%RH Avoid direct sunlight Avoid rain exposure Avoid snow lay up Near combustibles Near antenna NOTICE! • For outdoor installation, precautions against direct sunlight. rain exposure and snow accumulation are-recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperaturerise poses no safety risks, but may impact the device performance. -
Page 6: Installation Angle
Installation Carrier Be suitable for the dimension (404 × 274 × 146 mm) and weight (refer to technical data) of the inverter Fire resistant Installation Angle ≤5° Installation Space ≥30 cm ≥30 cm ≥30 cm ≥35 cm ≥35 cm ≥35 cm ≥30 cm ≥30 cm Single inverter... -
Page 7: Communication Cable
Crimping tool Marker Cross screwdriver Wire stripper Torque wrench Crimping tool for PV (10 mm) terminal Heat gun Diagonal pliers Heat shrinking Crimping tool Allen key (4 mm) tubing (Ø6 mm) Spirit level for RJ45 Safety goggles Anti-dust mask Safety gloves Safety boots Additionally Required Materials Required Material... -
Page 8: Mechanical Installation
Mechanical Installation 223 mm Depth: ≥60 mm 10 mm 4 mm Allen key 1.2±0.1 N·m PE Connection 6 mm 28~29 mm PE line: 4~6 mm (2.5K~4K); Heat-shrink tubing 5~6 mm (4.2K~6K) (Ø6 mm) 8~9 mm... -
Page 9: Ac Side Connection
Crimping tool 2±0.1 N·m AC Side Connection Outer jacket Separate these parts 52.5 mm Ø9-18 mm 6 mm 55 mm L/N/PE line: 4~6 mm (2.5K~4K); 5~6 mm (4.2K~6K) * The cross-sectional area of PE line should be the same as that of L/N line. AC cable 0.5±0.1 N·m... -
Page 10: Dc Side Connection
Click DC Side Connection Positive PV pin contact Negative PV pin contact PV line: 4~6 mm (2.5K~4K); 5~6 mm (4.2K~6K) Crimping tool for PV terminal Click！ Positive PV connector Negative PV connector Click！... -
Page 11: Communication Connection
<600 V Click * Remove the terminal caps. Communication Connection COM/CT port on the inverter RJ45 terminal *Ensure that all cables are of the Screw cap same length *Wiring according to 568B standard... - Page 12 0.5±0.1 N·m Hand-tight • Pin definition Heat RS485/ RS485/ Heat Function Pump Meter Meter Pump Heat Heat Pin Definition DRM0 485_A 485_B +3.3V Pump- Pump+ *Note: DRM0 here is for AS4777.2 AU/NZ . • For RS485: RS485 to USB RS485 port of the inverter USB port of the computer...
- Page 13 • For meter: i. For meter with CT Inverter Load Electric grid Single Phase meter bidirectional *The meter used should be provided by SolaX. ii. For meter without CT Inverter Load Electric grid Single Phase meter bidirectional *The meter used should be provided by SolaX.
- Page 14 • For direct CT connection: Inverter RJ45 Coupler RJ45 Coupler Load Electrical grid Home Electric Meter Important: The arrows direction on the COM/CT port on the CT must point to the public grid side. bottom of the inverter L line Inverter Public grid electricity...
-
Page 15: Power On The System
Power on the System Step 1: Turn on DC switch. Step 2: Turn on AC breaker. Turn on AC breaker Inverter Electrical grid Load AC breaker Home Main breaker Electric Meter... - Page 16 LCD Panel Real-time output power Status or error information Power Normal Operating Error Up/ESC Down/Enter indicator indicator LCD screen button button light light • In normal status, the "Power"/"Pgrid"/"Today"/"Total" information will be displayed respectively. You can press the keys to switch information. •...
-
Page 17: General Setting
General Setting Date Time > 2000-01-01 Language > Date&Time 00 : 00 Language Status > English > Language Set the system time, date and language Settings > >Safety > Settings 2 0 1 4 Export Control Safety Country > VDE 4105 < Set the corresponding safety standards according to different countries Settings >... -
Page 18: Technical Data
Technical Data • DC input X1-BOOST- X1-BOOST- X1-BOOST- Model X1-BOOST-3K-G4 2.5K-G4 3.3K-G4 3.6K-G4 Max. PV array input power [Wp] 6000 6000 6600 7200 Max. PV voltage [d.c.V] Startup voltage [d.c.V] Nominal input voltage [d.c.V] MPPT voltage range [d.c.V] 40-560 40-560 40-560 40-560 No. - Page 19 X1-BOOST- Model X1-BOOST-4K-G4 X1-BOOST-5K-G4 X1-BOOST-6K-G4 4.2K-G4 ITHDi (rated power) [%] <3 Nominal AC Voltage [a.c.V] 220/230/240 Current (inrush) [a.c.A] Maximum output fault current [a.c.A] 58 (15 ms) Maximum output overcurrent protection [a.c.A] Note: 1. 4048 (3680 for G98, TOR and PPDS) 2.
- Page 20 X1-BOOST- Model X1-BOOST-4K-G4 X1-BOOST-5K-G4 X1-BOOST-6K-G4 4.2K-G4 Max. efficiency [%] Euro. efficiency [%] Standby consumption [W] @Night Ingress protection IP66 Protective class Overvoltage category II (DC), III (AC) Operating ambient temperature -25-60 range [°C] Max. operation altitude [m] 4000 Humidity [%] 0-100 Typical noise emission [dB] Storage temperature [°C]...
- Page 21 • The device meets the basic requirements and other relevant provisions of 2014/53/ EU directive. • The device is allowed to be used in all EU member states. • Manufacturer: SolaX Power Network Technology (Zhejiang) Co., Ltd. Product type: Pocket WiFi [CE DECLARATION OF COMFORMITY]: https://www.solaxpower.com/uploads/file/ pocket-wifi-ce-declaration-of-conformity-en.pdf...
-
Page 22: Packing List
FCC RULES Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 23: Installation Steps
Installation Installation steps WARNING! • Ensure that all power has been turned off at least 5 minutes prior to installation. Step 1: For the -P/-E version of Pocket WiFi, screw the antenna to the end of the shell. (Skip this step if you didn’t buy the -P/-E version). -P External antenna -E Extended antenna Step 2: Remove the cover of DONGLE port at the bottom of the inverter and plug the... -
Page 24: Download App
Installation requirements For Wi-Fi mode, the longest connection distance between the router and the equipment should be no more than 100 meters; if there is a wall between the router and the equipment, the longest connection distance is 20 meters. 24CM concrete wall (example) <100 m <20 m... -
Page 26: Warranty Registration Form
Date of Delivery Signature Please visit our warranty website: https://www.solaxcloud.com/#/warranty or use your mobile phone to scan the QR code to complete the online warranty registration. For more detailed warranty terms, please visit SolaX official website: www.solaxpower.com to check it. - Page 27 SolaX Power Network Technology (Zhejiang) Co., Ltd. ADD.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320102132500...
