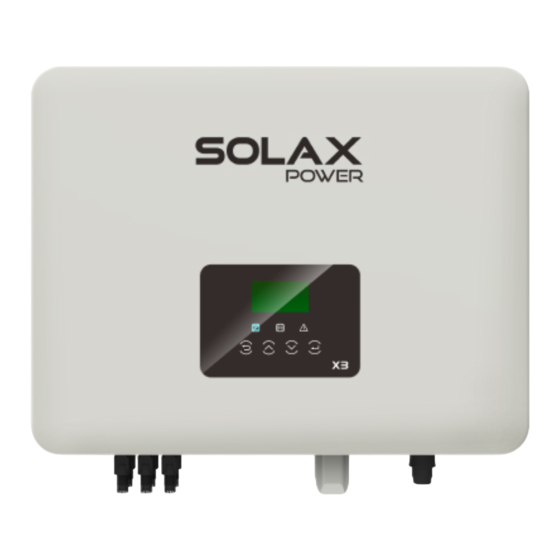

X3 Series4KW-10KW
Packing List
DC connector X 4
X3 series inverter X 1
Bracket X 1
AC connector X 1
Waterproof connector
Product manual X 1
with RJ45 X 2
Note: Please refer to the appropriate instruction manual for the usage
of Pocket WIFI and Pocket LAN
Pocket WiFi( Optional )
Meter( Optional )
DC pin contact
(2*positive, 2*negative)
Expansion tube X 4
Earth terminal X 1
Expansion screw X 4
X3 Series 4.0KW-10.0KW
Quick installation guide
Pocket Lan( Optional )
Warranty card X 1
X 1
Inverter Installation
- Mark the position of four holes
- Drill holes with φ6 drill.
- Depth: at least 50mm.
- Match the inverter with the bracket.
- Screw the expansion screws.
PVConnection
cable size: 12AWG
trip length
12AWG
positive DC
pin contact
negative DC
cable
pin contact
clamp contact
×
+
-
+
-
-
PV array
- Tighten the expansion tubes.
-Align the halves connectors
male plug
female plug
nut
tight nut
+
+
PV1
Note!
-
The PV connection mode in this box
+
is
not allowed!
PV2
-
Inverter
