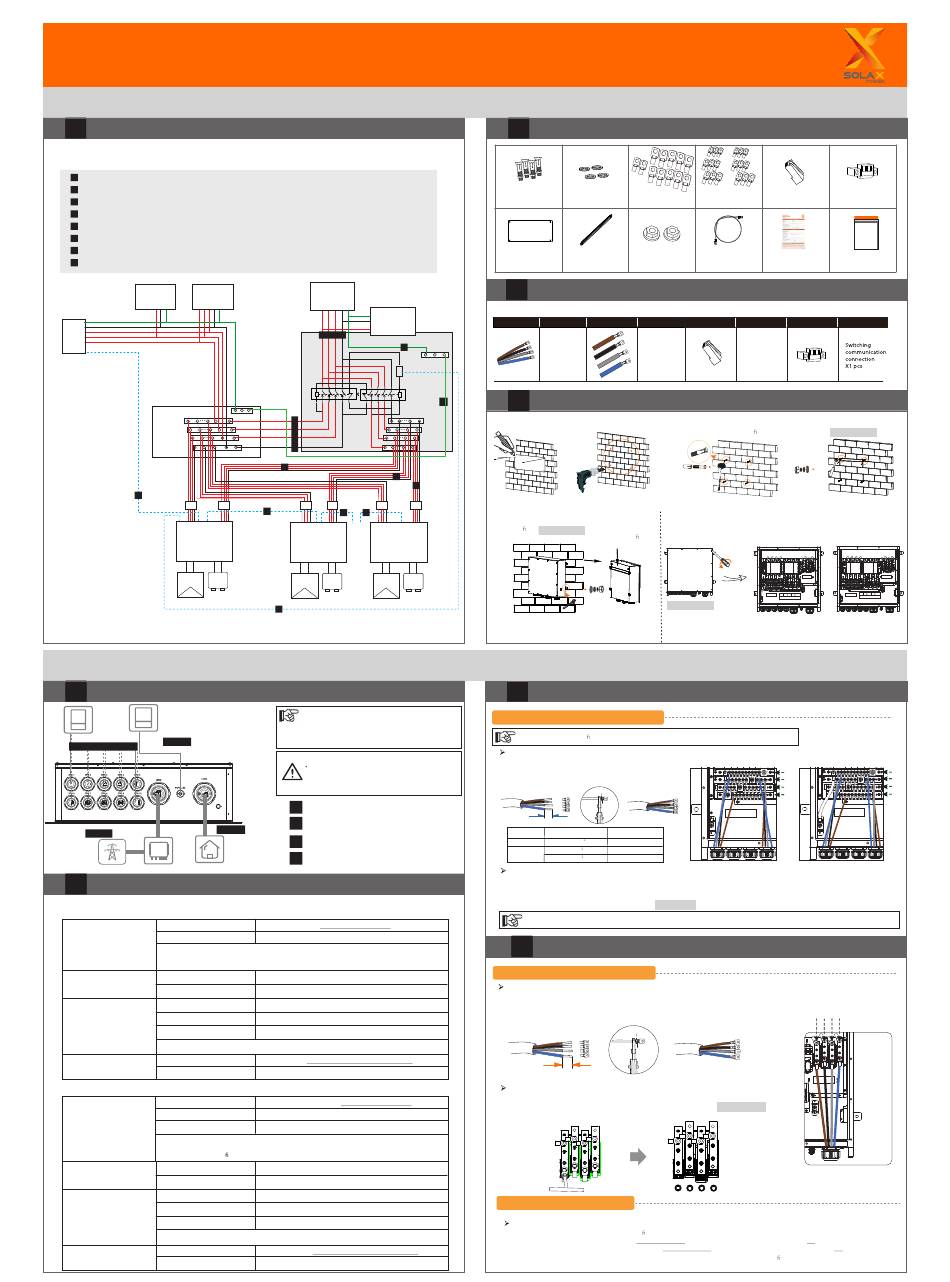

Solax X3-PBOX-150kW-G2.1 Quick Installation Manual

Quick Installation Guide
System Diagram
1.1
Cables marked with majuscule in below system diagram will be introduced in this manual.
A EPS connection between Inverter and X3-PBOX-150kW-G2.1 (refer to Part 2)
B Grid connection between Grid Distribution Box and X3-PBOX-150kW-G2.1(refer to Part 2)
C EPS Load connection between EPS load and X3-PBOX-150kW-G2.1 (refer to Part 2)
D Earth connection between X3-PBOX-150kW-G2.1 and external earth bar (refer to Part 2)
E Earth connection between X3-PBOX-150kW-G2.1 and EPS Load (refer to Part 2)
F Communication connection between X3-PBOX-150kW-G2.1 and Master Inverter (refer to Part 2)
G Communication connection between Inverters (refer to Part 3)
H
Communication connection between Master Inverter and SolaX meter (refer to Part 3)
single-phase three-phase
. . .
Common Load Common Load
PE
N
T
SolaX
S
Meter
R
Grid
Grid Distribution Box
R-bar
S-bar
T-bar
N-bar
H
Breaker Breaker
CAN 1 GRID Meter CAN2 EPS
Master
Inverter
+ -
PV+ PV-
Battery
* When inverters have a parallel connection with X3-PBOX-150kW-G2.1, up to 10 X3-Hybrid G4 inverters or up to 5 X3-ULTRA
inverters are allow to be connected
2.1 Connection Overview of X3-PBOX-150kW-G2.1
Master
Inverter Slave: 1 ~ n Inverter
Slave
Max n=4
(for X3-ULTRA)
Max n=9
(for X3-Hybrid G 4)
Part 2.6
Part 2.3
Part 2.4
Part 2.5
Grid
Distribution Box Back-up LOADS
Grid
2.2 Cable Size Recommended
Note: Soft cables are suggested for ease of installation.
Cable preparation when connected with X3-Hybrid G4 inverter
R-cable, S-cable, T-cable, N-cable
Outer Diameter of EPS Cable
EPS 4 cables needed for one EPS port( one inverter )
8 cables needed for two EPS ports ( two inverters paralleled )
40 cables needed for ten EPS ports maximummly ( Ten inverters paralleled )
R-cable, S-cable, T-cable, N-cable
Back-up Load
Outer Diameter of LOAD Cable
R-cable, S-cable, T-cable, N-cable
PE-cable
Grid
Outer Diameter of GRID Cable
Note: N bar connection in Australia is different from N bar connection in most countries.
Communication cable
Communication
Outer Diameter of
Communication Cable
Cable preparation when connected with X3-ULTRA inverter
R-cable, S-cable, T-cable, N-cable
PE-cable
EPS
Outer Diameter of EPS Cable
4 cables needed for one EPS port( one inverter )
8 cables needed for two EPS ports ( two inverters paralleled )
20 cables needed for ve EPS ports maximummly ( Five inverters paralleled )
R-cable, S-cable, T-cable, N-cable
Back-up Load
Outer Diameter of LOAD Cable
R-cable, S-cable, T-cable, N-cable
PE-cable
Grid
Outer Diameter of GRID Cable
Note: N bar connection in Australia is different from N bar connection in most countries.
Communication cable
Communication
Outer Diameter of
Communication Cable
Part 1 Preparation
three-phase
Backup Load
single-phase
Backup Load
C
E
X3-PBOX-
150kW-G2.1
A2 NC NC A2
A1 NC NC
A1
KM2
KM1
PE-bar
B
A
A
A
Breaker Breaker Breaker Breaker
G
G G
E P S
GRID CAN1 CAN2 EPS CAN1 CAN2 GRID CAN1
Slave Slave
. . . . . .
Inverter Inverter
+ - + -
PV+ PV- PV+ PV-
Battery
Battery
F
Part 2 Installation of X3-PBOX-150kW-G2.1
X3-Hybrid G4 inverter connected with X3-PBOX-150kW
-G2.1 is taken for an example in the left connection
overview. When it is connected with X3-ULTRA inverter,
the number of slave inverter and the EPS port
connection is different.
Important Warning!
Every cable must be connected according to
correct line sequence (R-R, S-S, T-T, N-N), otherwise
any small misoperation may cause the system
running failed.
EPS Connection
2.3
Back-up Load Connection
2.4
GRID Connection
2.5
2.6 Communication Connection
4-6mm² * 4 PCS for one EPS port
12. 5 -18 mm
70mm² * 4 PCS
18-44 mm.
70mm² * 4 PCS
35mm² * 1 PCS
23-56mm
≥0.2mm²
*
2 PCS for one communiction port
6-8 mm
10 mm²/ 4 PCS for one EPS port
16 mm² *
10 mm²/ 16 mm² * 1 PCS
20.5 -37 mm
70mm² * 4 PCS
18-44 mm.
10 mm²/ 16 mm² * 4 PCS
10 mm²/ 16 mm² * 1 PCS
20.5-37mm
0.25-0.3mm²
*
2 PCS for one communiction port
6-8.5 mm
_ for Parallel System
1.2
Expansion bolt * 4,
Gasket(M8) * 4


Board marking paper
Bracket * 1







*1
1.3
- Press the terminal harness.
Connectors Connectors Application Connectors
R/S/T/N EPS
connector ×10 pairs
(for X3-Hybrid G4)
R/S/T/N EPS
PE-bar
connector ×5 pairs
(for X3-ULTRA)
1.4
D
- Use the attachment bag of control cardboard drill four
N-bar
- Depth: at least 80mm
T-bar
S-bar
R-bar
Ø8 Drill
(Depth: 80 mm)
a)
- Hang the box on the bracket on the wall.
- Fix the bottom of the box in the same way of how the
bracket is xed. (Torque:8.0 N·m)
- The picture on the right shows the back of well- xed
box.
nut,
Gasket
e)
Note: Please refer to the turning radius of the
prepared cables about the distance between the
bottom of parallel box and the floor.
2.3
Connection of X3-PBOX-150kW-G2.1
Please refer to the speci c inverter user manual for the EPS cable connection of the inverter side.
Making EPS cables
Remove 11 mm insulation from cable ends, and then insert
the cold-pressed terminal. Press the terminal head with
the blank holder.
①
cold-pressed
Crimp!
terminal
11 mm
Conductor Cross-section
Inverter
of Grid and EPS cable
X3-Hybrid G4 4-6 mm
10 mm
X3-ULTRA
16 mm
Connecting cables
Thread the assembled EPS cable through the corresponding EPS
ports at the bottom of the box. Connect the assembled R, S, T, N
cable to the R-bar, S-bar, T-bar, N-bar,G-bar. Lock the cables with
a screwdriver. (Please refer to the picture on the right.)
When X3-PBOX-150K-G2.1 is connected with X3-ULTRA inverter, it is recommended that installers connect R, S, T, N cable to the R-bar,
S-bar, T-bar, N-bar respectively with one screw hole at intervals in the same row.
2.4
Connection of X3-PBOX-150kW-G2.1 side
Making Load cables
Remove 21 mm insulation from cable ends, and then Insert the cold-pressed
terminal (70-10).
Press the terminal head with the blank holder .
①
70-10 cold-pressed
terminal
21 mm
Connecting cables
Pass the completed wiring harness through the Load port and follow the corresponding
wiring ports (R-bar, S-bar , T-bar, N-bar) to install it and tighten the screws.
( refer to picture as right )
②
Connection of back-up load side
Selecting appropriate Back-up loads
The requirement shown as below must be satis ed:
1: Algebraic apparent power of back-up loads must be less than Algebraic apparent power of hybrid system * 0.9.
2: Algebraic RCD apparent power of RCD back-up loads must be less than Algebraic apparent power of hybrid system * 0.6.
Back-up Load connection of loads side should be analyzed and operated depending on speci c loads. Here will not be
described into details.
Packing List
...
...
...
Cold-pressed terminal
Cold-pressed terminal (6-6) * 45 for X3-Hybrid G4;
RJ 45 terminals * 1
(35-10)*2 pcs, (70-10) *10
(10-6) * 45, (16-6) * 45 for X3-ULTRA
Ground terminal
Warranty card
M4 inner hexagon bolt
(length, 450mm)
* 2 * 1
Cable Preparation
Application Connectors Connectors
Application
Grid R/S/T/N/PE
Connector
RJ 45 terminals
X 1 pcs
1 pcs
Load&Grid R/S
/T/N Connector
X 1 pcs
Mounting
holes. - Tighten the four expansion tubes.
Ø8
- Pass the expansion screws though the M6 washers, and then screw the top
two expansion screws to x the bracket on the wall.
Expansion bolts,
Tapping screws
Rubber
hammer
b)
c)
- Remove the safety bezel.
N T S R PE
EPS
GRID
Torque: 2.0 N·m
For Other Areas
EPS Connection
side
②
N-bar
T-bar
S-bar
R-bar
EPS
Cold-pressed terminal
selection
6-6 terminal
10-6 terminal
16-6 terminal
Australia
Torque:3.0 N.m
Back-up Load Connection
Crimp!
Torque:14.0 N·m
Communication terminal
(green) * 1 (choose a
suitable one when installing)
Quick Installation Guide _ for Parallel System
Part 1 P
1.1 System Diagram
Quick Installation Guide * 1
* 1
Connectors Application
(Torque:8.0 N·m)
M8
Torque
wrench
nut,
Gasket
d)
LOAD LOAD
N T S R PE
EPS
GRID
For Australia
N-bar
T-bar
S-bar
R-bar
EPS
other areas
R S T N
④
LOAD
