F I T T I N G I N S T R U C T I O N S F O R

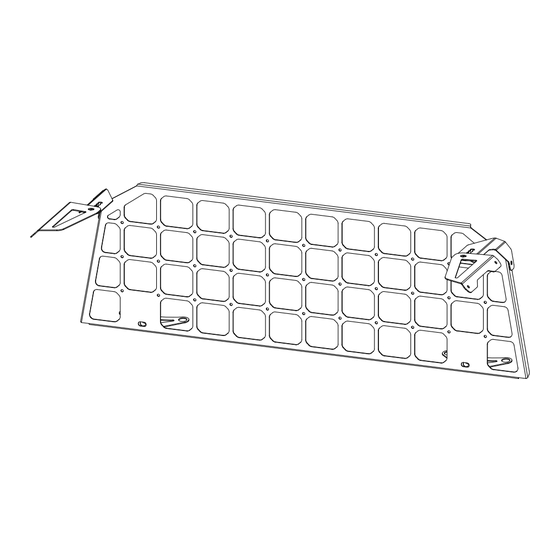

Light Cargo Barrier
S K U
KS0716
Included contents
Q T Y
C O M P O N E N T
1
Light Cargo Barrier
2
Head Rest Bracket
2
Handle Bracket (LHS & RHS)
2
Barrier Bracket (LHS & RHS)
4
Black TPU Nut Retainer
1
M6 x 50 Hex Bolt (Installation Tool)
Scan the QR code to watch the video installation guide,
or for further information contact KAON on 07 3180 1470 or info@kaon.com.au
C O M P A T I B I L I T Y
Toyota LandCruiser LC200
Q T Y
C O M P O N E N T
4
M6 Aluminium Nut Block
2
M6 X 18 X 1.6 DIN Flat Washer
2
M10 x 20 Button Head Socket Screw
2
M10 x 30 x 2.5 DIN Flat Washer
6
M6 x 16 Flanged Hex Bolt G8.8
2
M10 x 20 Black Plastic Knob
Time
30 minutes / Half a beer
Advertisement
Related Manuals for Kaon KS0716
Summary of Contents for Kaon KS0716
- Page 1 M6 x 50 Hex Bolt (Installation Tool) M10 x 20 Black Plastic Knob Time 30 minutes / Half a beer Scan the QR code to watch the video installation guide, or for further information contact KAON on 07 3180 1470 or info@kaon.com.au...
- Page 2 Shelf & Molle install. fitting guide. Are you installing other Are you installing other Are you installing other KAON Storage Products? KAON Storage Products? KAON Storage Products? With the foundation in place, it’s time to mount any other accessories,...
- Page 3 Let’s get to work. M6 Roof Nut Installation IMPORTANT: Please read and understand the steps required to Preparing the Vehicle install and retain the M6 nut blocks in the roof. Refer to our Fitting Guide video (find a QR code on the cover) To install with the Large Side Molle for more details.
- Page 4 Installing the Brackets Installing the Barrier To install the Light Cargo Barrier: Remove the head rests and slide on the head rest brackets. Install the handle brackets to the Re-install the head rests with captive nuts we installed earlier. brackets in place. Ensuring the nutsert is towards the front of the vehicle, tighten Position the main barrier against to secure.
-
Page 5: Bolt Torque
For further information call 07 3180 1470 or email info@kaon.com.au Disclaimer: The products sold by KAON should not be modified, and are for use only on the vehicles specifically stated. KAON will not be liable for any damages arising out of the use or misuse of it’s products. It is the customers responsibility to ensure the products are safely...
