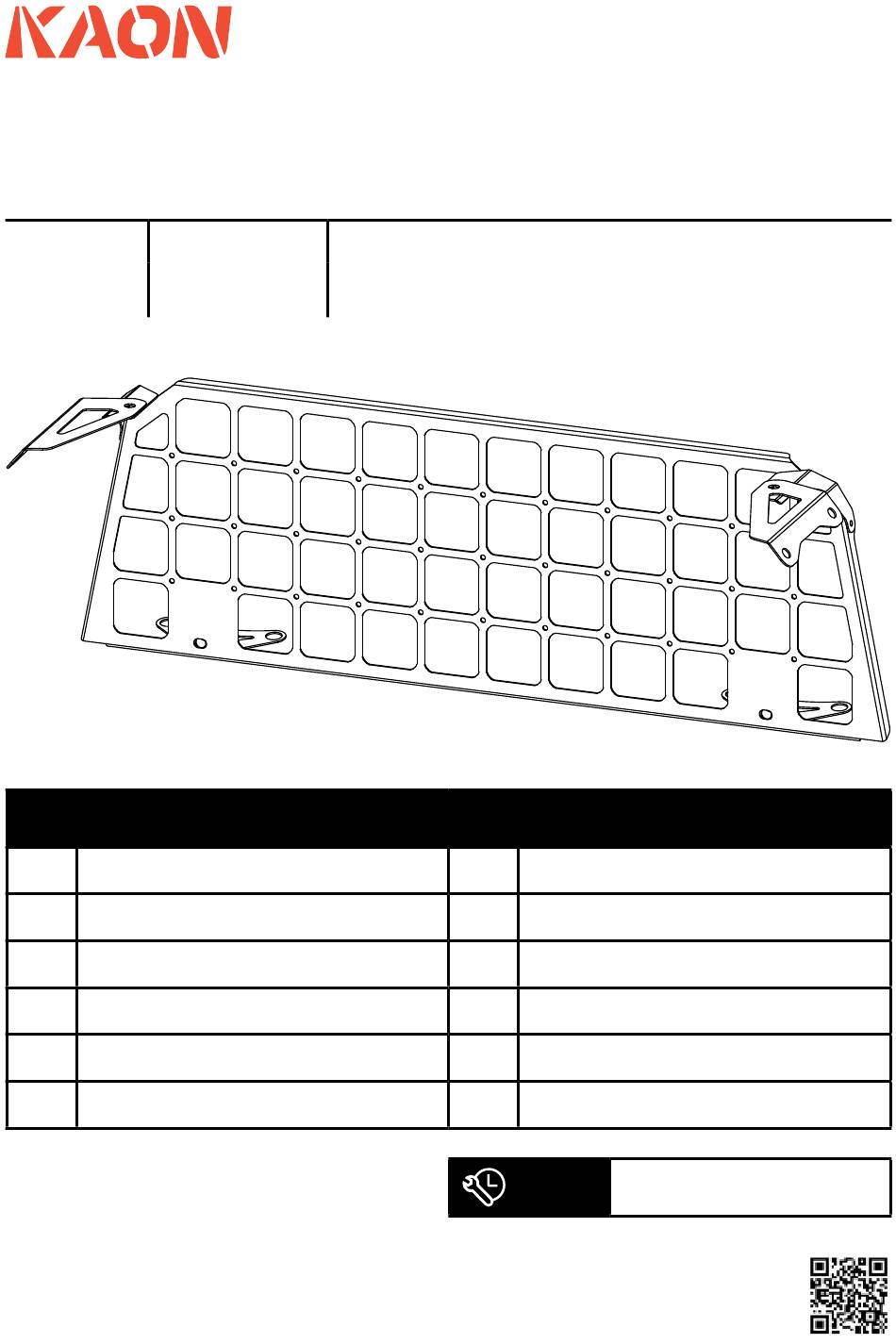

F I T T I N G I N S T R U C T I O N S F O R
Light Cargo Barrier
S K U
KS0606
Included contents
Q T Y
C O M P O N E N T
1

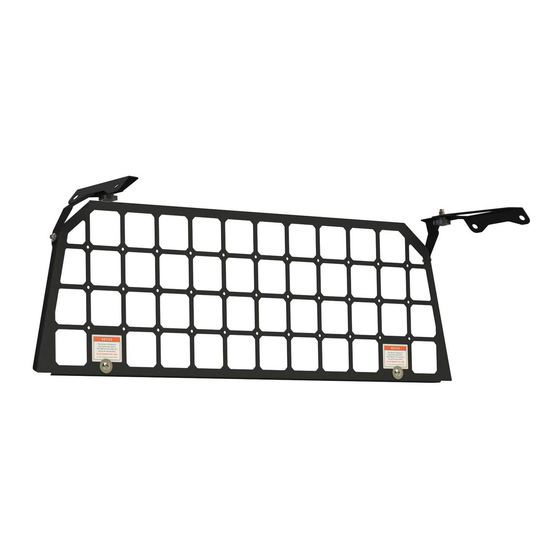

Light Cargo Barrier
2
Head Rest Bracket
2
Handle Bracket (LHS & RHS)
2
Barrier Bracket (LHS & RHS)
2
M10 x 20 Black Plastic Knob
Scan the QR code to watch the video installation guide,
or for further information contact KAON on 07 3180 1470 or info@kaon.com.au
V A R I A N T
7-Seater
C O M P A T I B I L I T Y
Toyota Prado 150, Lexus GX 460
Q T Y
2
2
2
2
2
Time
C O M P O N E N T
M10 Wave Washer
M6 X 18 X 1.6 DIN Flat Washer
M10 x 20 Button Head Socket Screw
M10 x 30 x 2.5 DIN Flat Washer
M6 x 16 Flanged Hex Bolt G8.8
30 minutes / Half a beer

Advertisement

loading
Need help?

Need help?

Do you have a question about the KS0606 and is the answer not in the manual?

Questions and answers

Related Manuals for Kaon KS0606

Summary of Contents for Kaon KS0606

  • Page 1 M10 x 20 Black Plastic Knob M6 x 16 Flanged Hex Bolt G8.8 Time 30 minutes / Half a beer Scan the QR code to watch the video installation guide, or for further information contact KAON on 07 3180 1470 or info@kaon.com.au...
  • Page 2 Molle as well. Shelf & Molle install. fitting guide. Are you installing other Are you installing other Are you installing other KAON Storage Products? KAON Storage Products? KAON Storage Products? With the foundation in place, it’s time to mount any other accessories,...
  • Page 3 Let’s get to work. Installing the Brackets To install the Light Cargo Barrier: Install the handle brackets to the Preparing the Vehicle roof mounts, as pictured. Ensuring the nutsert is towards the front of Pry open the plastic covers on the the vehicle, tighten to secure.
  • Page 4 Assembling the Barrier Installing the Barrier Attach the barrier brackets to Remove the head rests and the barrier using the supplied slide on the head rest brackets. bolts, ensuring that the barrier Re-install the head rests with brackets are attached in the correct brackets in place.

  • Page 5: Bolt Torque

    For further information call 07 3180 1470 or email info@kaon.com.au Disclaimer: The products sold by KAON should not be modified, and are for use only on the vehicles specifically stated. KAON will not be liable for any damages arising out of the use or misuse of it’s products. It is the customers responsibility to ensure the products are safely...
