F I T T I N G I N S T R U C T I O N S F O R

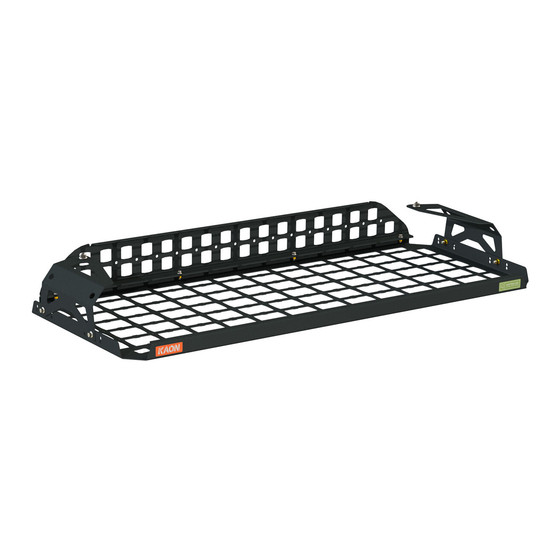

Standalone Rear Roof Shelf
S K U
KS0640
Included contents
Q T Y
C O M P O N E N T
1
Rear Roof Shelf
1
Rear Fence
2
Handle Brackets
Scan the QR code to watch the video installation guide,
or for further information contact KAON on 07 3180 1470 or info@kaon.com.au
C O M P A T I B I L I T Y
Toyota Prado 150
Q T Y
C O M P O N E N T
4
M5 x 12 Flanged Hex Bolts
4
M5 Flanged Nuts
4
M6 x 16 Flanged Bolts
4
M6 Flanged Nuts
Time
30 minutes / Half a beer
Advertisement
Related Manuals for Kaon KS0640
Summary of Contents for Kaon KS0640
- Page 1 M5 Flanged Nuts Handle Brackets M6 x 16 Flanged Bolts M6 Flanged Nuts Time 30 minutes / Half a beer Scan the QR code to watch the video installation guide, or for further information contact KAON on 07 3180 1470 or info@kaon.com.au...
- Page 2 Molle as well. Shelf & Molle install. fitting guide. Are you installing other Are you installing other Are you installing other KAON Storage Products? KAON Storage Products? KAON Storage Products? With the foundation in place, it’s time to mount any other accessories,...
- Page 3 Let’s get to work. Assembling the Shelf Attach the rear fence to the shelf using M5 nuts and bolts. Preparing the Vehicle Tighten to secure. Pry open the plastic covers on the rear grab handles with a small flatblade screwdriver or trim tool. Use a 10mm socket to remove the rear handles.
- Page 4 Installing the Brackets Installing the Shelf To install the Standalone Shelf With the brackets up, it’s time to with or without a Light Cargo Barrier: install the shelf itself. Whilst this can be done on your own, you may Attach the handle brackets using find it easier to ask a mate for help.
-
Page 5: Included Contents
M10 x 20 Black Plastic Knob M6 x 16 Flanged Hex Bolt G8.8 Time 30 minutes / Half a beer Scan the QR code to watch the video installation guide, or for further information contact KAON on 07 3180 1470 or info@kaon.com.au... - Page 6 Molle as well. Shelf & Molle install. fitting guide. Are you installing other Are you installing other Are you installing other KAON Storage Products? KAON Storage Products? KAON Storage Products? With the foundation in place, it’s time to mount any other accessories,...
- Page 7 Let’s get to work. Installing the Brackets To install the Light Cargo Barrier: Install the handle brackets to the Preparing the Vehicle roof mounts, as pictured. Ensuring the nutsert is towards the front of Pry open the plastic covers on the the vehicle, tighten to secure.
- Page 8 Assembling the Barrier Installing the Barrier Attach the barrier brackets to Remove the head rests and the barrier using the supplied slide on the head rest brackets. bolts, ensuring that the barrier Re-install the head rests with brackets are attached in the correct brackets in place.
-
Page 9: Bolt Torque
For further information call 07 3180 1470 or email info@kaon.com.au Disclaimer: The products sold by KAON should not be modified, and are for use only on the vehicles specifically stated. KAON will not be liable for any damages arising out of the use or misuse of it’s products. It is the customers responsibility to ensure the products are safely...
