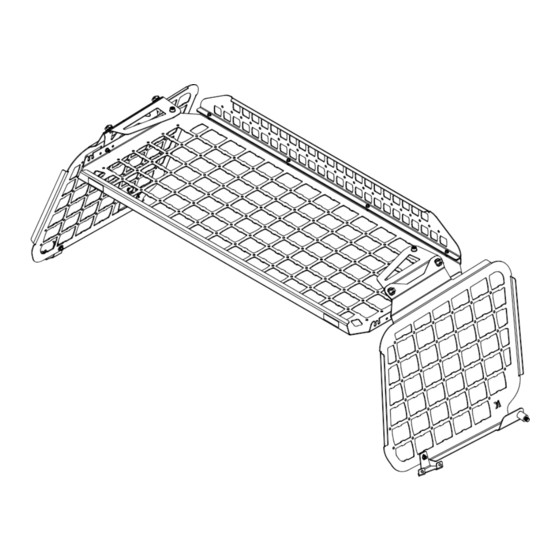

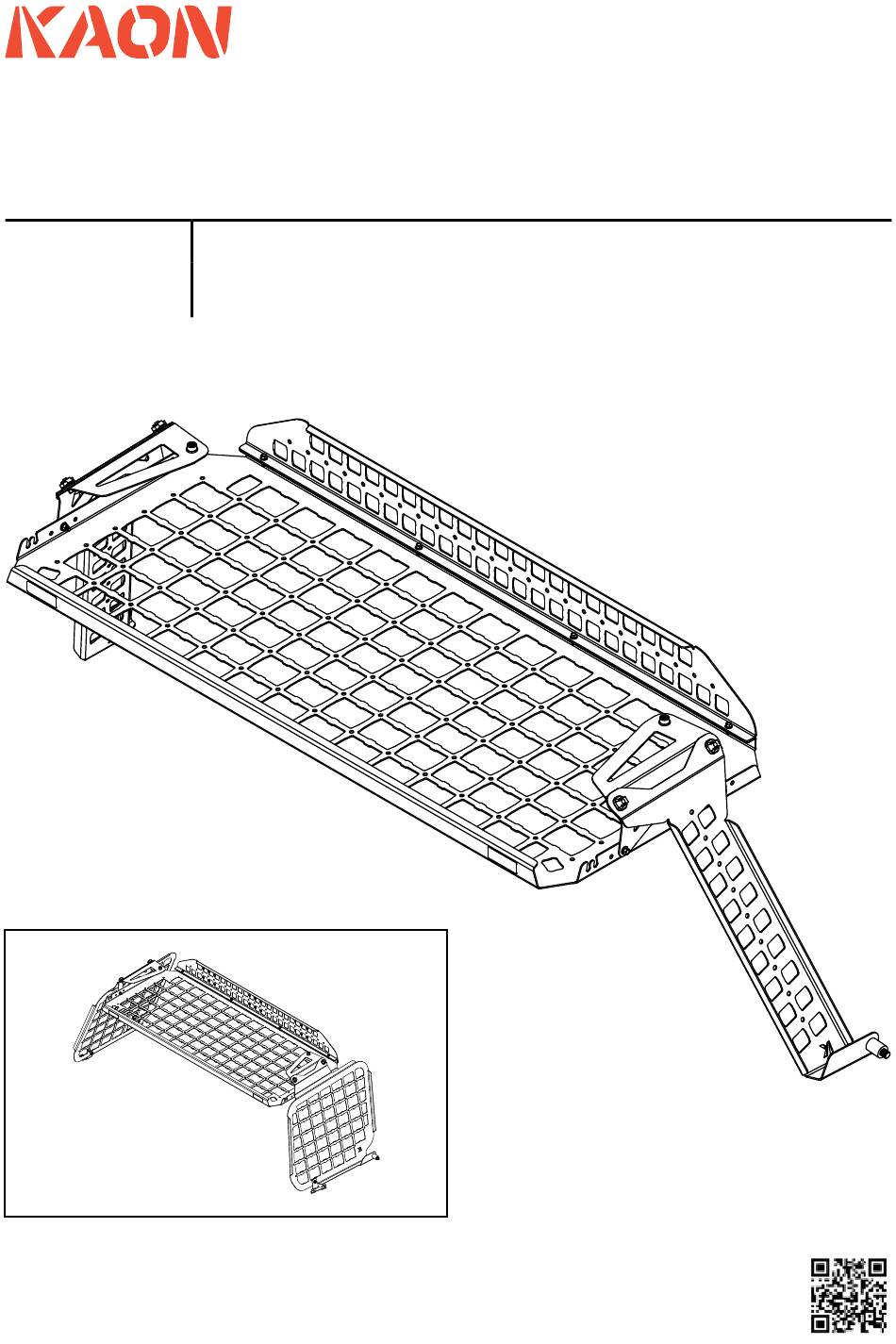

- Page 1 C O M P A T I B I L I T Y KS0730 Toyota LandCruiser LC200 Large Side Molle Panel Option Scan the QR code to watch the video installation guide, or for further information contact KAON on 07 3180 1470 or info@kaon.com.au...
- Page 2 Shelf & Molle install. fitting guide. Are you installing other Are you installing other Are you installing other KAON Storage Products? KAON Storage Products? KAON Storage Products? With the foundation in place, it’s time to mount any other accessories,...
- Page 3 What’s included. Let’s get to work. Preparing the Vehicle If installing with the Large Side Molle Panels: Follow the instructions included with the Large Side Molle Panels first. This will include the installation of the handle brackets. Once complete, skip to step 24. Pry off the plastic cover on the rear grab handle mounts.
- Page 4 M6 Roof Nut Installation Preparing the Bottom Mount IMPORTANT: Please read and understand the steps required to With the nuts installed in the roof, install and retain the M6 nut blocks next we need to drill a hole to in the roof. Refer to our Fitting Guide access the lower captive nut in the video (find a QR code on the cover) vehicle frame, which sits behind...
- Page 5 Molle Panel Installation Preparing the Shelf Follow the instructions to suit your Attach the rear fence to the shelf configuration below. using M5 nuts and bolts. Tighten to secure. To install the Large Side Molle Panel: You will have already installed the Large Side Molle Panel and Standalone Shelf handle bracket as per the instructions provided.
- Page 6 Shelf Installation With all the panels and brackets up, it’s time to install the shelf itself. Whilst this can be done on your own, you may find it easier to ask a mate for help. Use the M6 bolts and nuts to install the shelf to the bracket.
- Page 7 For further information call 07 3180 1470 or email info@kaon.com.au Disclaimer: The products sold by KAON should not be modified, and are for use only on the vehicles specifically stated. KAON will not be liable for any damages arising out of the use or misuse of it’s products. It is the customers responsibility to ensure the products are safely...
