F I T T I N G I N S T R U C T I O N S F O R

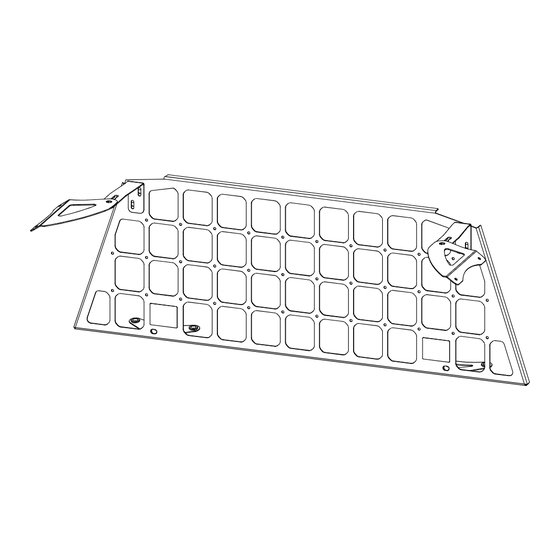

Light Cargo Barrier
S K U
KS0018
Included contents
Q T Y
C O M P O N E N T
1
Light Cargo Barrier
2
Head Rest Bracket
2
Handle Bracket (LHS & RHS)
2
Barrier Bracket (LHS & RHS)
2
M10 x 20 Black Plastic Knob
Scan the QR code to watch the video installation guide,
or for further information contact KAON on 07 3180 1470 or info@kaon.com.au
C O M P A T I B I L I T Y
Toyota Prado 120 / Lexus GX 470
Q T Y
C O M P O N E N T
4
M6 X 18 X 1.6 DIN Flat Washer
4
M6 x 16 Flanged Hex Bolt G8.8
2
M10 x 20 Button Head Socket Screw
2
M10 x 30 x 2.5 DIN Flat Washer
Time
30 minutes / Half a beer
