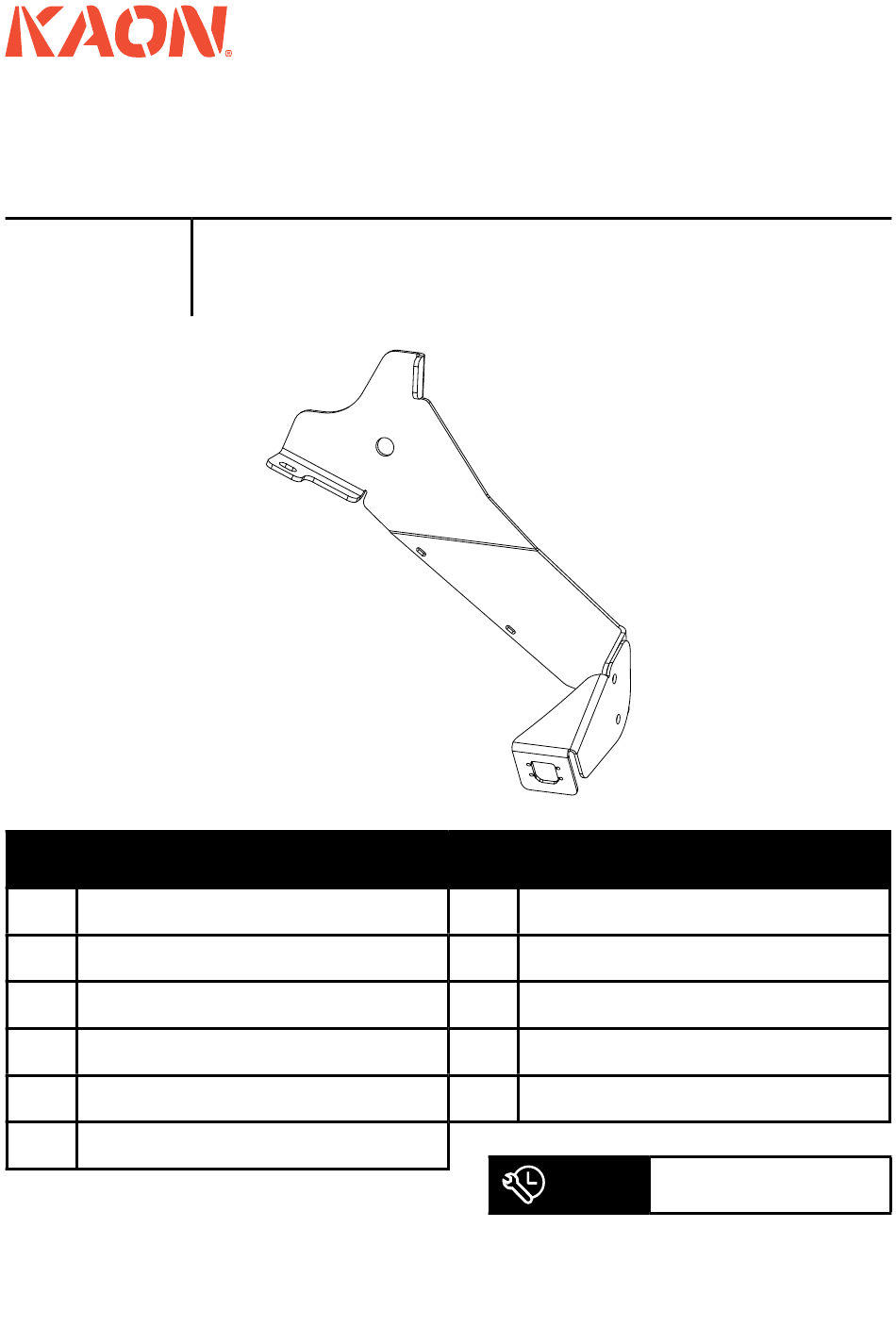

F I T T I N G I N S T R U C T I O N S F O R
Reversing Camera Relocation Bracket
S K U
KS0382
Included contents
Q T Y
C O M P O N E N T
1

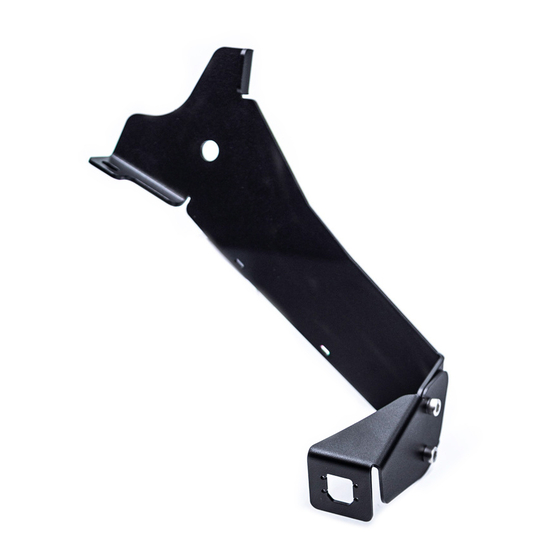

Spare Tyre Mount Bracket
1
Camera Bracket
1
M10x1.25 x 30 Hex Bolt G8.8
1
M10 DIN Washer
1
M6x12 Socket Head Cap Screw
For further information contact KAON on 07 3180 1470 or info@kaon.com.au
C O M P A T I B I L I T Y
Toyota FJ Cruiser
Q T Y
C O M P O N E N T
1
M6x16 Socket Head Cap Screw
1
M6 DIN Washer
2
M6 Nyloc Nut
2
Small Cable Tie
Time
20 minutes / Half a beer
Advertisement
Table of Contents
Related Manuals for Kaon KS0382
Summary of Contents for Kaon KS0382
- Page 1 M6 DIN Washer M10x1.25 x 30 Hex Bolt G8.8 M6 Nyloc Nut M10 DIN Washer Small Cable Tie M6x12 Socket Head Cap Screw Time 20 minutes / Half a beer For further information contact KAON on 07 3180 1470 or info@kaon.com.au...
-
Page 2: Bolt Torque
Bolt Torque 10mm 12mm D I A M E T E R ( mm) 5 Nm 9 Nm 22 Nm 44 Nm 77 Nm N E W T O N - M E T R E S ( Nm) - Page 3 Let’s get to work. Preparation To start with, remove the spare tyre and clean any dusty or dirty surfaces. The camera is nested within a metal bracket using three M8 bolts, remove those with a 12mm socket. Once removed, unplug the camera by pressing the clip as shown.
-
Page 4: Attaching The Camera
Attaching the Camera Remove the shroud and screws from the back of the factory camera bracket. Attach the camera to the smaller supplied pivoting Camera Bracket, using the small screws removed earlier. Ensure that the serial number (top of the camera) faces the top of the bracket as shown, so your camera is the right way up. -
Page 5: Bracket Installation
Bracket Installation Loosen all the bolts holding the spare tyre carrier, and remove the bottom right one altogether. Position the Spare Tyre Mount Bracket under the bottom corner, ensuring the raised edges of the bracket sit firmly against the sides of the carrier. -
Page 6: Camera Installation
Camera Installation Locate the small slot in the Spare Tyre Mount Bracket and insert the white clip you freed earlier, as pictured. Loosely attach the Camera Bracket with the camera installed to the larger Spare Tyre Mount Bracket, using the Socket Head Cap Screws. Use the M6x12 and one Nyloc nut in the top hole, and the M6x16, M6 Washer and a Nyloc nut in the... - Page 7 Camera Installation cont. Position the cable underneath the bottom edge of the bracket and secure in place using the supplied cable ties. We’d suggest you re-attach the spare tyre before adjusting the angle and tightening the Camera Bracket, as the tyre will sit slightly within frame.
- Page 8 For further information call 07 3180 1470 or email info@kaon.com.au Disclaimer: The products sold by KAON should not be modified, and are for use only on the vehicles specifically stated. KAON will not be liable for any damages arising out of the use or misuse of it’s products. It is the customers responsibility to ensure the products are safely...
