Summary of Contents for TESmart CKS201 Master 23
- Page 1 User USB-C KVM Switch Manual CKS201 Master 23 CKS201 Master 23 English...
- Page 3 English...
-
Page 5: Copyright Notice
The ownership of the trade names and brand names adopted in this user manual belongs to their companies. Product Information For more information about TESmart products and how they can help you to enjoy your job, please visit the following TESmart website or contact an TESmart Authorized Reseller. www.tesmart.com... -
Page 6: Table Of Contents
Contents 1. Safety Tips and Warnings ··································01 10. Operation Method···········································19 2. Battery Description···········································02 10.1 Front Panel Button Switching Method 3. Warranty Information········································03 10.2 IR Remote Control 4. Preface··························································04 10.3 Keyboard Hot Keys 5. Features·························································05 11. Change Hot Key Combination····························24 6. Packing List·····················································06 7. -
Page 7: Safety Tips And Warnings
1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for USB-C KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water. -
Page 8: Battery Description
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire. -
Page 9: Warranty Information
3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. -
Page 10: Preface
EDID emulators in each input port, it can keep PCs always having correct display information. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com. -
Page 11: Features
5. Features Using 1 monitors, 1 set of keyboard and mouse to control 2 computers Ÿ Support resolution up to 8K(4320p)@60Hz and is backward compatible with Ÿ 4K(2160p)@60Hz/120Hz/144Hz DP 1.4 compliant, and also support DisplayPort Alternate Mode (DP Alt Mode) which enables the Ÿ... -
Page 12: Packing List

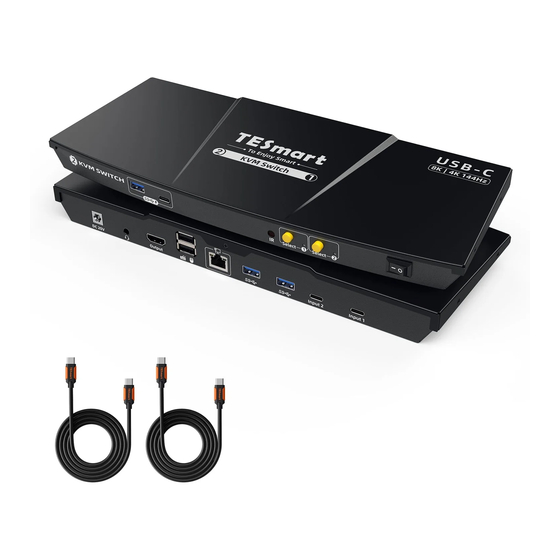

6. Packing List 1 * 2x1 USB-C KVM Switch Ÿ 2 * USB-C Cables Ÿ 1 * IR Remote Control Ÿ 1 * DC Power Adapter Ÿ 1 * User Manual Ÿ Tips: After receipt of the product, please check the packing list carefully to make sure that no components have been lost and no damage to the product has been caused during transportation. -
Page 13: Panel Description
7. Panel Description Name Function Name Function Data transfer Can be used to transfer data and charging and charge your mobile IR receiver Receive IR remote signal. port devices. Input Input selection The corresponding LEDs will be selection Select input sources separately. status lit to indicate the current selected button... - Page 14 Name Function DC 20V 20V DC power supply. 3.5 mm Audio/mic Integrated microphone and L/R audio output. HDMI output Connect to HDMI display for video output. Keyboard and mouse input For USB keyboard and mouse input. Insert the network cable into this port to let the 2 input PCs to connect LAN port to the local network area USB 3.2 Gen 1 ports...
-
Page 15: Connection Description
8. Connection Description 8.1 Connection Diagram CAT5e/6 cable Hard disk Printer drive Driver Router Ethernet Switch USB-C Cable Headset Keyboard Mouse Laptop Laptop Monitor... -
Page 16: Connection Preparation
8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ... -
Page 17: Connection Steps
8.3 Connection Steps 1. Connect PC1 and PC2 with two USB-C cable. 2. Connect external mouse and keyboard to KVM's keyboard and mouse input port. Tips: For the normal service of hotkeys, we recommend you use the full-key external keyboard with a separate [Scroll Lock] key (as shown above... - Page 18 3. Connect USB 3.0 devices to KVM's standard USB 3.0 ports. 4. Connect KVM's HDMI output port to one HDMI display with one HDMI cable.
- Page 19 5. Connect external audio device to KVM's L/R out port. 6. Use the network cable to connect the LAN port on the KVM Switch to a router or local area network switch.
- Page 20 7. Connect the power cable to KVM's DC 20V port and plug it to a power socket. 8. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work. Tips: 1 . Please refer to Page 17 for how to use the front panel charging port.
-
Page 21: Kvm Workbench
8.4 KVM Workbench A workbench with 2x1 USB-C KVM Switch successfully connected is shown as below:... -
Page 22: Function Description
9. Function Description 9.1 Built-in Network Switch 2X1 USB-C KVM Switch have a built-in USB Ethernet Adapter, which adds a standard RJ45 port to your Ultrabook, notebook that is connected to the KVM and allows you to connect your computer or tablet to a router or network switch for wired network connection. Full 1000Mbps Ethernet for fast, stable data transfer, more reliable than most wireless connections. -
Page 23: Built-In Charging Module
9.2 Built-in charging module The 2x1 USB-C KVM Switch comes with a powerful built-in charging module that allows you to charge, phone, tablet and other devices via the PD protocol while you use it. Connect the phone and tablet to the front USB-A and USB-C port of the KVM will be charged. -
Page 24: Keyboard And Mouse Emulation Mode
9.3 Keyboard and Mouse Emulation Mode We provide two keyboard and mouse modes: Pass Through Mode and Legacy Emulation Mode. Pass Through mode supports most keyboard and mouse drivers and multifunction keyboards and mice. Legacy Emulation Mode ensures the normal functioning of the keyboard, mouse, and hotkey features. -
Page 25: Operation Method
10. Operation Method 10.1 Front Panel Button Switching Method The 2x1 USB-C KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control and keyboard hot keys. You can choose your favorite switching method according to your personal needs and habits. -
Page 26: Ir Remote Control
10.2 IR Remote Control Switch to display PC 1 Switch to display PC 2 Tips: Unspecified buttons at above are non-functional. -
Page 27: Keyboard Hot Keys
10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. After press [Right-Ctrl] key twice within 2 seconds then please enter the commands within 3 seconds and the KVM will execute the corresponding commands. - Page 28 Disable/enable follow mode: Tips: "Follow Mode" refers to whether the audio devices and USB 3.0 devices connected to the front panel will switch synchronously with the keyboard and mouse focus when switching. [Right-Ctrl] →[Right-Ctrl] →[~] Right Right Ctrl Ctrl Tips: The default setting of follow mode is enabled. When you disable it, the buzzer will emit only 1 short beep;...
- Page 29 Disable/enable built-in network card: Right Right Ctrl Ctrl [Right-Ctrl] →[Right-Ctrl] →[F4] Tips: The built-in network card is enabled by default. Enable it will trigger the buzzer to beep twice and disable it will trigger the buzzer to beep once. Turn on/off mouse wheel switching mode: Tips: Mouse wheel switching method can quickly switch input sources by mouse operation, double- click the mouse wheel to switch to the next input port.
-
Page 30: Change Hot Key Combination
11. Change Hot Key Combinations For your convenience, we have built-in a custom hotkey function. By setting, you can use any key on the keyboard connected to the KVM as the trigger key for the hot key command. The default hotkey trigger key is the [Right-CTRL]. The custom hotkey function can be set in the following ways: Method 1: After powering on the KVM, press and keep holding the [Select ②] button on the front panel... - Page 31 V002...
- Page 32 To Enjoy Smart CKS201 Master 23 Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
