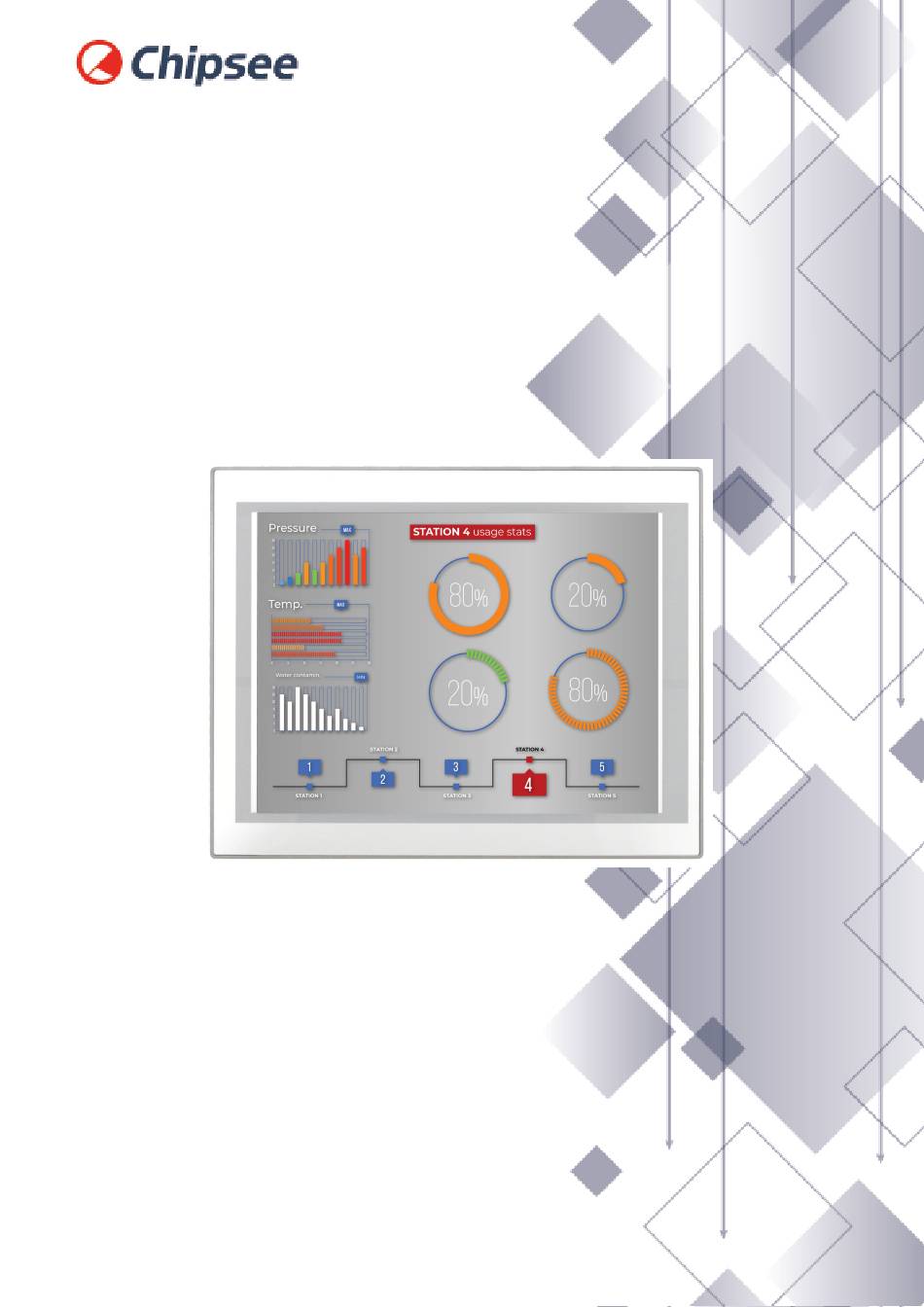

- Page 1 Industrial PC PPC-A72-150-P PN: CS10768R150P Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-A72-150-P 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232+RS485+CAN+GPIO Connector 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. -
Page 3: Ppc-A72-150-P
PPC-A72-150-P PPC-A72-150-P Front View Rear View Chipsee Page 3 of 18... -
Page 4: Product Overview
Side View 2 Product Overview ® The Cortex -A72/53 series PPC-A72-150-P (PN: CS10768R150P) is a high-quality industrial panel PC. It features a 15.0” ten-point capacitive touch screen with a resolution of 1024 x 768 pixels and brightness of 400 cd/m . -
Page 5: Ordering Options
It also provides a complete set of peripheral interfaces. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The... -
Page 6: Optional Features
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 7: Power Input
RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com Power Input The PPC-A72-150-P Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. Chipsee... -
Page 8: Touch Screen
Ground Power System Ground Table 94 Power Connector Note The system ground “G” is connected to power negative “-” on board. Touch Screen The PPC-A72-150-P Industrial Panel PC uses a 10-point capacitive touch screen. Chipsee Page 8 of 18... -
Page 9: Connectivity
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A72-150-P Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. - Page 10 PPC-A72-150-P RS232+RS485+CAN+GPIO Connector Isolated GPIO reduced schematic The table below offers more detailed description of every pin and its definition: RS232 / RS485 / CAN / GPIO Pin Definition: Pin Number Definition Description Chipsee Page 10 of 18...
- Page 11 PPC-A72-150-P RS232+RS485+CAN+GPIO Connector RS232 / RS485 / CAN / GPIO Pin Definition: Pin 1 CAN1_H CAN H signal Pin 2 CPU_RS232_2_RXD CPU UART2, CPU RS232 RXD signal Pin 3 CAN1_L CAN L signal Pin 4 CPU_RS232_2_TXD CPU UART2, CPU RS232 TXD signal...
-
Page 12: Usb Connectors
PPC-A72-150-P USB Connectors USB Connectors There are 2 x USB HOST connectors onboard which includes 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C , as shown in the figures below. USB 2.0 and USB 3.0 HOST Connectors (enclosed PC version) USB Type-C Connector (enclosed PC version) ... -
Page 13: Wifi & Bt Module
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). WiFi & BT Module The PPC-A72-150-P Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/ BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). -
Page 14: 4G/Lte Module
WiFi+BT Antenna SMA 4G/LTE Module The PPC-A72-150-P Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A72-150-P. SIM card does NOT support hot plug. -
Page 15: Tf Card Slot
Attention The product does not come shipped with the 4G/LTE module by default. TF Card Slot The PPC-A72-150-P Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 128GB of memory. Chipsee Page 15 of 18... -
Page 16: Audio Connectors
The product does not come shipped with the TF Card by default. Audio Connectors The PPC-A72-150-P Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer. Audio Connector (enclosed PC version) ... -
Page 17: Power Button
Please make sure the display is not exposed to high pressure when mounting into an enclosure. You can find detailed information about mounting in the Mount IPC Guide. Mechanical Specifications For PPC-A72-150-P, the outer mechanical dimensions are 376 x 300 x 57mm (W x L x H). Chipsee Page 17 of 18... -
Page 18: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
