This section provides information regarding communication interfaces
supported by this product.

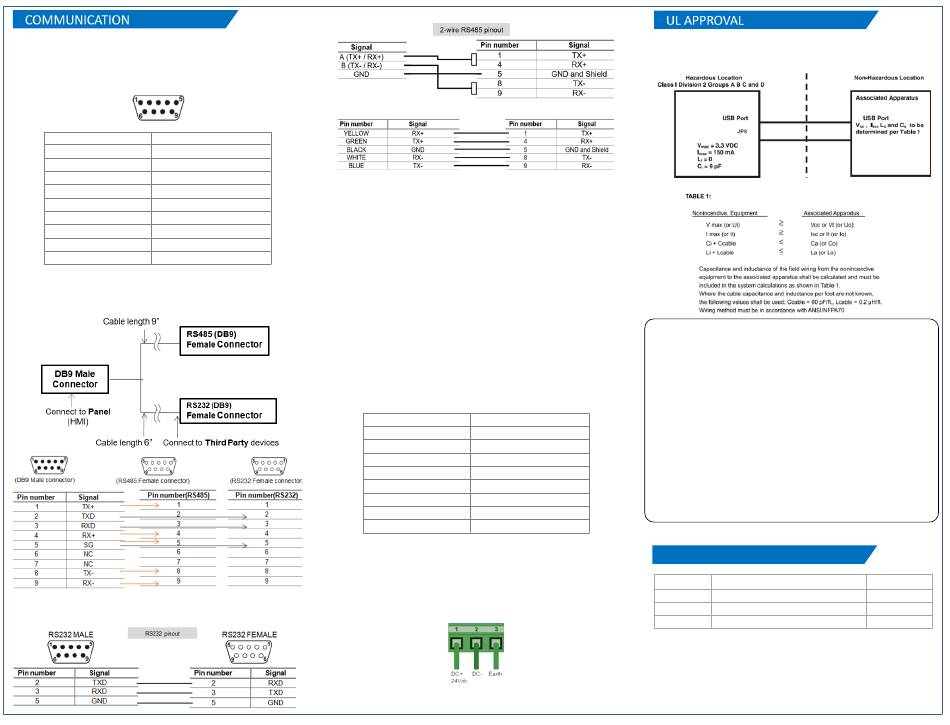

Serial Port
1 Physical Port : Com1-RS232, Com2-RS485
DE9 Female
Pin number Signal
1 TX+
2 TXD
3 RXD
4 RX+
5 SG
6 NC
7 NC
8 TX-
9 RX-
Y Type Cable
Special "Y" cable for HMC unit (two communication levels on
one port).
Cable Diagrams:
PC to unit programming cable: RS232 Pinout
2 Wire RS485 connections:
4 Wire RS485 connections:
USB Type C Port
1.USB Type C, compliant with USB 2.0 specification, self-
powered device.
2. Connector used: USB Type C Female connector.
USB Host Port
1. USB Host, compliant with USB 2.0 specification.
2. USB Host can handle only USB memory stick devices and
can source current up to 150mA only.
3. Connector used: Standard USB Type A Female connector.
Ethernet Port
1. Fully compliant with IEEE 802.3 / 802.3u standards.
2. 10/100Mbps support.
3. Connector used: Standard shielded RJ-45 female jack with
in-built speed and link activity indication LEDs.
Pin number Signal
1 TX+
2 TX-
3 RX+
4 NC
5 NC
6 RX-
7 NC
8 NC
Grounding
The optimum method for grounding electronic equipment is to
ground it separately from other high-power systems and to ground
more than one unit of electronic equipment with a single-point
ground. The Grounding marked terminal (see below) is provided on
the unit.
[Note: Do not use a ground that has an unstable impedance, such as
painted screws or a ground subject to vibration.]
CONTROL DRAWING NO# CNTL/DWG/1011-4043AM
HMC4043A-M
WARNINGS
• This equipment is suitable for use in Class I, Division 2,
Groups A, B, C and D or non-hazardous locations only.
• WARNING – EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or the area is
known to be non- hazardous.
• WARNING – EXPLOSION HAZARD - Substitution of
components may impair suitability for Class I, Division 2.
• The list of materials used in the construction of these
devices with name of sealed device - generic name of the
material and the supplier's name and type designation.
• It is recommended that the user periodically inspect the
sealed devices used, for any degradation of properties and
replace the device if any degradation is found.
REVISION HISTORY
Rev. Description
00 Initial release
01 Updated Mounting Clamp Callout
02 Minor Formatting Changes
Maple Systems Inc® reserves the right to change or discontinue
specifications and features without prior notice.
To view the latest and updated datasheets/manuals, please visit
www.maplesystems.com.
AW-10114043AM Rev. 02, 09/30/2024
