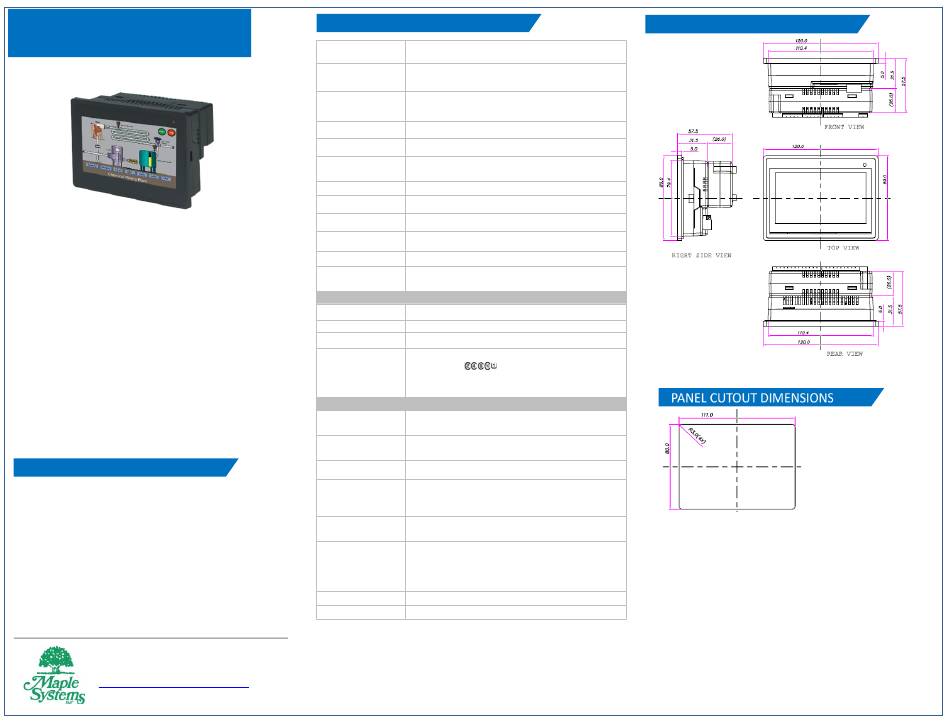

Maple Systems HMC4000 Series Quick Start Manual

HMC4043A-M Series
QUICK START GUIDE
Product Description:

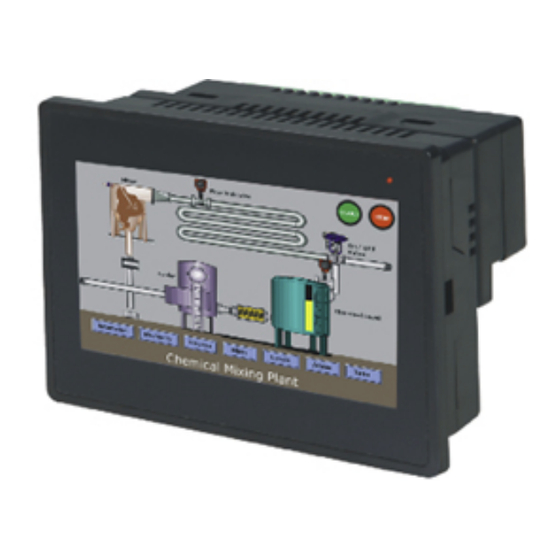

HMC4043A-M: 4.3", 480 x 272 pixels, WQVGA color TFT
with 4-wire analog resistive touch screen with 2 serial
ports*, one USB Device port, one USB Host port, one
Ethernet port and SD card slot. It supports 1 expansion
module.
* Refer to the communication section for more details.
Contents:
1ea HMC4043A-M (bagged and sealed)
1ea Mounting kit (2ea mounting clips)
1ea Input Power connector plug
1ea Quick Start Guide
GETTING STARTED
Perform the following steps to configure and use the
HMC4000 Series unit:
1. Install MAPware-7000 software.
2. Create your project.
3. Connect a programming cable (USB or Ethernet).
4. Save your project.
5. Download project to HMC4043 (note: you must select
the Download Firmware option for the initial download).
6. The HMC4000 unit is ready to use in the system.
For More Information, visit
https:\\www.maplesystems.com
SPECIFICATIONS
Power (Base) 24VDC(+20%, -15%), 160mA, 3.84W
Power
24VDC(+20%, -15%), 210mA, 5.04W
(With 1 Expansion)
4.3" WQVGA color TFT with 4-wire analog resistive
Display
touch screen
LEDs
1
RAM Memory 512MB
Up to 1GB that includes user application, data log,
User Application
alarms, retentive memory and logic memory
4GB
eMMC
RTC Built-in, date and time function
Expansion Supports 1 expansion slot
Weight Approx. 400gm
Panel Cutout 111(W) x 80.00(H) mm
Product
120(W) x 89(H) x 31.5(D) mm
Dimensions
Communication
Serial Port* 1 x RS232, RS485
USB Ports 1 USB Type C & 1 USB Host
Ethernet 1 Ethernet Port
Micro SD [High Capacity (4GB to 32GB)]
Speed Class:
SD Card
[While inserting and removing SD card, please make
sure to TURN OFF the power to the unit.]
Environment & Approvals
Operating
0° to 50°C
Temperature
Storage
-20° to 85°C
Temperature
Humidity
10 to 90% (Non-Condensing)
IEC 60068-2-27
Shock 25g, 11ms, 6 shocks per axis, total 18 shocks (X, Y,
Z)
IEC 60068-2-6
Vibration
5 to 150Hz, 3g peak (X, Y, Z)
EN 55011 : 2009/A1 : 2010
EN 61131-2 : 2007
EMC
EN 61000-6-2 : 2005/AC : 2005
EN 61000-6-4 : 2007/A1 : 2011
Protection IP66 for front panel mounting
APPROVALS
CE, UL (Class1 Div2) & RoHS
[ * Note: HMC4043A-M support one DE9 port that supports RS232 & RS485
levels on different pins. "Y" type cable can be used for separate RS232 and
RS485 levels simultaneously.]
(Part No.: 7431-0122)
PRODUCT DIMENSIONS
Panel Cutout Dimensions: 111.00(W) x 80.00(H) mm
Panel Thickness: Maximum 6mm
Mounting Clamps: 2
Tighten the mounting screws evenly to a torque
approximately 0.4N/m to maintain water and dust
resistance.
