Summary of Contents for SEWOO SLK-CB125 Series
- Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi- do, 18103, Republic of Korea TEL : +82-31-8077-5000 / FAX : +82-31-624-5310 http://www.miniprinter.com CB125 ENG Rev. J 05/2024...
- Page 2 MODEL : SLK-CB125 SERIES Mini Printer User’s Manual All specifications are subject to change without notice...
- Page 3 This device co mplies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA NA_Sales@miniprinter.com...
- Page 4 For USA Information to user; Caution: The user that changes or modifications not expressly approved by the Aroot Co., Ltd., responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 For Canada This class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la class B est conforme la norme NMB-003 du Canada The antenna cannot be removed (and changed) by user. NOTE This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
- Page 6 Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
-
Page 7: Table Of Contents
Table of Contents 1. Printer Features 6.1 Overview 6.1 Main feature 2. Precautions 3. List of product packing 4. Product appearance 5. Button names, indicators and functions 6. Installation and use 6.1 Connection of printer 6.2 Load paper 7. Installation of printer driver 8. -
Page 8: Printer Features
1. Printer Features 1-1. Overview This printer is a thermal receipt printer with automatic cut-off knife. It has the high printing quality, high speed, high stability and the like, and can be widely applied to commercial POS systems, catering industries and other occasions requiring on-site real-time printing of receipts. -
Page 9: Precautions
2. Precautions Install the printer on a stable and level surface and avoid excessive vibration and shock. Do not use or store in places with excessively high temperature or humidity. Connect the power adapter to a properly grounded outlet. Do not use the same outlet as an electric motor or other equipment that may cause voltage fluctuations. -
Page 10: List Of Product Packing
3. List of product packing • Quick Guide manual ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 1 Pc • Printer body ……………………………………………………………………… 1 Pc • Data cable (except network interface according to interface configuration) 1 Pc • Power adapter (including power line) ………………………………… 1 Set • Thermal paper …………………………………………………………………… 1 Roll Nota: Included items are subject to change without notice. -
Page 11: Product Appearance

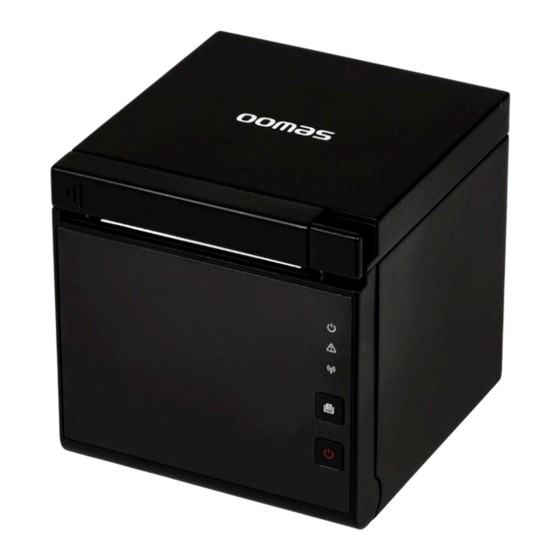

4. Product appearance... -
Page 12: Button Names, Indicators And Functions
5. Button names, indicators and functions Power LED When this light is on, it indicates that the printer power is on, and when it is off, it indicates that the printer power is off. Error LED When the printer has opened the cover, out of paper, cutter error, overheat- ing of the print head and other errors, the light flashes. -
Page 13: Installation And Use
6. Installation and use 6-1. Connection of printer A. Connect the adapter cable to printer’s power interface. B. Connect the interface cable to the back interface of the printer. C. Connect the line of cashier box to the interface of cashier box behind the printer. -
Page 14: Installation Of Printer Driver
There are two ways to drive the thermal bill printer, one is to install the driver di- rectly with WINDOWS, and the other is to use the port to drive directly. 1 Double click “SEWOO Windows Driver.exe”. 2 Select : I accept the agreement. - Page 15 3 Create a shortcut on the desktop. 4 Setup Completed:...
- Page 16 5 Select the correct interface port: 6 Select the proper printer series and click “Install Now”.
- Page 17 7 Click “Yes” to configure the port. 8 Choose the detected USB00X, click apply, shown as below:...
- Page 18 9 Select the “General” tab and then “Print Test Page” :...
-
Page 19: Cleaning Of Printer
8. Cleaning of printer The print head should be cleaned if the following conditions occur: 1. Print unclear 2. A certain vertical column of the printed page is not clear; 3. The paper feeding is noisy. The cleaning steps of print head are as follows: 1. -
Page 20: Specifications
10. Specifications Printing Method Direct Thermal Printing Speed 250 mm/sec Resolution 203 DPI Dot Pitch 0.125mm x 0.125mm Printing Width 80mm (640 Dots/Line) Font A 46 columns / 42 columns / 30 columns 180dpi Font B 62 columns / 59 columns / 40 columns Number of print columns... - Page 21 Paper type Thermal receipt paper Width 58mm, 80mm, 82.5mm Paper Thickness 0.06 ~ 0.08mm Roll Max Diameter Max. ø 83mm Roll Core 12.5mm ± 0.5mm 2 circuits(24V, Max. 1A) Cash drawer MCBF 80 Million lines Reliability TPH Life 150Km Type Guillotine Auto Cutter Life...
