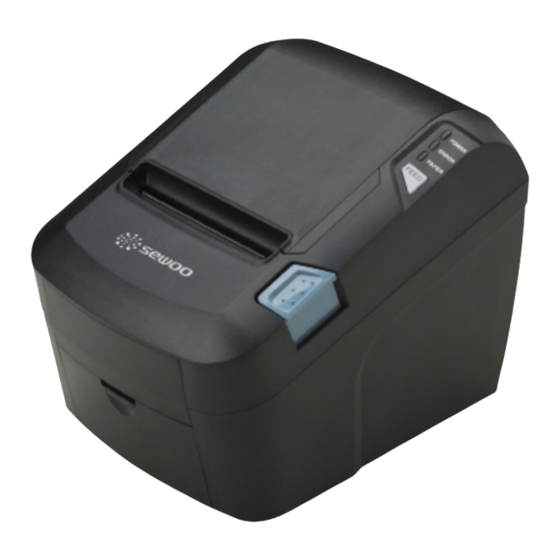

- Page 1 MODEL : SLK-TL32X Series Receipt Printer User’s Manual All specifications are subject to change without notice...
- Page 2 This device co mplies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA NA_Sales@miniprinter.com...
- Page 3 Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronics equipment.
-
Page 4: Table Of Contents
Table of Contents 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the Roll Paper 2.4 Adjustment of paper width 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicators 4. Self Test 5. -
Page 5: Parts Identifications
1. Parts Identifications CONTROL PANEL Features LED indicators to indicate printer status and switches to operate PRINTER COVER the printer. Open this cover to load or replace paper. COVER OPEN LEVER Pull down this lever to open the printer cover. POWER SWITCH Used to turn on/off power to the printer. -
Page 6: Setting Up The Printer
2. Setting Up the Printer 2-1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. The Printer Roll Paper Adaptor(Optional) Interface Cable(optional) -
Page 7: Connecting The Cables
2-2. Connecting the Cables You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : INTERFACE CONNECTOR POWER CONNECTOR INTERFACE CONNECTOR(USB) For connection to a For connection of For connection to a... - Page 8 2-2-1. Interface Connector 9 Pin Serial USB “B” TYPE 9Pin Serial Interface SIGNAL DESCRIPTION Input Printer transmit data line RS-232C level Output Printer receive data line RS-232C level 4, 7 Output Printer handshake to host line RS-232C level System Ground Input Data Send Ready 1, 8, 9...
- Page 9 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing. SIGNAL Description Signal GND Drawer kick-out drive signal 1 Output Drawer open/close signal...
-
Page 10: Loading The Roll Paper
2-3. Loading the Roll Paper • NOTE: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.(Turn off power switch) 1 Make sure that the printer is not receiving data;... - Page 11 5 Be sure to note the correct direction that the paper comes off the roll. 6 Pull out a small amount of paper, as shown. Then, close the cover. 7 Tear off the paper as shown.
- Page 12 CAUTION: When the paper is jammed from cutter, the top cover might be stuck as well. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming. 1 Make sure the printer is turned off.
-
Page 13: Adjustment Of Paper Width
2-4. Adjustment of paper width 1 Please adjust the Paper Guide to fit to the paper width as the direction of arrow. 2 Tight the screw after adjusting the Paper Guide. 3 Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.3-1. -
Page 14: Control Panel And Other Functions
3. Control panel and other functions 3-1. Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’s status. Control Panel Button The button can be disabled by the ESC c 5 command. -
Page 15: Self Test
4. Self Test The self-test result indicated whether the printer is operating properly. Also with this, user can check following options or status of the printer. Control circuit Printer mechanism Printing quality ROM version Interface setting This test is independent of any other equipment or software. Running the self test 1 Make sure the printer is turned off and the printer cover is closed properly before performing the self test. -
Page 16: Ascii Print
5. ASCII Print ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works properly with this The ASCII PRINT test automatically ends and cuts the paper after printing the following: *** Completed *** The printer is ready to receive data as soon as it completes the ASCII PRINT. -
Page 17: Hexadecimal Dump
7. Hexadecimal Dump This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you go into the Hexa Dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands. -
Page 18: Printer Cleaning
8. Printer cleaning If the interior of the printer is dusty, printing quality can lowered. In such a case, follow the instructions below to clean up the printer. ※ NOTE: 1 Make sure to turn the printer power off prior to cleaning 2 Regarding print head cleaning, as the print head is very hot during printing, turn off the printer power and wait approximately 10 minute before start. -
Page 19: Specifications
9. Specifications Appendix A : Specifications 9-1. General Specifications 1 Printing Method Direct line thermal printing. 2 Print speed SLK-TL320 SLK-TL322 SLK-TL322ІІ 160mm/sec 200mm/sec 220mm/sec 3 Dot density 180 DPI (Hor / Ver) 180 / 180 (0.141mm / 0.141mm dot) 4 Dot density 180 DPI Max 72mm (512 dots) -
Page 20: Auto Cutter Specifications
9-2. Auto Cutter Specifications 1 Cutting Frequency Max. 30 cuts per minute 2 Thickness of paper 0.06 ~ 0.09 mm 3 Cutter Life SLK-TL320 SLK-TL322 SLK-TL322ІІ 1.5 million cuttings 1.5 million cuttings 1.8 million cuttings 9-3. Interface � USB Interface, Serial Interface 9-4. -
Page 21: Environmental Requirements
Important When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. 1 Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. 2 Be careful about installing the printer in an area where there is noise. 3 Take the appropriate measure to protect against electrostatic AC line noise, etc. -
Page 22: Command List
10. Command List Command Function REMARKS Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode DLE EOT Real-time status transmission DLE ENQ Real-time request to printer DLE DC4 Generate pulse at real-time ESC FF... - Page 23 Command Function REMARKS ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS /...
-
Page 24: Utilities
Printer F/W and Font Download are available, and BT, Wi-Fi module F/W Download is supported as an option. (F/W) It is a utility app that prints text, barcodes, images, etc. Android Utility through Bluetooth and Wi-Fi communication, and able (Sewoo M_Utility) to printer settings. -
Page 25: S/W
Mac Driver the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Ser- documents, images, and web pages without installing vice Plugin) additional apps. This is library for communication and data output with Windows SDK Thermal printer in Windows OS. - Page 26 Name Description This is library for communication and data output with iOS SDK Thermal printers in iOS. This is library for communication and data output with Linux SDK Thermal printers in Linux.
- Page 27 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi- do, 18103, Republic of Korea TEL : +82-31-8077-5000 / FAX : +82-31-624-5310 http://www.miniprinter.com TL32X Series ENG Rev G 02/2022...
