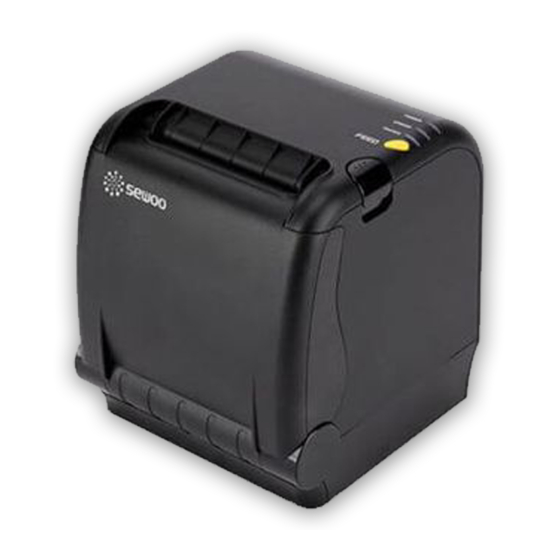

- Page 1 J. STEPHEN Lab., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do , 447-210 Republic of Korea TEL : +82-31-8077-5000 FAX : +82-31-459-8880 www.miniprinter.com MODEL : SLK-TS400 Receipt Printer User’s Manual TS400 Rev. F 10/16 All specifications are subject to change without notice...
-
Page 3: Table Of Contents
Table of Contents 1. Parts Identifications 1. Parts Identifications 2. Setting up the printer CONTROL PANEL 2.1 Unpacking Features LED indicators to indicate printer status 2.2 Connecting the cables and switches to operate the printer. 2.3 Loading the roll paper 3. -
Page 4: Setting Up The Printer
2. Setting Up the Printer 2-1. Unpacking 2-2. Connecting the Cables Your printer box should include these items. If any items are damaged or missing, please contact your All cables connect to the connector panel on the back of the printer which is shown below: dealer for assistance. - Page 5 2-2-1. Interface Connector 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510ms or less when not printing. <D-SUB 25 Female Serial> <USB “B”...
-
Page 6: Loading The Roll Paper
2-3. Loading the Roll Paper 5. Note the correct direction that the paper comes off the roll: Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. ♣Turn off power switch. -
Page 7: Control Panel And Other Functions
3. Control panel and other functions ♣CAUTION: 3-1. Control panel When the cutter is jammed, please follow the steps below. You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights let you to monitor the printer’ s status. 1. -
Page 8: Self Test
4. Self Test 5. ASCII Print The self-test result indicated whether the printer is operating properly. Also with this, user can check ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works following options or status of the printer. -
Page 9: Hexadecimal Dump
7. Hexadecimal Dump 9. Peripherals Connection This feature allows experienced users to see exactly what data is coming to the printer. This can be This product can communicate with other devices via Bluetooth or Wi-Fi(802.11a/b/g/n) useful in finding software problems. communication and cable. -
Page 10: Printer Cleaning
11. Specifications 10. Printer cleaning Important! ♣ If the interior of the printer is dusty, printing quality can be lowered. When connecting or disconnecting the power supply from the printer, be sure that the following In this case, follow the instructions below to clean the printer. cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. ♣Note : Be careful about installing the printer in an area where there is electrical noise. -
Page 11: Auto Cutter Specifications
11-2. Auto Cutter Specifications 11-5. Environmental Requirements (1) Cutting Frequency Max. 30 cuts per minute (1) Operating Temperature 0°C to 45°C (2) Thickness of paper 0.06 ~ 0.08 mm Humidity 10% to 90% RH (without condensation) (3) Cutter Life 1.5 million cuttings (2) Transport/Storage (except paper) (if the paper thickness is between 65 and 80µm) Temperature -20°C to 60°C... -
Page 12: Command List
12. Command List Command Function REMARKS Command Function REMARKS Horizontal tab ESC t Select character code table Print and line feed ESC { Turn upside-down printing mode on/off FS p Print NV bit image Print and carriage return Print and return to standard mode(in page mode) FS q Define NV bit image GS ! - Page 13 P A T E N T...
