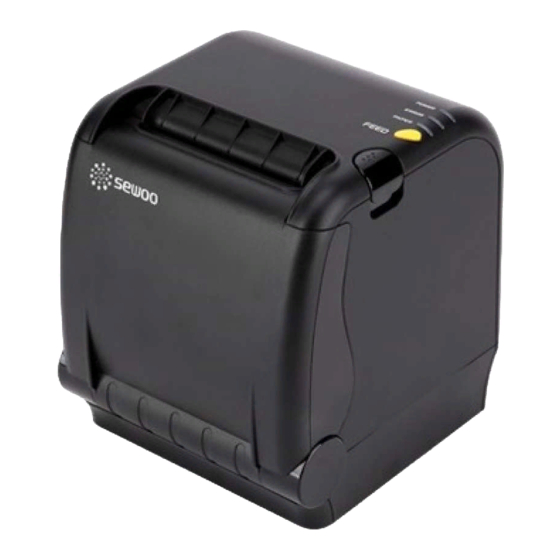

- Page 1 MODEL : SLK-TS400EB Receipt Printer User’s Manual TS400EB Rev. B 07/16 All specifications are subject to change without notice...
-
Page 3: Table Of Contents
Table of Contents 1. Parts Identifications 1. Parts Identifications 2. Setting up the printer CONTROL PANEL 2.1 Unpacking Features LED indicators to indicate printer status 2.2 Connecting the cables and switches to operate the printer. 2.3 Loading the roll paper 3. -
Page 4: Setting Up The Printer
2. Setting Up the Printer 2-1. Unpacking 2-2. Connecting the Cables Your printer box should include these items. If any items are damaged or missing, please contact your All cables connect to the connector panel on the back of the printer which is shown below: dealer for assistance. - Page 5 2-2-2. Cash Drawer Connector 2-2-1. Interface Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510ms or less when not printing. <ETHERNET> <USB “B”...
-
Page 6: Loading The Roll Paper
2-3. Loading the Roll Paper 5. Note the correct direction that the paper comes off the roll: Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. ♣Turn off power switch. -
Page 7: Control Panel And Other Functions
3. Control panel and other functions 3-1. Control panel ♣CAUTION: You can control the basic paper feeding operations of the printer with the button on the control panel. When the cutter is jammed, please follow the steps below. The indicator lights let you to monitor the printer’ s status. 1. -
Page 8: Self Test
4. Self Test 5. ASCII Print The self-test result indicated whether the printer is operating properly. Also with this, user can check ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works following options or status of the printer. -
Page 9: Hexadecimal Dump
7. Hexadecimal Dump 9. Printer cleaning This feature allows experienced users to see exactly what data is coming to the printer. This can be If the interior of the printer is dusty, printing quality can be lowered. useful in finding software problems. In this case, follow the instructions below to clean the printer. When you go into the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands. -
Page 10: Specifications
10. Specifications 10-2. Auto Cutter Specifications Important! ♣ When connecting or disconnecting the power supply from the printer, be sure that the following (1) Cutting Frequency Max. 30 cuts per minute cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. (2) Thickness of paper 0.06 ~ 0.08 mm Be careful about installing the printer in an area where there is electrical noise. -
Page 11: Environmental Requirements
11. Command List 10-5. Environmental Requirements Command Function REMARKS (1) Operating Horizontal tab Temperature 0°C to 45°C Print and line feed Humidity 10% to 90% RH (without condensation) Print and carriage return Print and return to standard mode(in page mode) (2) Transport/Storage (except paper) Temperature -20°C to 60°C... - Page 12 Command Function REMARKS ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS /...
