INDOOR UNIT
1
Air Outlet
2
Refrigerant pipes
3
Uplift Pump (Integrated)
4
Drainage Pipe
5
Air Return
6
Filter
7
Remote Control
8
Louvre for airflow
9
Refrigerant pipes
10 Interconnecting Cable
11 Wall Controller (Optional)
OUTDOOR UNIT
NOTE: DIAGRAMS FOR ILLUSTRATIVE PURPOSES ONLY
THERE IS A SET OF VALVES FOR EACH INDOOR UNIT

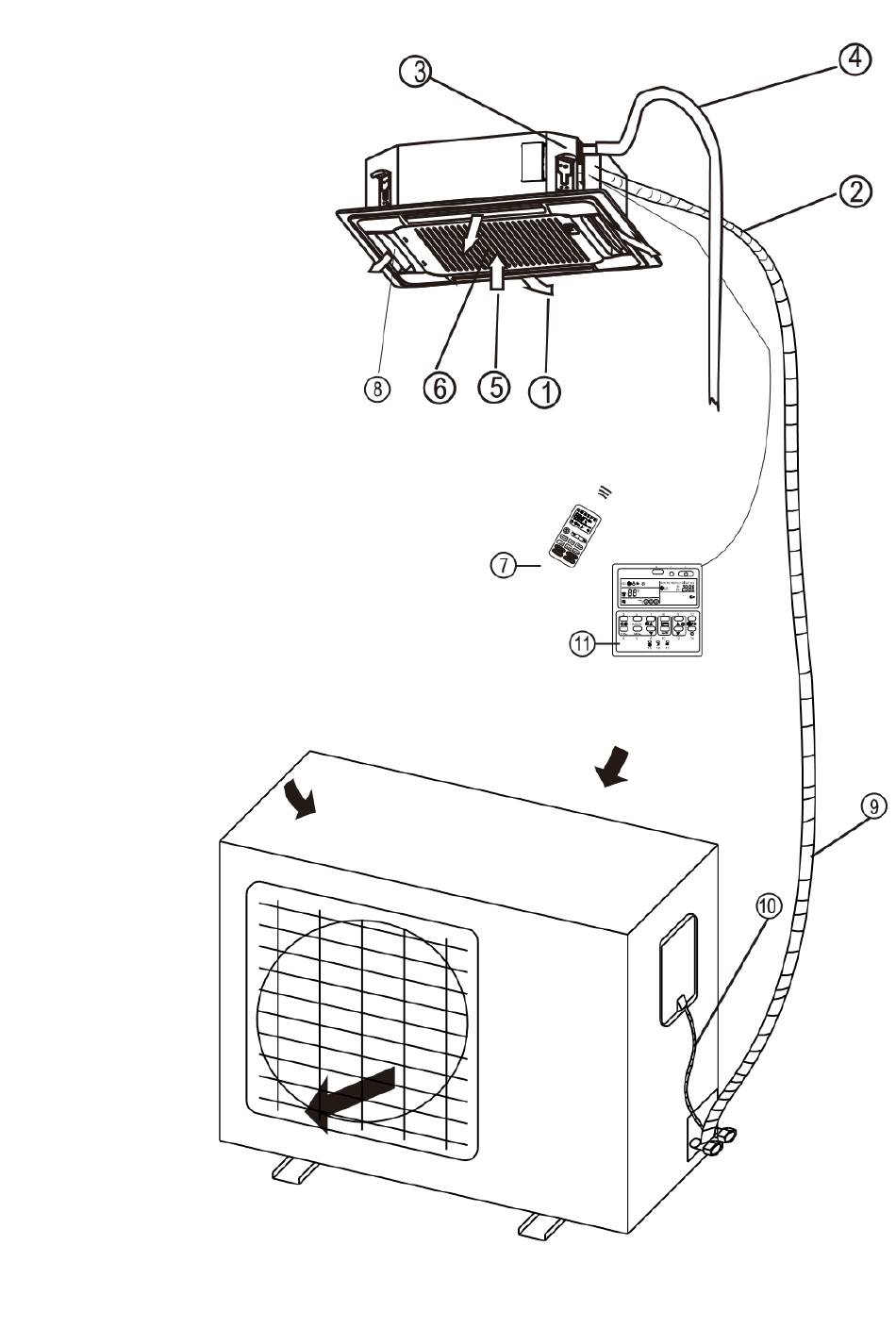

SYSTEM DIAGRAM
7
