Summary of Contents for Schaller LF-TD 60

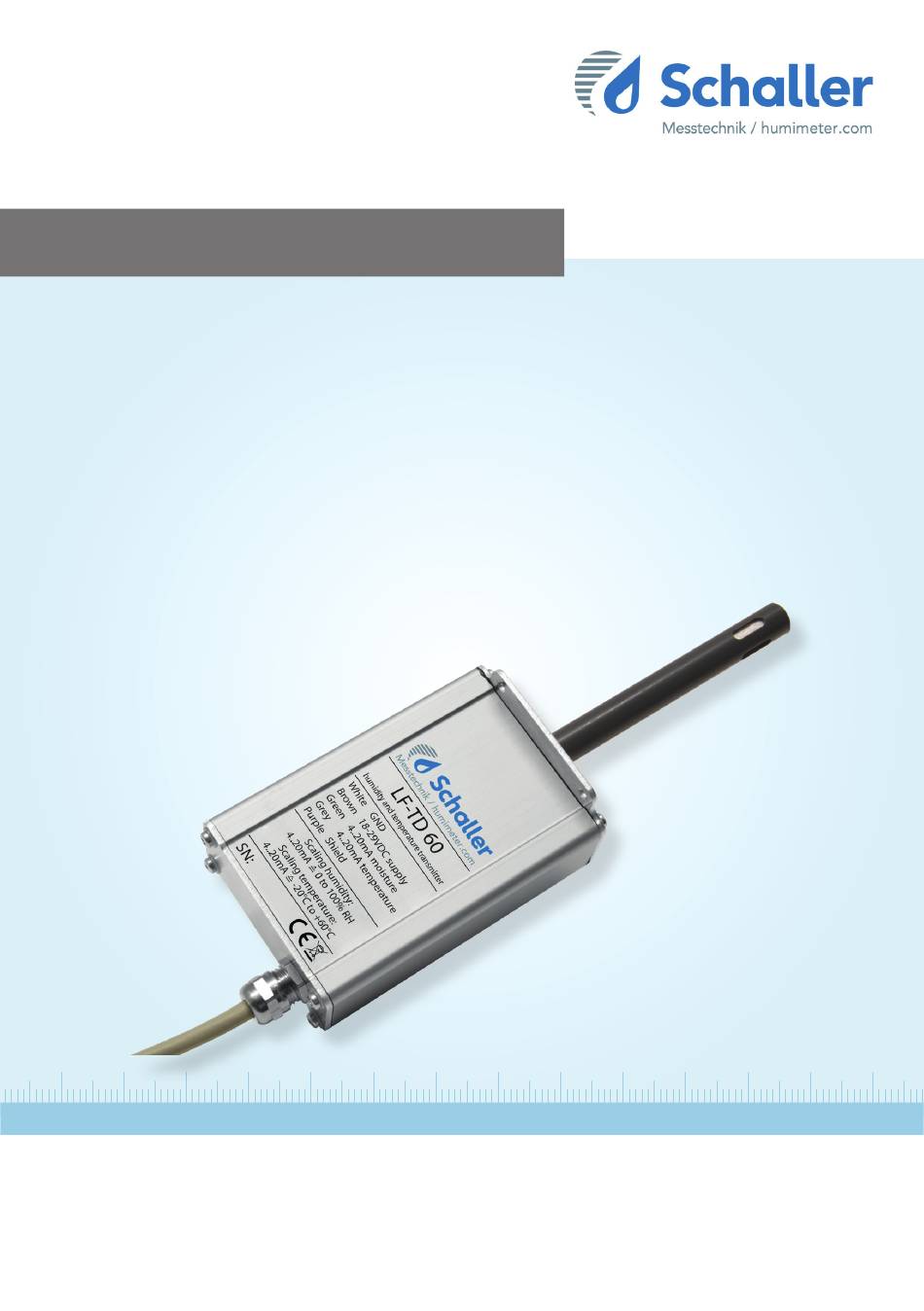

- Page 1 78,0 °F | 6,16 % | 456 kg/m | -27,3 td | 0,64 aw | 51,9 %r.H. | 14,8 % abs | 100,4 g/m | 09 m/s | 4,90 Ugl | 1 Always read this operating manual before using the LF-TD 60! Version 2.5...
-
Page 2: Your Lf-Td 60 At A Glance

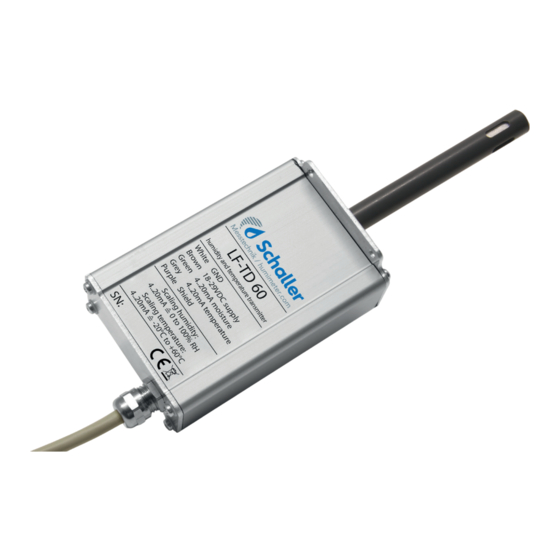

LF-TD 60 Operating Manual Your LF-TD 60 at a glance The main unit Name Air humidity and temperature sensor Sensor tube Aluminium housing Connecting cable Mounting bracket Page 2... -
Page 3: Table Of Contents
Table of contents Your LF-TD 60 at a glance ������������������������������������������������������������������������������ 2 The main unit ........................2 1� Introduction ����������������������������������������������������������������������������������� 5 Information about this operating manual ............5 Limitation of liability ..................5 Symbols used in this manual ................6 Customer service ...................6 2� For your safety ������������������������������������������������������������������������������ 7 Proper use .....................7... - Page 4 LF-TD 60 Operating Manual 11� Storage and disposal ������������������������������������������������������������������� 18 11.1 Storing the device ..................18 11.2 Disposing of the device ................18 12� Device information ���������������������������������������������������������������������� 19 12.1 EC declaration of conformity ................19 12.2 Technical data ....................23 Page 4...
-
Page 5: Introduction
Introduction Information about this operating manual This operating manual is designed to enable you to use the LF-TD 60 safely and ef- fectively. It is part of the device, has to be stored nearby and must be easily accessible to users at all times. -
Page 6: Symbols Used In This Manual
Your purchased measuring instrument can be calibrated, and the adjustment checked by using suitable test ampoules / calibration ampoules. For this purpo- se, use only the calibration solutions distributed by Schaller Messtechnik Gmbh. You can download a calibration certificate for your test ampoules / calibration ampoules with the batch number printed on the ampoul fromhttps://www. -
Page 7: For Your Safety
For your safety The device complies with the following European directives: • Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS) • Electromagnetic compatibility (EMC) The device corresponds to state-of-the-art technology. However, it is still associated with a number of residual hazards. These hazards can be avoided through strict observance of our safety information. -
Page 8: General Safety Information
The following safety information has to be observed at all times to avoid damage to objects and injury to people: • In case of damages or loose parts on the device, contact Schaller Messtechnik GmbH or your dealer. All of the device’s technical features have been inspected and tested before delivery. -
Page 9: Scope Of Supply
3.2.1 Scope of supply • LF-TD 60 • Connecting cable of 1.9 m length • Operating manual Optional accessories: • Display for LF-TD • Display with keypad for LF-TD • Relay output for moisture for LF-TD • Mounting bracket for LF-TD •... - Page 10 LF-TD 60 Operating Manual • If the sensor tube is twisted, the tightness is no longer guaranteed. • When there is a possibility of condensation, position the sensor probe slightly upwards (approx. 10 degrees angle). » The condensation water can then flow away from the sensor probe towards the housing or cable and drain off.
-
Page 11: Pin Assignment
Damage to the electronics due to incorrect connected cables Incorrect connected cables can lead to severe damage to the electronics. ► Connect all cables correctly. Wiring diagram Power supply Transmitter LF-TD 60 Brown V+ (24VDC) Power supply V+ (24VDC) White... -
Page 12: Technical Drawing Lf-Td 60
LF-TD 60 Operating Manual Technical drawing LF-TD 60 52,0 228,0 42,0 Anschlusskabel (1,9 Meter) connection cable (1.9 meter) 100,0 Schaller GmbH A-8181 St.Ruprecht Adjustment behaviour of the sensor www.humimeter.com Datum Name WolfgangS 31.01.2019 Gezeichnet LF-TD 60 Kontrolliert Norm In humidity and temperature measurement, several parameters are responsible for the Maße in mm! -
Page 13: Definition Relative Humidity
A long-term application beyond the normal application range (max. range), particularly at an air humidity of more than 80%, can lead to higher measuring errors. Back in the normal application range, the sensor will return to the indicated accuracy automatically. LF-TD 60 LF-TD 90 Pro net LF-TD 120... -
Page 14: Cleaning And Maintenance
LF-TD 60 Operating Manual Cleaning and maintenance Regularly cleaning and maintaining the device will ensure that it will have a long service life and stay in good condition. Care instructions • Do not leave the device out in the rain. -
Page 15: Checking The Calibration
Checking the calibration To do so: Calibration equipment (art.no.10006) and calibration ampoules (humidity standards art.no. 10005) required. The device, the calibration equipment and the humidity standards must have a temperature between 20.0 °C and 26.0 °C. It is recom- mended to store the device, the calibration equipment and the calibration ampoules in a room with little temperature fluctuation for 24 hours. -
Page 16: Determining The Deviation
LF-TD 60 Operating Manual ATTENTION Damage to the sensor By tilting or turning the device with mounted calibration equipment the sensor can be destroyed. ► Only lift the device with mounted calibration equipment straight up. Determining the deviation Let the sensor adjust to the humidity standard for at least 2 hours. -
Page 17: Faults
10. Faults If the measures listed below fail to remedy any faults or if the device has faults not listed here, please contact Schaller Messtechnik GmbH. Fault Cause Remedy Measuring error The temperature is outside the Only use the device in tem- operating temperature: lower peratures between -20 °C... -
Page 18: Storage And Disposal
LF-TD 60 Operating Manual 11. Storage and disposal 11.1 Storing the device The device must be stored as follows: • Do not store outdoors. • Store in a dry and dust-free place. • Protect the device from sunlight. • Avoid mechanical shocks/loads. -
Page 19: Device Information
A – 8181 St. Ruprecht Produktbezeichnung: Schaller Product designation: Typenbezeichnung: LF-TD-A ; LF-TD 60 ; LF-TD 90 ; LF-TD 120 ; LF-TD 150; LF- TD 180 ; LF-TD-E ; LF-TD-U ; LF-TD-ER ; LF-TD Profinet ; LF-TD-H Type designation: Produktbeschreibung: Messgerät zur Bestimmung der rel. - Page 20 LF-TD 60 Operating Manual Für das angeführte Produkt ist eine vollständige Dokumentation mit Betriebsanleitung in Originalfassung vorhanden. For the mentioned product a complete documentation with manual of instruction in original version is available. Bei Änderungen, die nicht vom Hersteller spezifiziert sind, verliert diese Konformitätserklärung die Gültigkeit.
- Page 21 Max-Schaller-Straße 99 A – 8181 St. Ruprecht Product designation: Schaller LF-TD-A ; LF-TD 60 ; LF-TD 90 ; LF-TD 120 ; LF-TD 150; LF- Type designation: TD 180 ; LF-TD-E ; LF-TD-U ; LF-TD-ER ; LF-TD Profinet ; LF-TD-H Product description:...
- Page 22 LF-TD 60 Operating Manual For the mentioned product, a complete documentation with manual of instruction in original version is available. In case of any changes not agreed upon with the manufacturer, this declaration of conformity loses its validity. St. Ruprecht a.d. Raab, 31.07.2022 …............
-
Page 23: Technical Data
12.2 Technical data Measuring range 0 % to 100 % rel. air humidity Calibration rel. air humidity 10 % to 90 % Accuracy rel. air humidity +/- 2.0 % (at 25 °C) Measuring range temperature -20 °C to +60 °C Calibration temperature +10 °C to +60 °C Accuracy temperature... - Page 24 Schaller Messtechnik develops, produces and sells professional moisture meters and turnkey solutions. Schaller Messtechnik GmbH Max-Schaller-Straße 99, A - 8181 St. Ruprecht an der Raab Tel +43 (0)3178 - 28899 , Fax +43 (0)3178 - 28899 - 901 info@humimeter.com, www.humimeter.com...
