Summary of Contents for Schaller humimeter BMA

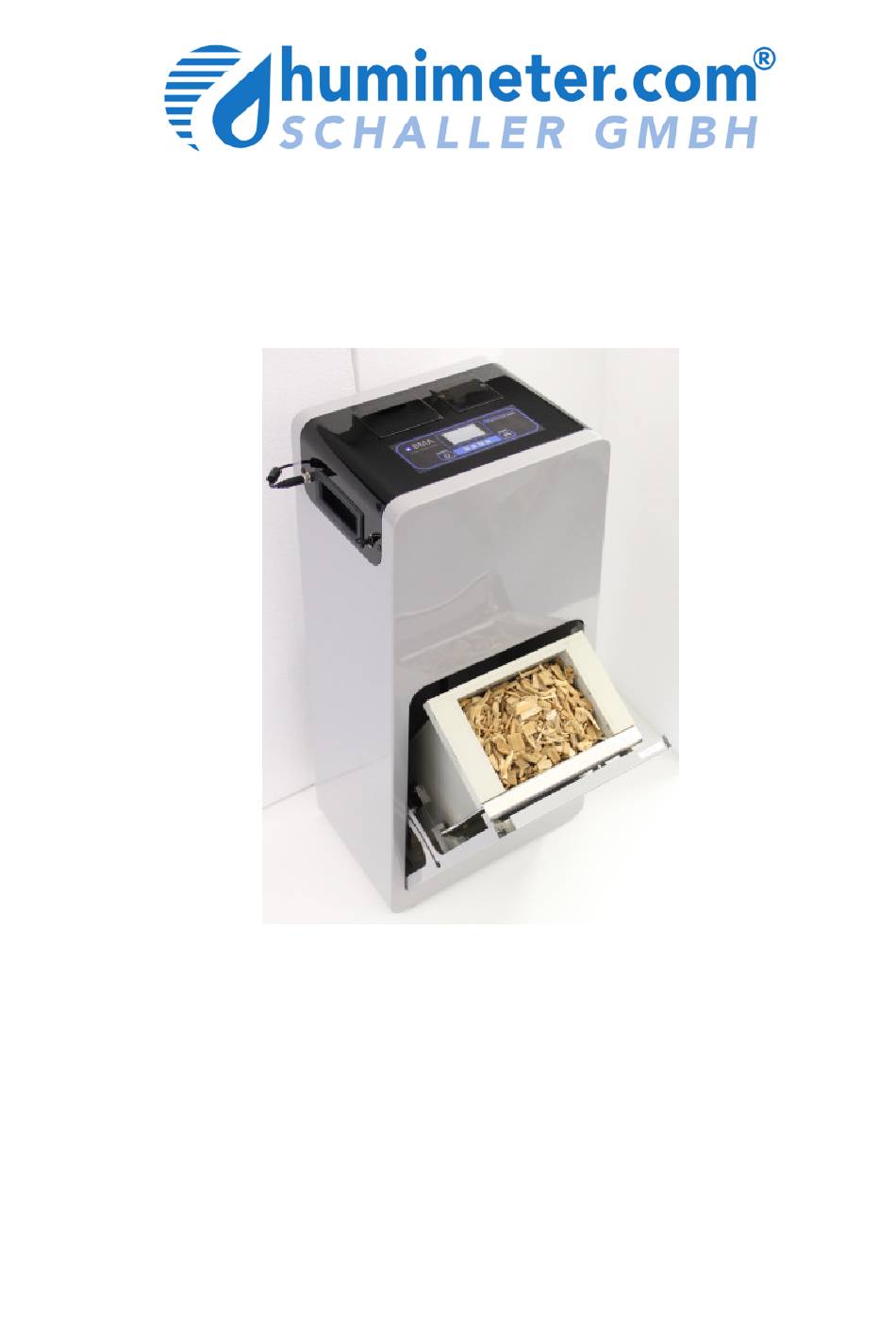

- Page 1 User manual Moisture meter for determining water content of biomass humimeter BMA version 1.8 © Schaller GmbH 2014...

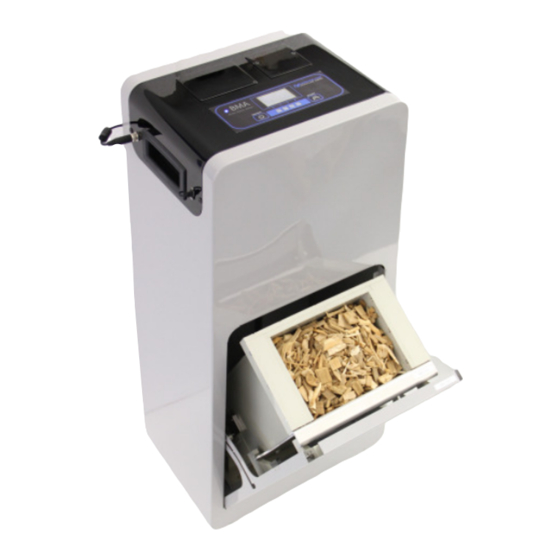

- Page 2 Design of the device display start push button ON/OFF button LED (status) power supply interface measuring drawer bulk density (option) material temperature atro weight/m³ (option) water content page 2 version 1.8...
- Page 3 Close the drawer and push it down (normally this is effected automatically). Plug in the round plug of the delivered power supply unit at the humimeter BMA and tighten it. 4. Plug in the power supply unit into a Schuko socket (230VAC).
-
Page 4: Measuring Procedure
Measuring procedure 1. Open the drawer of the humimeter BMA and take out the measuring box. For that, lift the box and then pull it out. Completely fill up the measuring box with . For that you the material to measure must use the delivered bucket. - Page 5 Saving of measuring values If desired the measuring values can be saved in the store menu by pressing the button ( button). The storage was successful when the number in front of symbol increases. To reach the store menu please press the left button ( ) as long as the symbol appears.
-
Page 6: Calibration Curves
(EN 14774). At page 12 and 13 you find pictures of different sorts of wood chips. Determination of the material reference moisture The humimeter BMA determines the water content, this is the moisture related... -
Page 7: Menu Level Overview
Keypad symbols Menu level overview Measuring window: Rolling menu Type selection menu On/Off Switch upper Switch lower Next calibration curve Save Last calibration curve Watch saved data Power off (3 sec.) Add suppliers data Store menu Menu: Enter Switch upper Watch last saved data Save new value Switch lower... - Page 8 The bigger connector has to be connected to a USB slot on your PC. Start the LogMemorizer software on your PC and switch on your humimeter BMA. The data transfer can be started on your humimeter or on the software:...
-
Page 9: Print Saved Data
Print saved data (only possible with optional integrated printer) To print out your saved data, send a print job at your humimeter device. button until you reach For that press the the menu (see image on the right). Select the menu item „Print logs“ and confirm by pressing . - Page 10 Several functions Setting the clock 2 times -> Options -> Date / Time Enter date and time using the button. Pressing the button the cursor shifts to the next place. Pressing the button (OK) your entry will be saved. Info: If the power supply unit is unplugged the clock stands still! Unlocking the instrument (Super User) 2 times - Options –...
- Page 11 Definition of important units for wood chips accounting version 1.8 page 11...
- Page 12 Afterwards the contacts have to be cleaned with alcohol. If after that procedure the self-calibration is still not successful, please contact Schaller GmbH. Note: For the self-calibration the measuring chamber has to be empty and cleaned! Pictures of wood chips types...
- Page 13 Coarse ch. Industr. WC version 1.8 page 13...
- Page 14 Notes for bulk density and bone dry weight (atro) / m³ For determining the bulk density according to the norm EN14961 a round bucket is used. As the humimeter BMA uses a rectangular measuring box, we have entered a compensation factor in the device.
- Page 15 26 kg Weight (with measuring box) IP 40 Degree of protection Scope of delivery humimeter BMA BMA measuring box (12 litre) power supply unit 12 VDC, 4 A 2 pieces bucket, 13 litre Options determination of bulk density and bone dry weight (atro)
-
Page 16: Important! Please Read
!IMPORTANT! Please read Most common reasons for incorrect measurements • Product temperature out of application range Material below 0° C resp. above +50° C may cause faulty measurements. • Measuring material is frozen or mixed with snow In these cases the accuracy is decreasing heavily. •...
